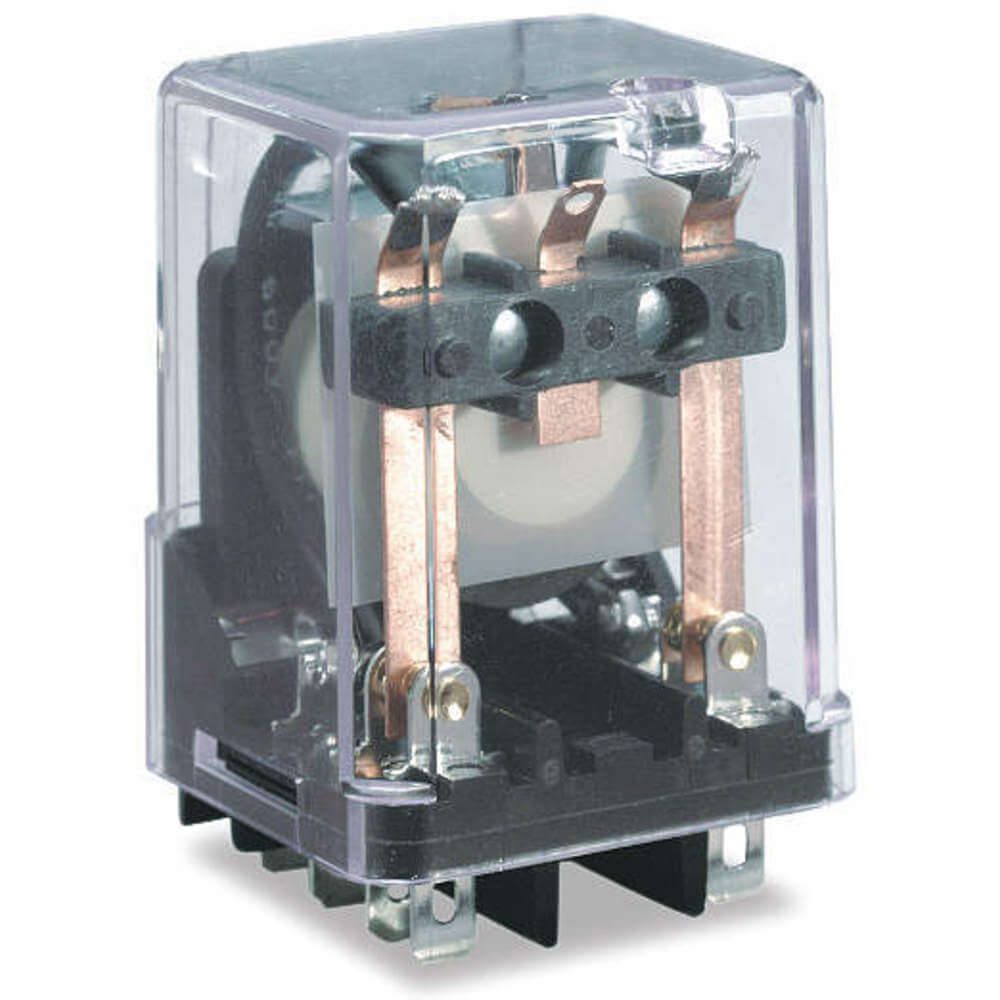

OMRON MJN2CF-AC24 Relay 8Pin DPDT 10A 24VAC
Item: AE7MMKModel: MJN2CF-AC24Cross Ref: 5ZH72
7 In Stock
Ships within 2 days via
10.00% off
€34.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps Rating | 10A |
| Base Shape | Octal |
| Body Depth | 1 2/5" , 1.9" |
| Body Height | 1 13/25" , 1.9" |
| Body Width | 1 2/5" , 1.53" |
| Coil Va Rating | 1.68 VA |
| Coil Voltage | 24V AC |
| Contact Form | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating | 10A @ 240V AC/28V DC |
| Contact Rating (ac) | 10A @ 240V, 10A @ 277V |
| Current Rating | 10A |
| Dc Contact Rating | 3A @ 600V, 10A @ 28V |
| Dielectric Strength | 2500V AC Mutually Insulated Elements, 750V AC Between Open Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | General Purpose Relays, Non-Latching |
| Hp @ 120v | 1/3 hp |
| Hp @ 240v | 1/2 hp |
| Insulation Resistance | 1000 M ohms |
| Maximum Switching Capacity | 1.7 VA |
| Mechanical Operating Durability | 10000000 |
| Motor Rating | Yes |
| Mounting | Side |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Overall Depth | 2.9" |
| Overall Height | 2.9" |
| Power Consumption | 1.7 VA |
| Power Consumption - Relay | 1.7 VA |
| Push-to-test Button | No Test Button |
| Relay Mounting | Side Flange |
| Relay Mounting Style | Surface (Side Flange) |
| Resistive Contact Amp Rating | 10A |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Series | MJN Series |
| Socket | None |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 3.81 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Variants
| Model | Mounting | Coil Voltage | Contact Form | Number Of Pins | Status Indicator | Coil Va Rating | Hp @ 120v | Hp @ 240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJN1CF-AC24 | Side Flange | 24V AC | SPDT | 5 | No | 1.7 VA | 1/3 hp | 1/2 hp | €48.25 | |
| MJN1CF-AC120 | Side Flange | 120V AC | SPDT | 5 | No | 1.7 VA | 1/3 hp | 1/2 hp | €49.89 | |
| MJN1CF-AC240 | Side Flange | 240V AC | SPDT | 5 | No | 1.7 VA | 1/3 hp | 1/2 hp | €47.32 | |
| MJN1Z-E-RP-DC12 | Side Flange | 12V DC | SPDT | 6 | No | 1.2 VA | 1 hp | 1 1/2 hp | €42.50 | |
| MJN1Z-E-RP-DC24 | Side Flange | 24V DC | SPDT | 6 | No | 1.2 VA | 1 hp | 1 1/2 hp | €46.13 | |
| MJN1Z-E-RP-AC24 | Side Flange | 24V AC | SPDT | 6 | No | 1.7 VA | 1 hp | 1 1/2 hp | €58.65 | |
| MJN1Z-E-RP-AC120 | Side | 120V AC | SPDT | 6 | No | 1.7 VA | 1 hp | 1 1/2 hp | €54.95 |
