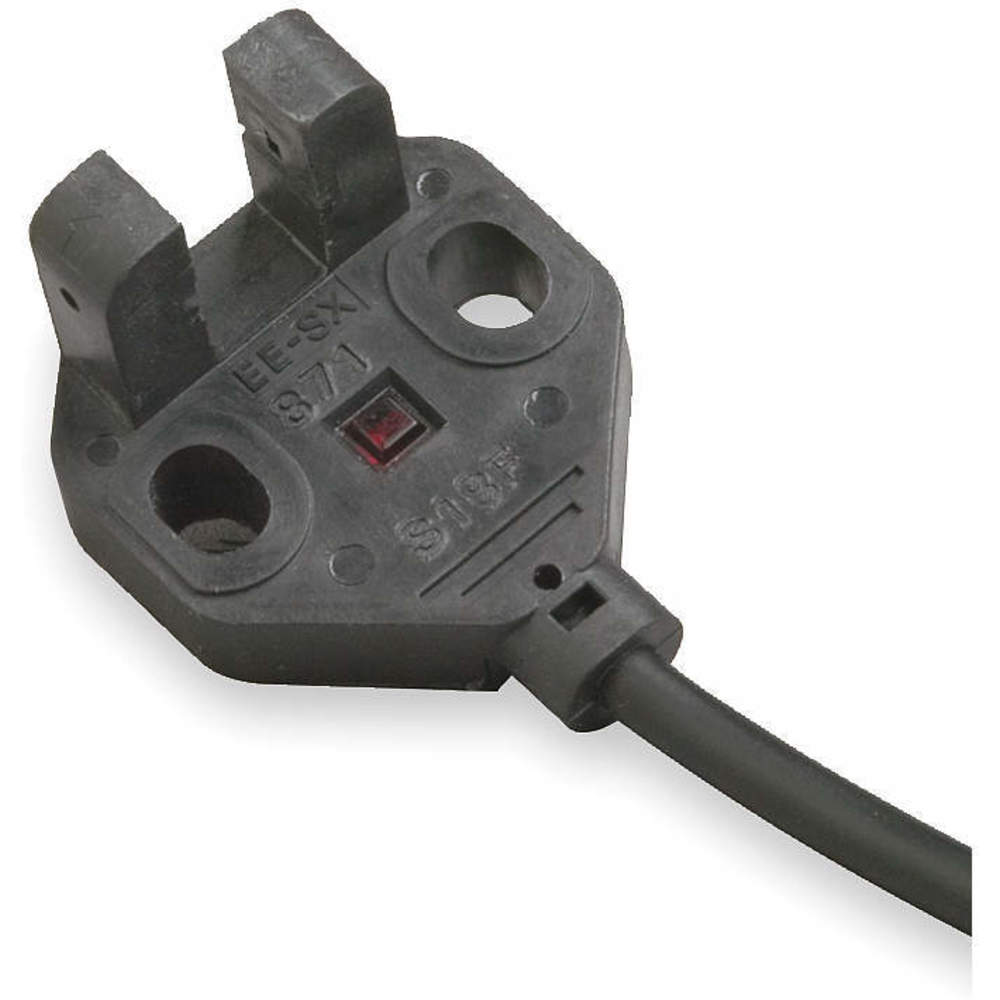

OMRON EE-SX871A Photoelectric Sensor 5mm Npn
Item: AC3XLKModel: EE-SX871ACross Ref: 2XEP3
7 In Stock
Ships within 2 days via
10.00% off
€88.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 5-24V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Features | Compact, Indicator |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP64 |
| Length | 0.83" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 5mm (0.2") |
| Min. Object Size | 2 x 0.8mm Opaque |
| Minimum Object Size | 2 mm x 0.8 mm Opaque |
| Operating Frequency | 1 Hz |
| Operating Mode | Light On |
| Operating Temp. Range | -25°C to +55°C |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 13 mm |
| Overall Height | 21 mm |
| Overall Width | 18 mm |
| Power Requirement | 5-24V DC |
| Response Time | 0.17 ms |
| Sensing Distance - Maximum | 5 mm |
| Sensing Method | Through Beam |
| Sensor Body Style | L Slot |
| Sensor Cable Length | 2m |
| Sensor Switching Mode | Light On |
| Series | SX87 Series |
| Shape | L Slot |
| Supply Voltage | 5-24V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 3 kHz |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter And Receiver Set |
| Width | 0.54" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 15.24 |
| HS code | 8541408000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Sensing Method | Ip Rating | Max. Sensing Distance | Body Material | Operating Mode | Depth | Response Time | Light Source | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE-SX470 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €61.67 | |
 |
EE-SX471 | Through Beam | IP50 | 5 mm | PBT | Light On | 16 mm | 0.17 ms | Infrared LED | €58.90 | |
 |
EE-SX472 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €66.44 | |
 |
EE-SX473 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €78.71 | |
 |
EE-SX474 | Through Beam | IP50 | 5 mm | PBT | Light On | 15 mm | 0.17 ms | Infrared LED | €91.71 | |
 |
EE-SX670 | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €54.61 | |
|
EE-SX670A | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €62.56 |
