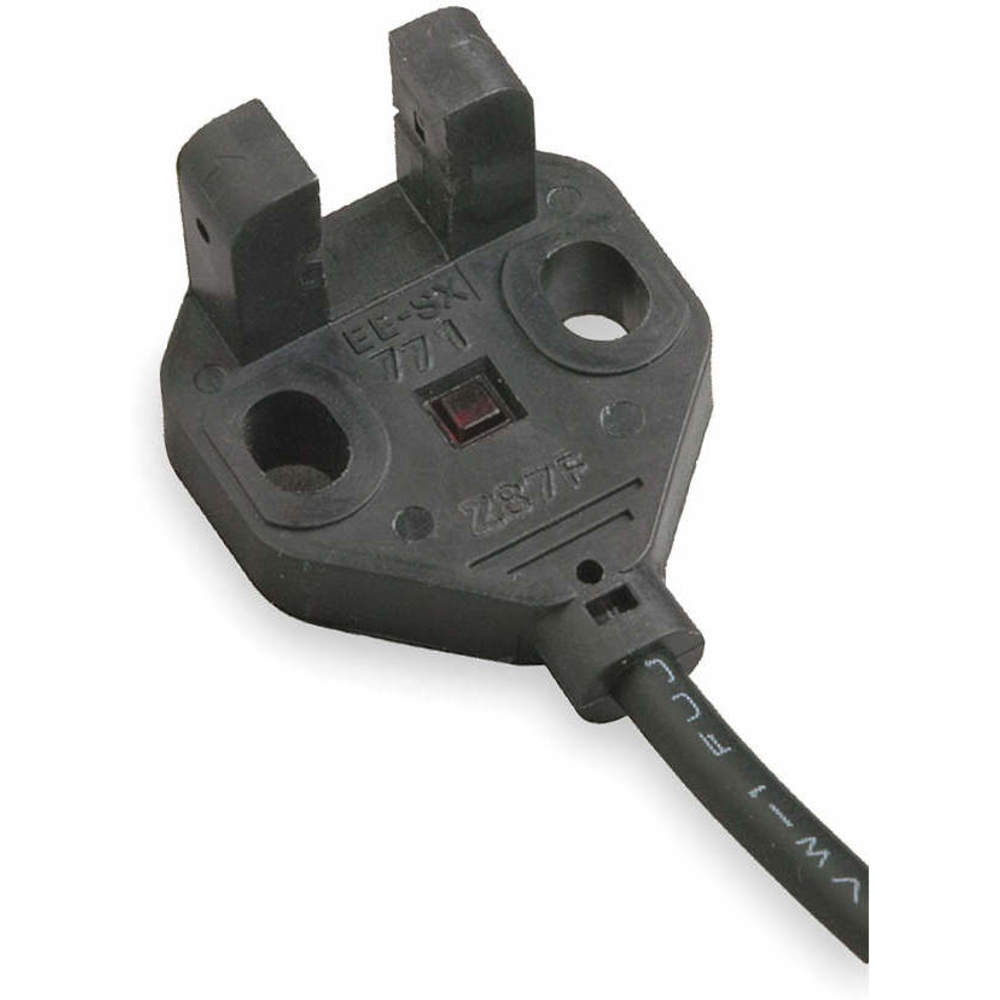

OMRON EE-SX771P Photoelectric Sensor 5mm Pnp
Item: AC3XKXModel: EE-SX771PCross Ref: 2XEL8
7 In Stock
Ships within 2 days via
10.00% off
€68.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 5-24V DC |
| Depth | 13 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Features | Compact, Indicator |
| Footnotes | 4 |
| Height | 21 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP64 |
| Length | 0.83" |
| Light Source | Infrared LED |
| Max. Load Amps | 50 mA |
| Max. Load Current | 50mA |
| Max. Sensing Distance | 5mm (0.2") |
| Max. Sensing Distance | 5 mm |
| Min. Object Size | 2 x 0.8mm Opaque |
| Minimum Object Size | 2 mm x 0.8 mm Opaque |
| Operating Frequency | 1 Hz |
| Operating Mode | Dark On |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Type | PNP |
| Overall Depth | 13 mm |
| Overall Height | 21 mm |
| Overall Width | 18 mm |
| Power Requirement | 5-24V DC |
| Response Time | 0.17 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | L Slot |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Dark On |
| Series | EE-SX77 Series |
| Shape | T Slot |
| Supply Voltage | 5-24V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 3 kHz |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter And Receiver Set |
| Width | 14 mm |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 15.24 |
| HS code | 8541408000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Body Material | Sensing Method | Max. Sensing Distance | Ip Rating | Depth | Max. Load Amps | Operating Mode | Response Time | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E3Z-D81 | PBT | Diffuse | 100 mm | IP67 | 20 mm | 100 mA | Selectable Light On/Dark On | 1 ms | €253.11 | |
|
E3Z-D82 | PBT | Diffuse | 1m | IP67 | 20 mm | 100 mA | Selectable Light On/Dark On | 1 ms | €258.50 | |
|
E3Z-R81 | PBT | Retroreflective | 100 mm | IP67 | 20 mm | 100 mA | Selectable Light On/Dark On | 1 ms | €271.56 | |
|
E3Z-T81 | PBT | Through Beam | 15m | IP67 | 20 mm | 100 mA | Selectable Light On/Dark On | 1 ms | €302.22 | |
 |
E3Z-LS81 | PBT | Diffuse | 200 mm | IP67 | 20 mm | 100 mA | Selectable Light On/Dark On | 1 ms | €359.04 | |
 |
E3X-MDA41 | PBT | - | - | IP50 | 2 3/4" | 50 mA | Dark On, Selectable Light | 0.13 ms | €741.83 | |
 |
E3T-ST14 | PBT | Through Beam | 1m | IP67 | 9 mm | 50 mA | Dark On | 1 ms | €305.80 |
