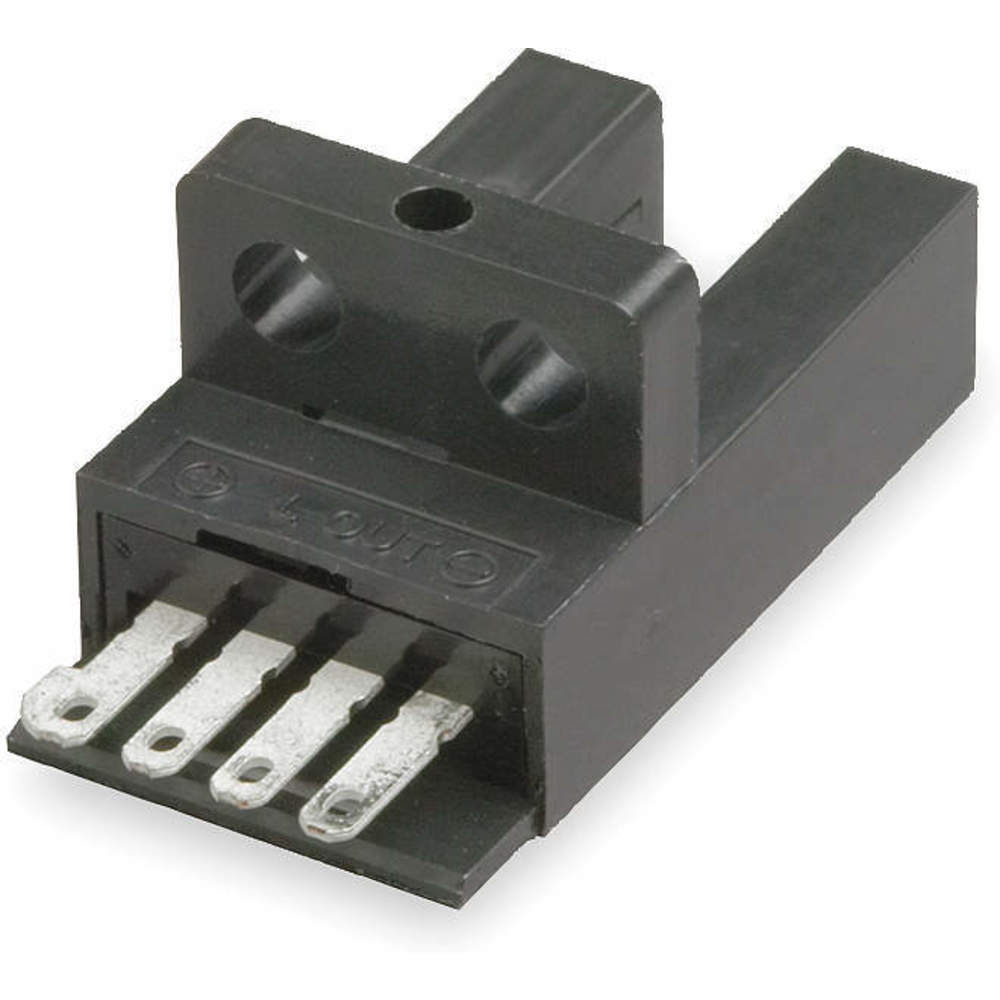

OMRON EE-SX673 Photoelectric Sensor 5mm Npn
Item: AC3NMGModel: EE-SX673Cross Ref: 2UYA5
7 In Stock
Ships within 2 days via
5.00% off
€50.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 5-24V DC |
| Depth | 28 mm |
| Display Qty | 1 |
| Electrical Connection | Spade |
| Electrical Installation Type | Solder Terminal |
| Emitted Sensor Light | Infrared |
| Features | Output Short Cut Protection |
| Height | 13 mm |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP50 |
| Length | 0.53" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 5mm (0.2") |
| Max. Sensing Distance | 5 mm |
| Min. Object Size | 2 mm x 0.8 mm Opaque |
| Min. Object Size | 2 x 0.8mm Opaque |
| Min. Operating Temp. | -13°F |
| Operating Frequency | 1 kHz |
| Operating Mode | Selectable Light On/Dark On |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 28 mm |
| Overall Height | 13 mm |
| Overall Width | 13 mm |
| Power Requirement | 5-24V DC |
| Response Time | 0.17 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | Close Mounting |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | SX67 Series |
| Shape | L Close Slot |
| Supply Voltage | 5-24V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 3 kHz |
| Through Beam Sensor Component | Photoelectric Sensor |
| Width | 6 mm |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 0.76 |
| HS code | 8541408000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Electrical Connection | Min. Object Size | Shape | Operating Mode | Max. Sensing Distance | Sensing Method | Power Requirement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE-SX470 | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Light On | 5 mm | Through Beam | 5-24V DC | €61.67 | |
 |
EE-SX471 | 26 mm | Spade | 2 mm x 0.8 mm Opaque | L Slot | Light On | 5 mm | Through Beam | 5-24V DC | €58.90 | |
 |
EE-SX472 | 26 mm | Spade | 2 mm x 0.8 mm Opaque | T Slot | Light On | 5 mm | Through Beam | 5-24V DC | €66.44 | |
 |
EE-SX473 | - | Spade | 2 mm x 0.8 mm Opaque | L Close Slot | Light On | 5 mm | Through Beam | 5-24V DC | €78.71 | |
 |
EE-SX474 | 13 mm | Spade | 2 mm x 0.8 mm Opaque | T Slot | Light On | 5 mm | Through Beam | 5-24V DC | €91.71 | |
 |
EE-SX670 | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Selectable Light On/Dark On | 5 mm | Through Beam | 5-24V DC | €54.61 | |
|
EE-SX670A | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Selectable Light On/Dark On | 5 mm | Through Beam | 5-24V DC | €62.56 |
