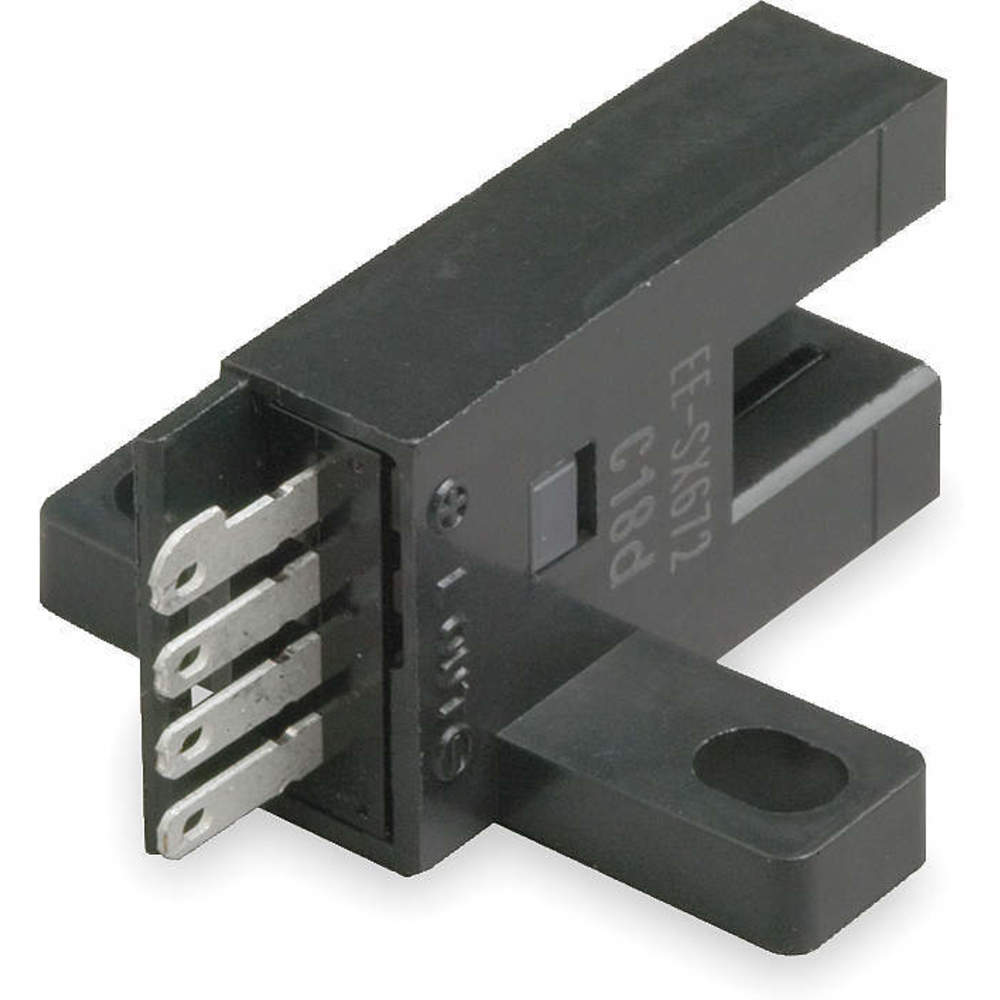

OMRON EE-SX672A Photoelectric Sensor 5mm Npn
Item: AC3NMEModel: EE-SX672ACross Ref: 2UYA3
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 5-24V DC |
| Depth | 28 mm |
| Display Qty | 1 |
| Electrical Connection | Spade |
| Electrical Installation Type | Solder Terminal |
| Emitted Sensor Light | Infrared |
| Features | Output Short Cut Protection |
| Height | 26 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP50 |
| Length | 1.02" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 5mm (0.2") |
| Max. Sensing Distance | 5 mm |
| Min. Object Size | 2 x 0.8mm Opaque |
| Minimum Object Size | 2 mm x 0.8 mm Opaque |
| Operating Frequency | 1 kHz |
| Operating Mode | Selectable Light On/Dark On |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 28 mm |
| Overall Height | 26 mm |
| Overall Width | 19 mm |
| Power Requirement | 5-24V DC |
| Response Time | 0.17 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | T Slot |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | EE-SX67 Series |
| Shape | T Slot |
| Supply Voltage | 5-24V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 3 kHz |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter And Receiver Set |
| Width | 19 mm |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 7.62 |
| HS code | 8541408000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Sensing Method | Ip Rating | Max. Sensing Distance | Body Material | Operating Mode | Depth | Response Time | Light Source | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE-SX470 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €61.67 | |
 |
EE-SX471 | Through Beam | IP50 | 5 mm | PBT | Light On | 16 mm | 0.17 ms | Infrared LED | €58.90 | |
 |
EE-SX472 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €66.44 | |
 |
EE-SX473 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €78.71 | |
 |
EE-SX474 | Through Beam | IP50 | 5 mm | PBT | Light On | 15 mm | 0.17 ms | Infrared LED | €91.71 | |
 |
EE-SX670 | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €54.61 | |
|
EE-SX670A | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €62.56 |
