OMRON E3Z-D61 Photoelectric Sensor Diffuse 4 Inch Npn
Item: AA9LBWModel: E3Z-D61Cross Ref: 1DU40
7 In Stock
Ships within 2 days via
5.00% off
€203.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 12-24V DC |
| Depth | 20 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Features | Wide Beam |
| Footnotes | 4 |
| Height | 30 mm |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 1 1/5" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 4" |
| Max. Sensing Distance | 100 mm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 5 mm |
| Operating Mode | Selectable Light On/Dark On |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 20 mm |
| Overall Height | 31 mm |
| Overall Width | 11 mm |
| Power Requirement | 12-24V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 1 ms |
| Sensing Method | Diffuse |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | E3Z Series |
| Shape | Rectangular |
| Supply Voltage | 12-24V DC |
| Supply Voltage Type | Dc Only |
| Width | 10 mm |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.43 |
| HS code | 8541408000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Depth | Max. Sensing Distance | Sensing Method | Power Requirement | Light Source | Supply Voltage | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

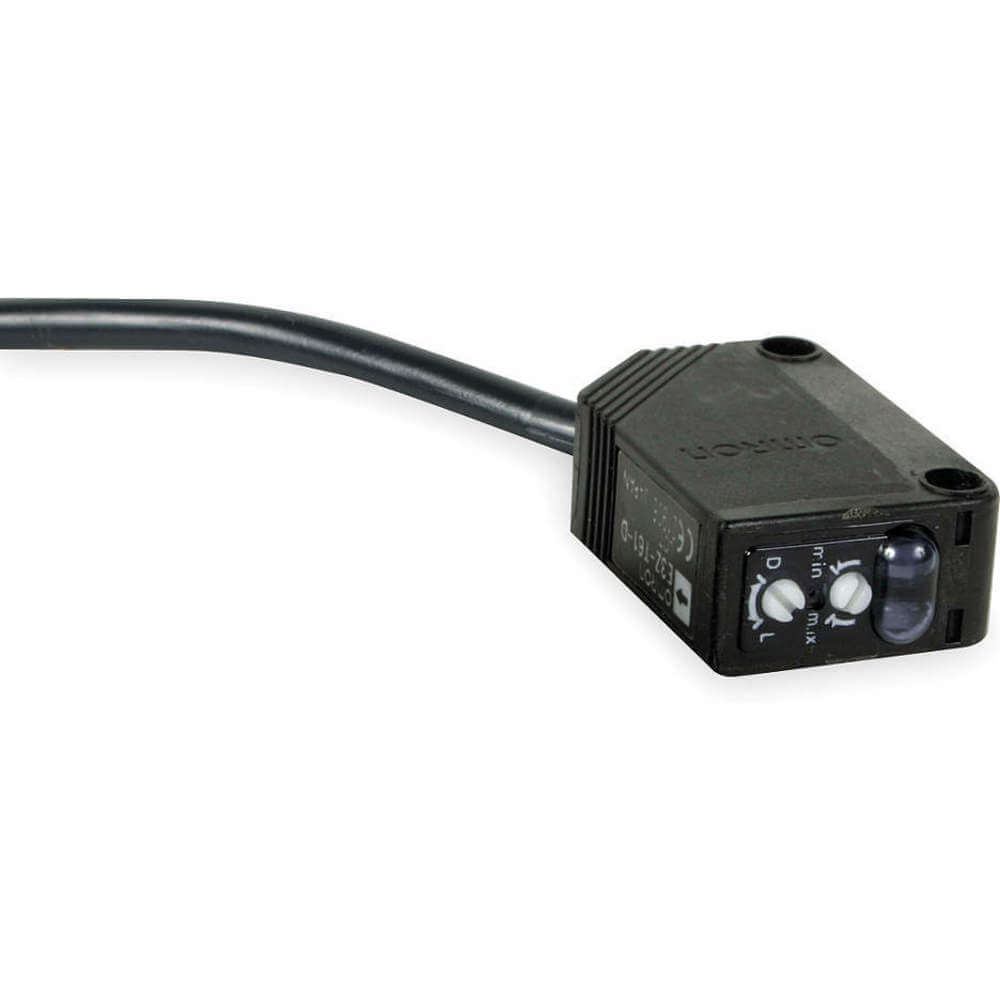

E3Z-T61 | 30 mm | 20 mm | 15m | Through Beam | 12-24V DC | Infrared LED | 12-24V DC | 31 mm | €293.69 | |
|
E3Z-R61 | 30 mm | 20 mm | 4m | Retroreflective | 12-24V DC | LED | 12-24V DC | 31 mm | €249.07 | |
|
E3Z-D62 | 30 mm | 20 mm | 1m | Diffuse | 12-24V DC | Infrared LED | 12-24V DC | 31 mm | €240.38 | |
 |
E3Z-LS61 | 30 mm | 20 mm | 200 mm | Diffuse | 12-24V DC | LED | 12-24V DC | 31 mm | €365.34 | |
 |

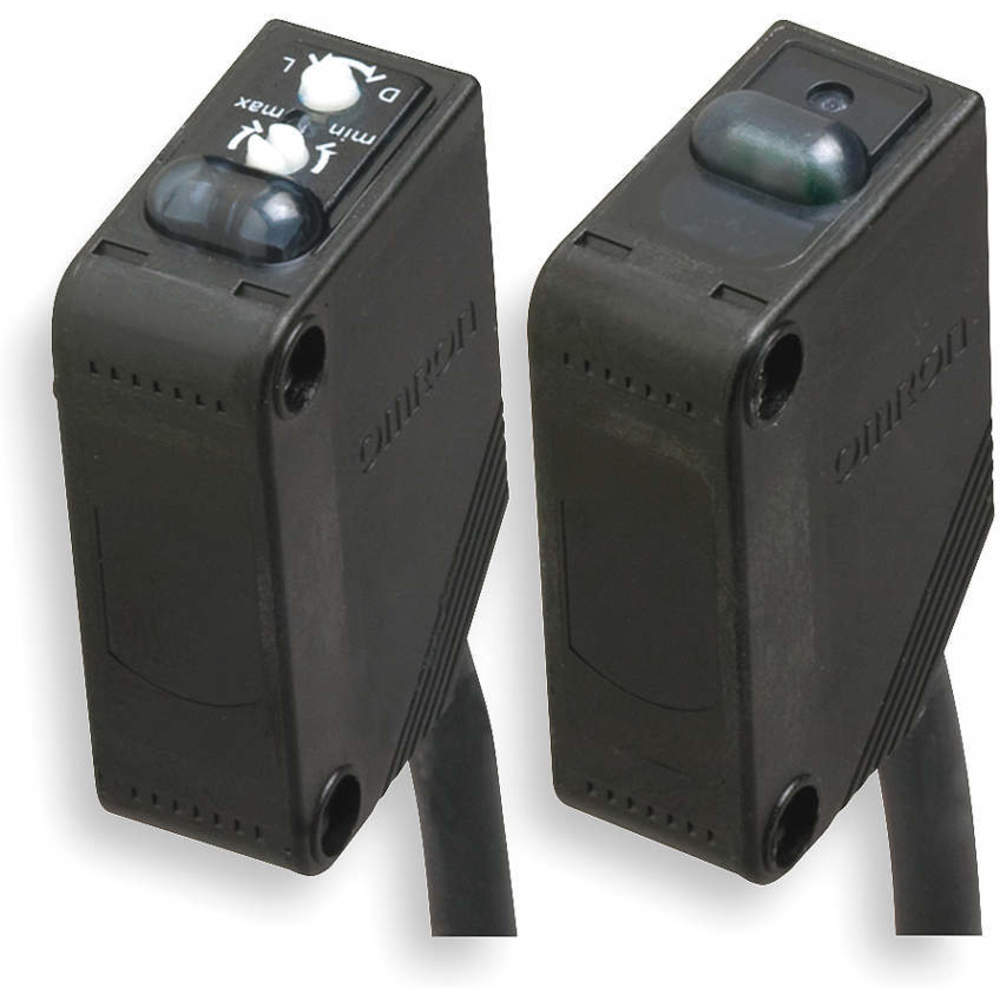

E3Z-T61K 2M | 31 mm | 20 mm | 15m | Through Beam | 12-24V DC | Infrared LED | 12-24V DC | 31 mm | €420.26 | |
 |

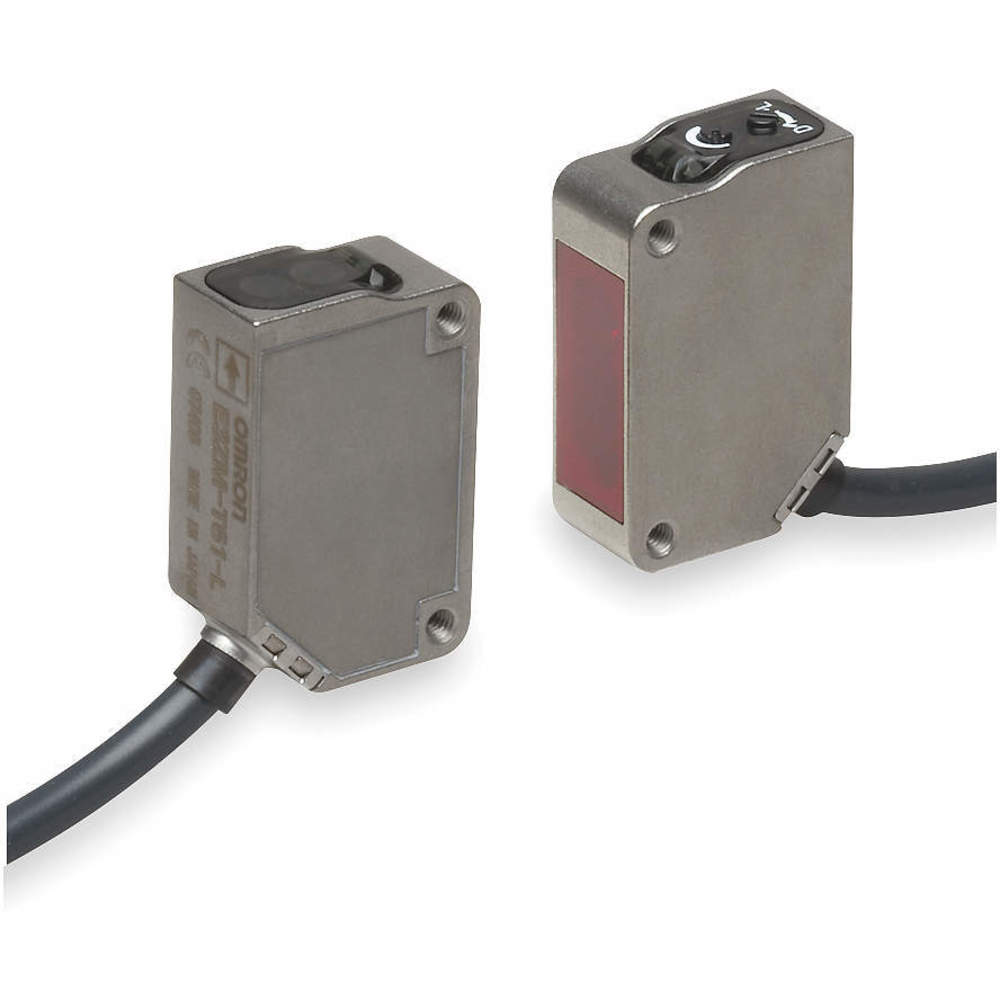

E3ZM-T61 2M | 32 mm | 21 mm | 15m | Through Beam | 10-30V DC | Infrared LED | 10-30V DC | 32 mm | €703.14 | |
 |

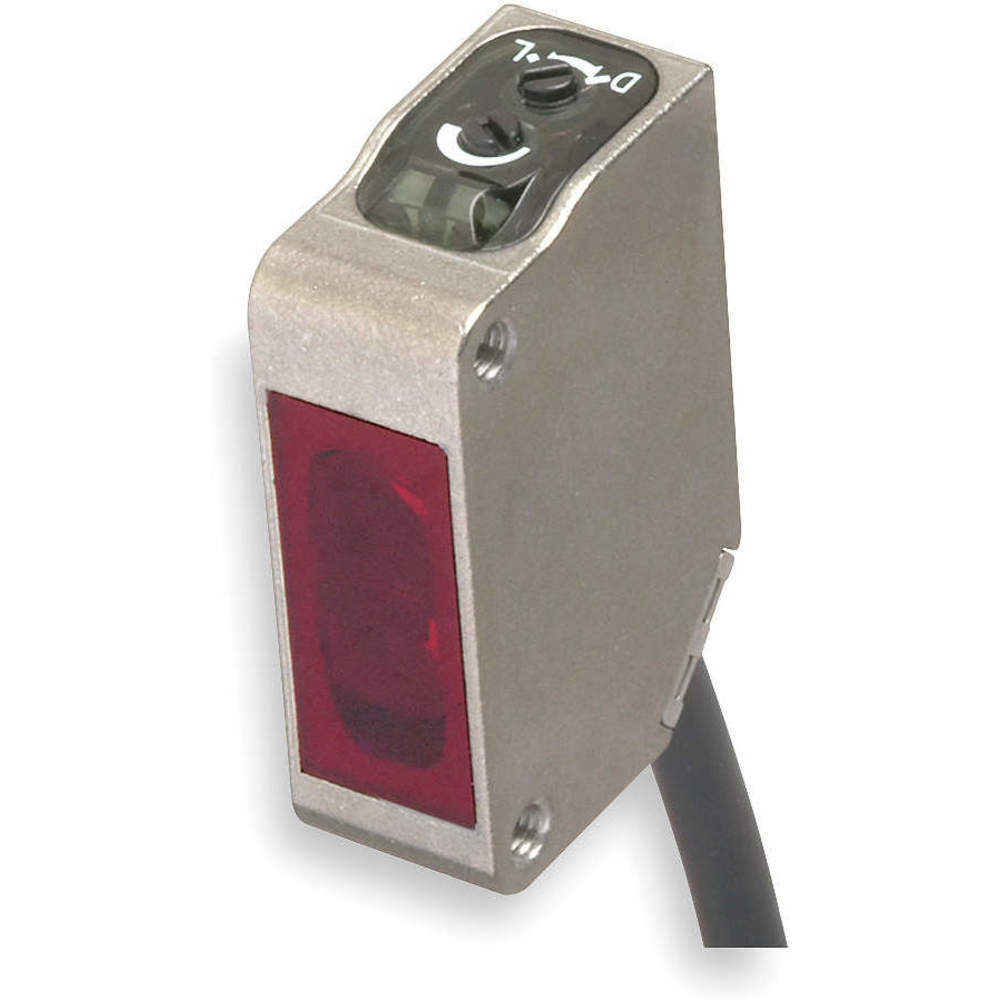

E3ZM-R61 2M | 32 mm | 21 mm | 4m | Retroreflective | 10-30V DC | LED | 10-30V DC | 32 mm | €493.92 |
