OMRON E3T-FT12 Photoelectric Sensor 19.68 Inch Npn
Item: AC3MVTModel: E3T-FT12Cross Ref: 2UUL9
7 In Stock
Ships within 2 days via
10.00% off
€252.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 12-24V DC |
| Depth | 4 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Features | Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor |
| Footnotes | 4 |
| Height | 19 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 3/4" |
| Light Source | Red LED |
| Max. Load Amps | 50 mA |
| Max. Load Current | 50mA |
| Max. Sensing Distance | 500 mm |
| Max. Sensing Distance | 19.68" |
| Min. Object Size | 1.3mm Dia. Opaque |
| Minimum Object Size | 1.3 mm Dia. Opaque |
| Operating Mode | Dark On |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 4 mm |
| Overall Height | 19 mm |
| Overall Width | 12 mm |
| Power Requirement | 12-24V DC |
| Response Time | 1 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Dark On |
| Series | E3T Series |
| Shape | Rectangular |
| Supply Voltage | 12-24V DC |
| Supply Voltage Type | Dc Only |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter And Receiver Set |
| Width | 12 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 16.51 |
| HS code | 8541408000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Sensing Method | Max. Sensing Distance | Operating Mode | Depth | Ip Rating | Body Material | Circuit Type | Response Time | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

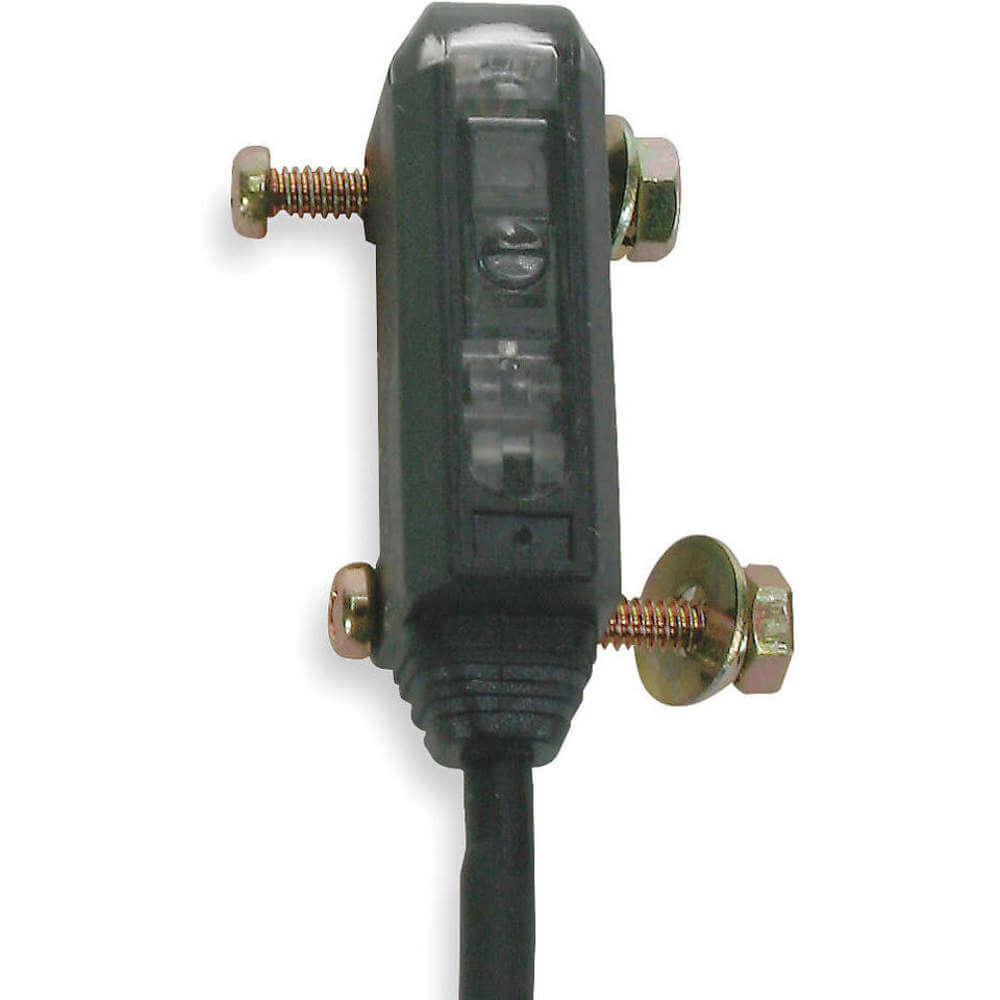

E3T-SL11 | Diffuse | - | Light On | 11 mm | IP67 | - | NPN | 1 ms | €339.04 | |
|
E3T-SL12 | Diffuse | 15 mm | Dark On | 11 mm | IP67 | PBT | NPN | 1 ms | €306.41 | |
 |

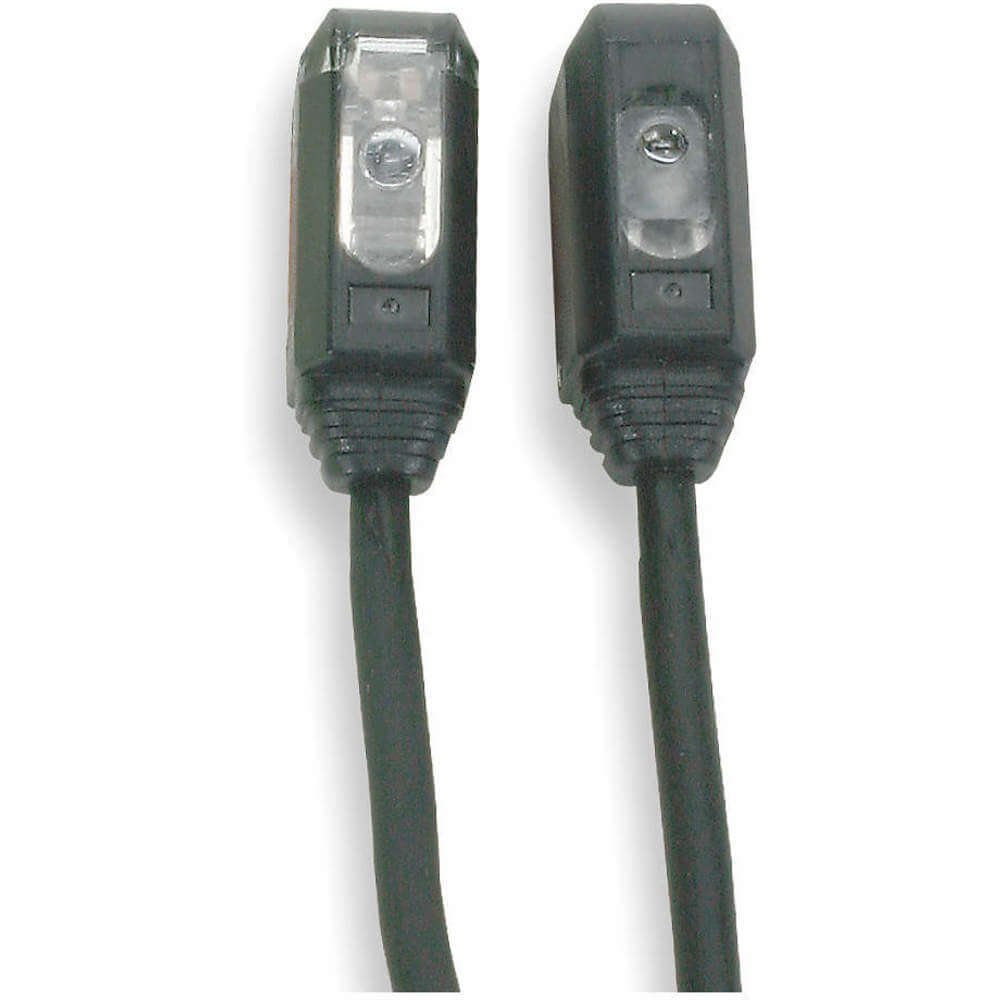

E3T-ST11 | Through Beam | 1m | Light On | 9 mm | IP67 | PBT | NPN | 1 ms | €257.73 | |
|
E3T-ST12 | Through Beam | 1m | Dark On | 9 mm | IP67 | PBT | NPN | 1 ms | €283.28 | |
|
E3T-FT11 | Through Beam | 500 mm | Light On | 4 mm | IP67 | PBT | NPN | 1 ms | €285.91 | |
 |

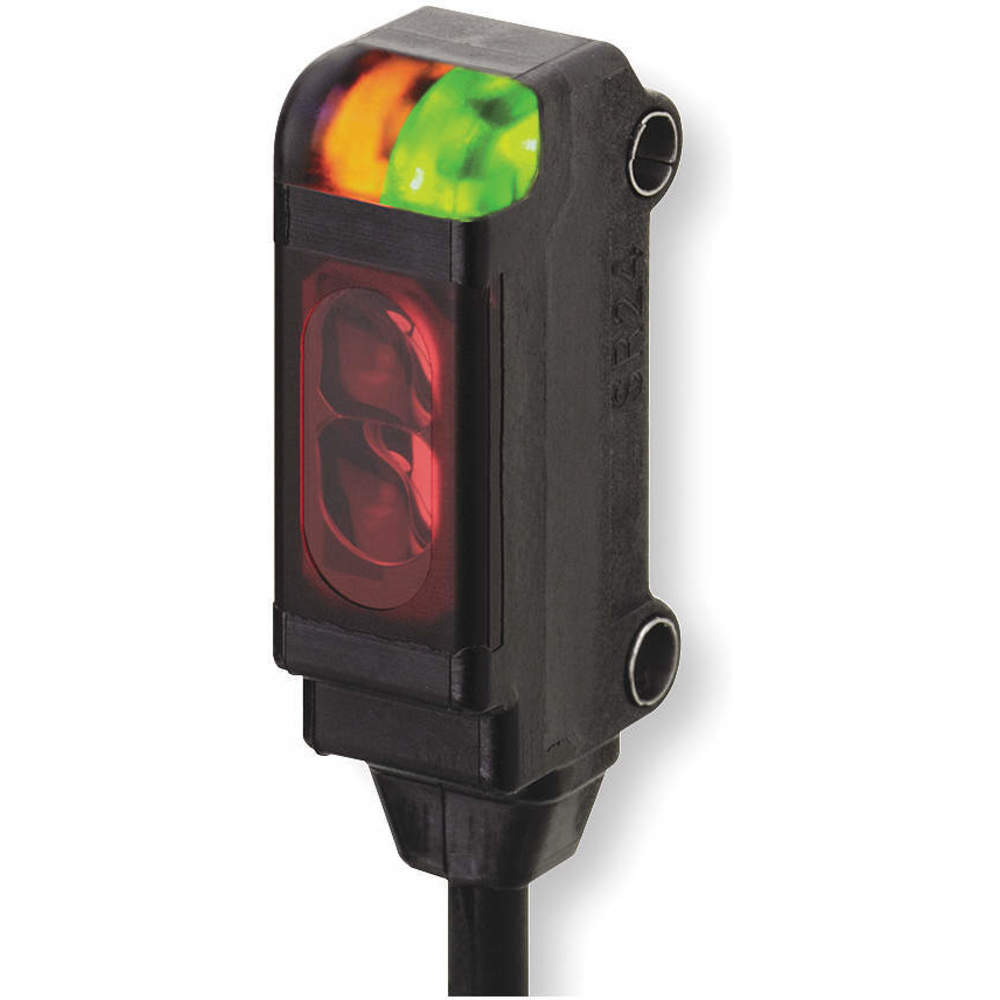

E3T-SR21 2M | Retroreflective | 200 mm | Light On | 11 mm | IP67 | PBT | NPN | 1 ms | €285.62 | |
|
E3T-SR22 2M | Retroreflective | 200 mm | Dark On | 11 mm | IP67 | PBT | NPN | 1 ms | €280.24 |
