OMRON E3SCT11 Mini Photoelectric Sensor 98.4ft Npn/pnp
Item: AE7ZLQModel: E3SCT11Cross Ref: 6C770
7 In Stock
Ships within 2 days via
10.00% off
€627.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Photoelectric Sensor |
| Body Material | Zinc |
| Circuit Type | NPN/PNP |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 50 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Features | Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor |
| Height | 20 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 4/5" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 98.4 ft. |
| Max. Sensing Distance | 30m |
| Min. Object Size | 15mm Dia. Opaque |
| Min. Object Size | 15 mm |
| Minimum Object Size | 15 mm Dia. Opaque |
| Nema Enclosure Rating | NEMA 6P |
| Operating Mode | Selectable Light On/Dark On |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 50 mm |
| Overall Height | 20 mm |
| Overall Width | 23 mm |
| Power Requirement | 10-30V DC |
| Response Time | 1 ms |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Straight |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | E3S-C Series |
| Shape | Rectangular |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter And Receiver Set |
| Width | 23 mm |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 7.37 |
| HS code | 8541408000 |
| Country of Origin | JP |
Product Variants
| Model | Sensing Method | Max. Sensing Distance | Operating Mode | Light Source | Depth | Ip Rating | Body Material | Circuit Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E3SCD11 | Diffuse | 2.25 ft. | Dark On, Selectable Light | Infrared LED | 1.97" | IP67 | Zinc | NPN/PNP | €611.09 | |

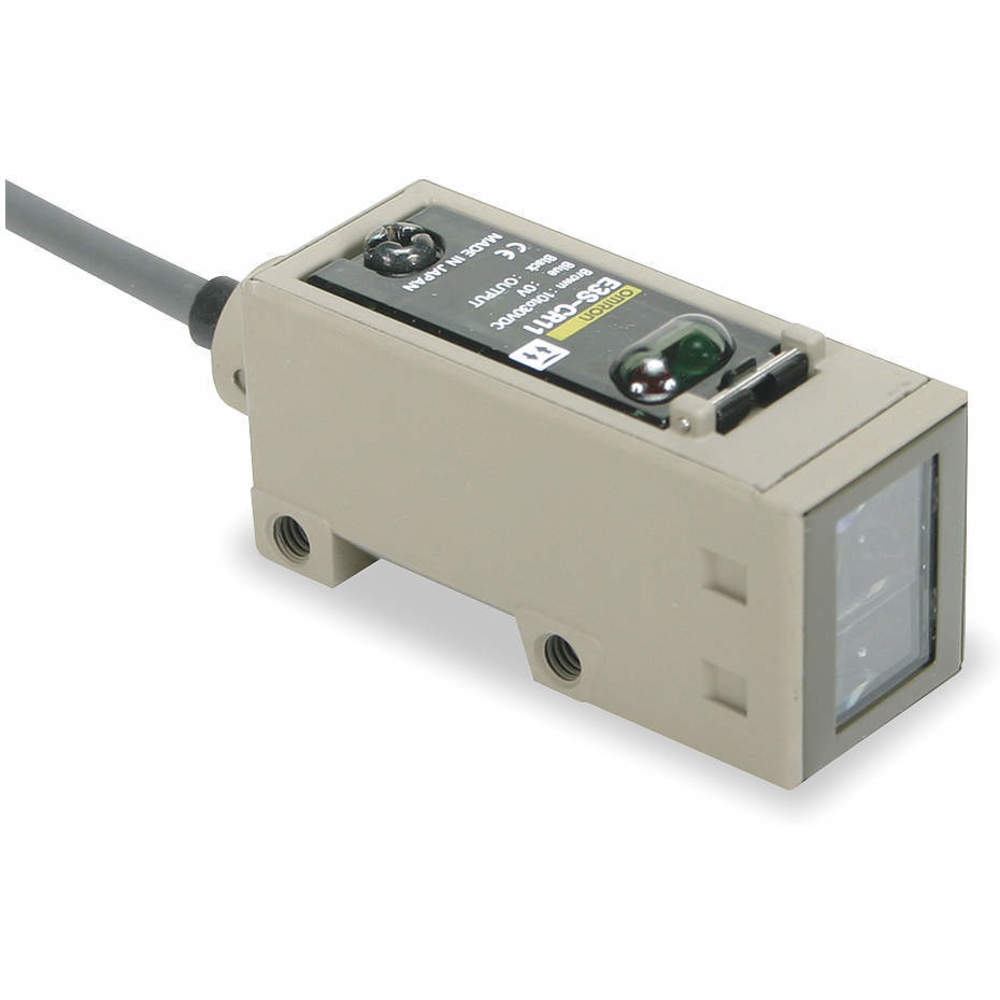

| E3SCR11 | Retroreflective | 3m | Selectable Light On/Dark On | LED | 50 mm | IP67 | Zinc | NPN/PNP | €608.32 | |
| E3SCD61 | Diffuse | 2.25 ft. | Dark On, Selectable Light | Infrared LED | - | IP67 | Zinc | NPN/PNP | €617.43 | |
| E3SCT61 | Through Beam | 30m | Selectable Light On/Dark On | Infrared LED | 57 mm | IP67 | Zinc | NPN/PNP | €714.22 |
