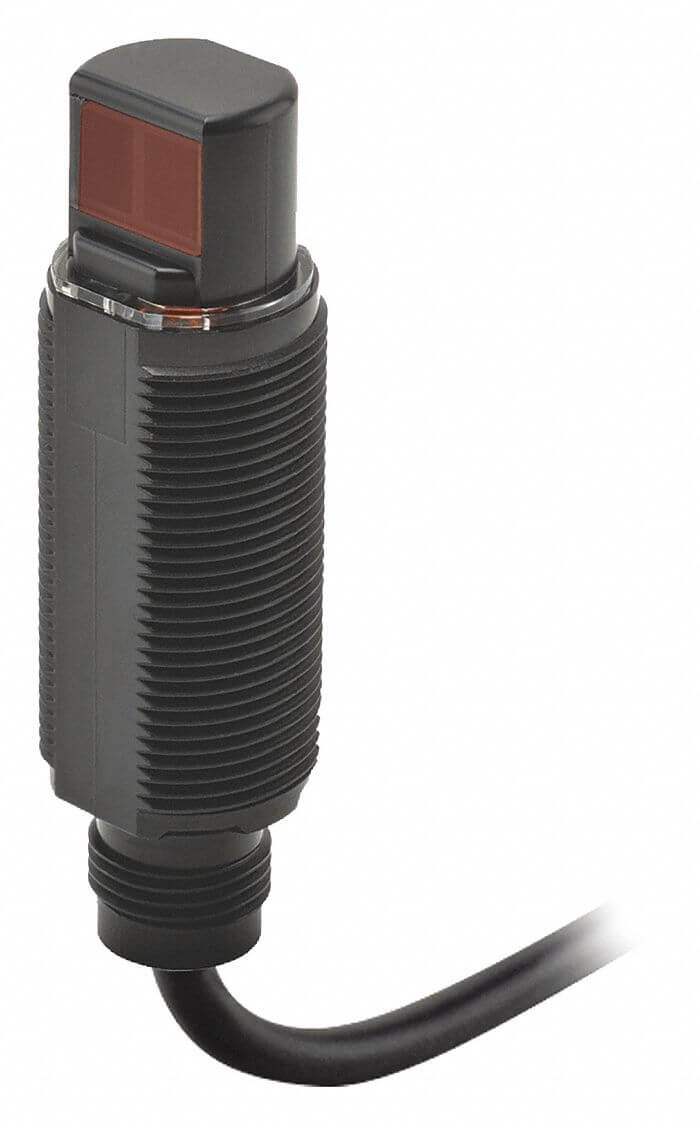

OMRON E3RA-RN21 Photoelectric Sensor Npn 13 Feet Ip69k
Item: AF6YVCModel: E3RA-RN21Cross Ref: 20RD68
7 In Stock
Ships within 2 days via
5.00% off
€201.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Plastic |
| Circuit Type | NPN |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 58 mm |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 3 1/4" |
| Dia. | 18 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Features | Mirror Surface Rejection (MSR) |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Length | 58 mm |
| Light Source | Red LED |
| Light Source | LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 13 ft. |
| Max. Sensing Distance | 13 ft. , 3m |
| Min. Object Size | 75mm Dia. Opaque |
| Min. Object Size | 75 mm Dia. Opaque |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 100 mm |
| Nema Rating | IP69K |
| No. Of Pins | 4 |
| Nominal Sensor Dia. | M18 Threaded |
| Operating Mode | Dark On, Selectable Light |
| Operating Temp. | -25°C to +55°C |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Height | 58 mm |
| Power Requirement | 5-30V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 0.5 ms |
| Sensing Method | Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Connector Type | 4 Pin M12 |
| Sensor Dia. | 17 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | E3RA Series |
| Shape | Cylindrical |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 1.91 |
| HS code | 8541408000 |
Product Variants
| Product | Model | Height | Electrical Connection | Min. Object Size | Shape | Operating Mode | Max. Sensing Distance | Sensing Method | Power Requirement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE-SX470 | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Light On | 5 mm | Through Beam | 5-24V DC | €61.67 | |
 |
EE-SX471 | 26 mm | Spade | 2 mm x 0.8 mm Opaque | L Slot | Light On | 5 mm | Through Beam | 5-24V DC | €58.90 | |
 |
EE-SX472 | 26 mm | Spade | 2 mm x 0.8 mm Opaque | T Slot | Light On | 5 mm | Through Beam | 5-24V DC | €66.44 | |
 |
EE-SX473 | - | Spade | 2 mm x 0.8 mm Opaque | L Close Slot | Light On | 5 mm | Through Beam | 5-24V DC | €78.71 | |
 |
EE-SX474 | 13 mm | Spade | 2 mm x 0.8 mm Opaque | T Slot | Light On | 5 mm | Through Beam | 5-24V DC | €91.71 | |
 |
EE-SX670 | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Selectable Light On/Dark On | 5 mm | Through Beam | 5-24V DC | €54.61 | |
|
EE-SX670A | 25 mm | Spade | 2 mm x 0.8 mm Opaque | Standard Slot | Selectable Light On/Dark On | 5 mm | Through Beam | 5-24V DC | €62.56 |
