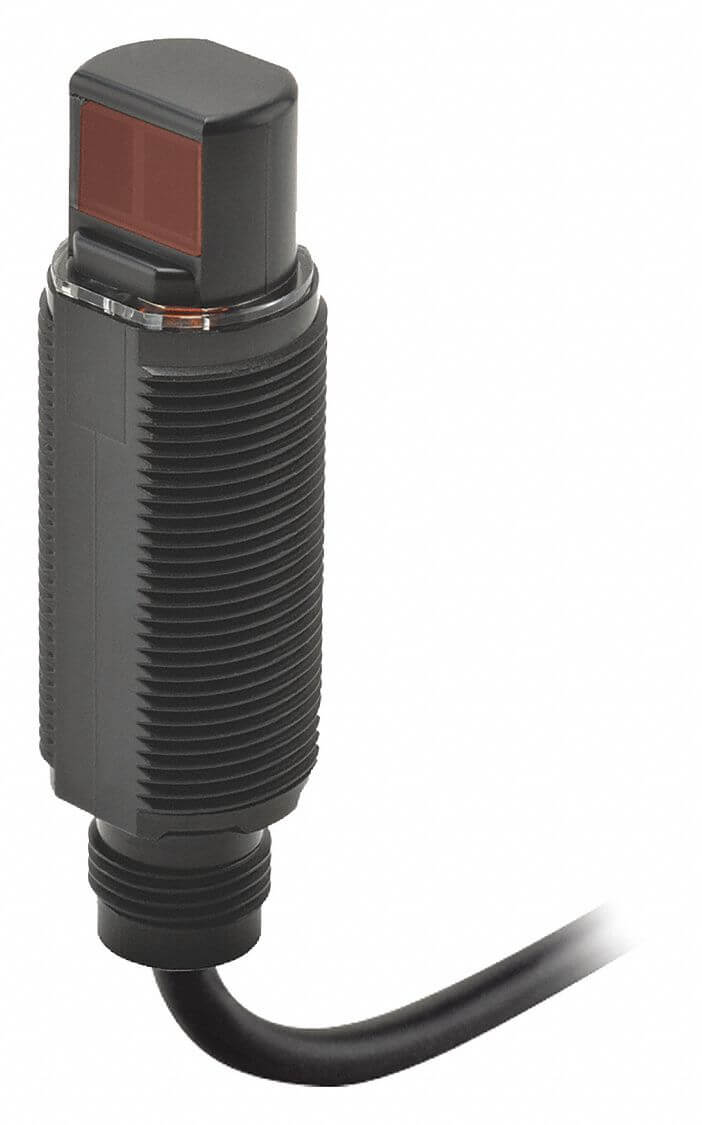

OMRON E3RA-RN112M Photoelectric Sensor Npn 13 Feet Ip69k
Item: AF6YVBModel: E3RA-RN112MCross Ref: 20RD67
7 In Stock
Ships within 2 days via
10.00% off
€180.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Plastic |
| Circuit Type | NPN |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 54 mm |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 3 1/4" |
| Diameter | 18 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Red Light |
| Features | Mirror Surface Rejection (MSR) |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Length | 58 mm |
| Light Source | Red LED |
| Light Source | LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 13 ft. |
| Min. Object Size | 75mm Dia. Opaque |
| Minimum Object Size | 75 mm Dia. Opaque |
| Nema Rating | IP69K |
| Nominal Sensor Diameter | M18 Threaded |
| Operating Mode | Dark On, Selectable Light |
| Operating Temp. Range | -25°C to +55°C |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Height | 54 mm |
| Power Requirement | 5-30V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 0.5 ms |
| Sensing Distance - Max. | 3m |
| Sensing Distance - Minimum | 100 mm |
| Sensing Method | Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 17 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | E3RA Series |
| Shape | Cylindrical |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 1.91 |
| HS code | 8541408000 |
Product Variants
| Product | Model | Sensing Method | Ip Rating | Max. Sensing Distance | Body Material | Operating Mode | Depth | Response Time | Light Source | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EE-SX470 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €61.67 | |
 |
EE-SX471 | Through Beam | IP50 | 5 mm | PBT | Light On | 16 mm | 0.17 ms | Infrared LED | €58.90 | |
 |
EE-SX472 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €66.44 | |
 |
EE-SX473 | Through Beam | IP50 | 5 mm | PBT | Light On | 28 mm | 0.17 ms | Infrared LED | €78.71 | |
 |
EE-SX474 | Through Beam | IP50 | 5 mm | PBT | Light On | 15 mm | 0.17 ms | Infrared LED | €91.71 | |
 |
EE-SX670 | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €54.61 | |
|
EE-SX670A | Through Beam | IP50 | 5 mm | PBT | Selectable Light On/Dark On | 28 mm | 0.17 ms | Infrared LED | €62.56 |
