OMRON E2E2-X5Y2 Proximity Sensor Inductive 18mm Nc
Item: AE7ZLYModel: E2E2-X5Y2Cross Ref: 6C800
7 In Stock
Ships within 2 days via
10.00% off
€288.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | 20-264V AC |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Finish | Nickel Plated |
| Case Material | Nickel Plated Brass |
| Circuit Type | 2 Wire |
| Dc Supply Voltage Rating | Not Rated |
| Detecting Distance | 5mm |
| Detecting Distance | 5 mm |
| Diameter | 18 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Cable Protector Provided, Increased Tightening Strength, Milled Section For Wrench Grip |
| Includes | Instruction Manual |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 65 mm |
| Max. Current Load | 300mA |
| Max. Detecting Distance | 5 mm |
| Max. Load Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Wires | 2 |
| Operating Frequency | 25 Hz |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | 2 Wire AC |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 300 mA |
| Output Circuit Current - Minimum | 5 mA |
| Output Circuit Type | AC-Type |
| Output Mode | NC |
| Overall Height | 60 mm |
| Power Required | 24-240V |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 18 mm |
| Proximity Sensor Operating Frequency | 25 Hz |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 18 mm |
| Series | E2E2 Series |
| Shielded / Unshielded | Shielded |
| Supply Voltage | 20-264V AC |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 11.18 |
| HS code | 8536507000 |
| Country of Origin | JP |
Product Details:
- Special Features: LED Indicator
Product Variants
| Model | Max. Detecting Distance | Output Mode | Shielded / Unshielded | Diameter | Proximity Sensor Dia. | Max. Load Current | Circuit Type | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

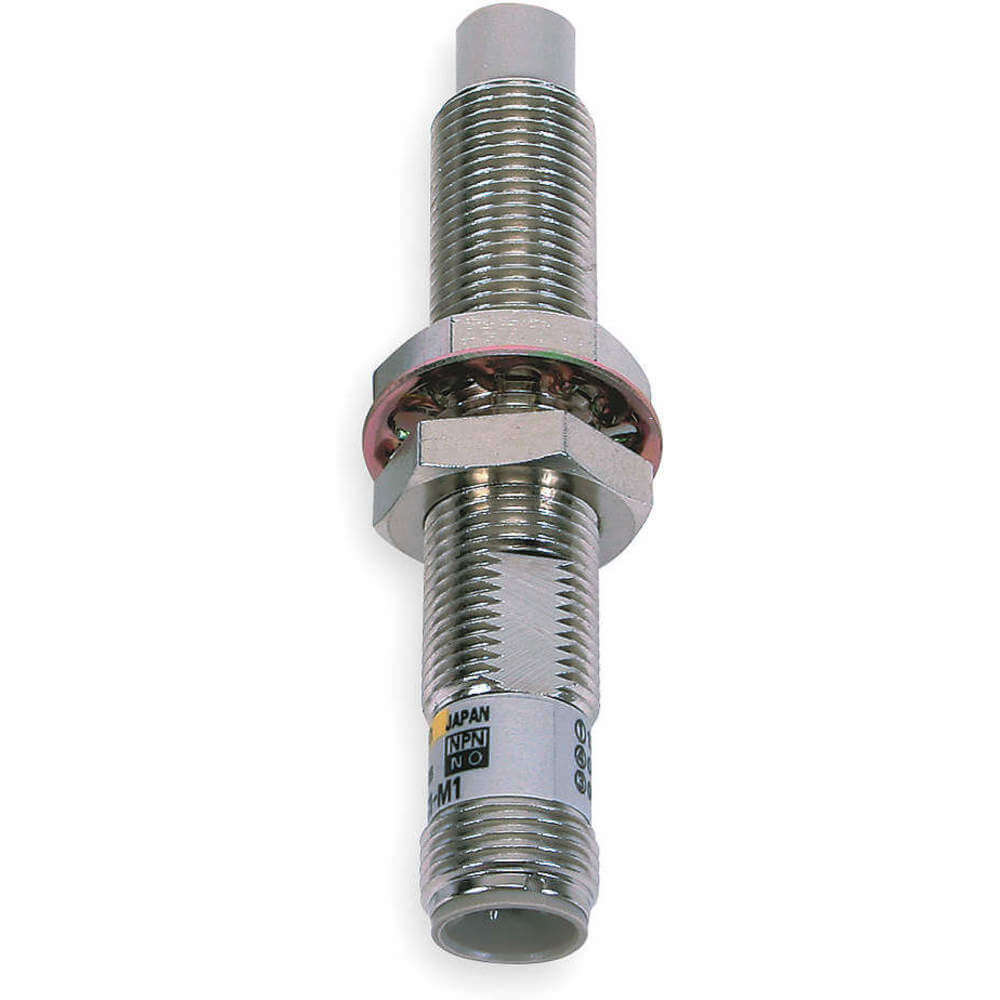

| E2E2-X2Y1-M4 | 2 mm | No | Shielded | 12 mm | 12 mm | - | 2 Wire | 2 | €291.78 | |

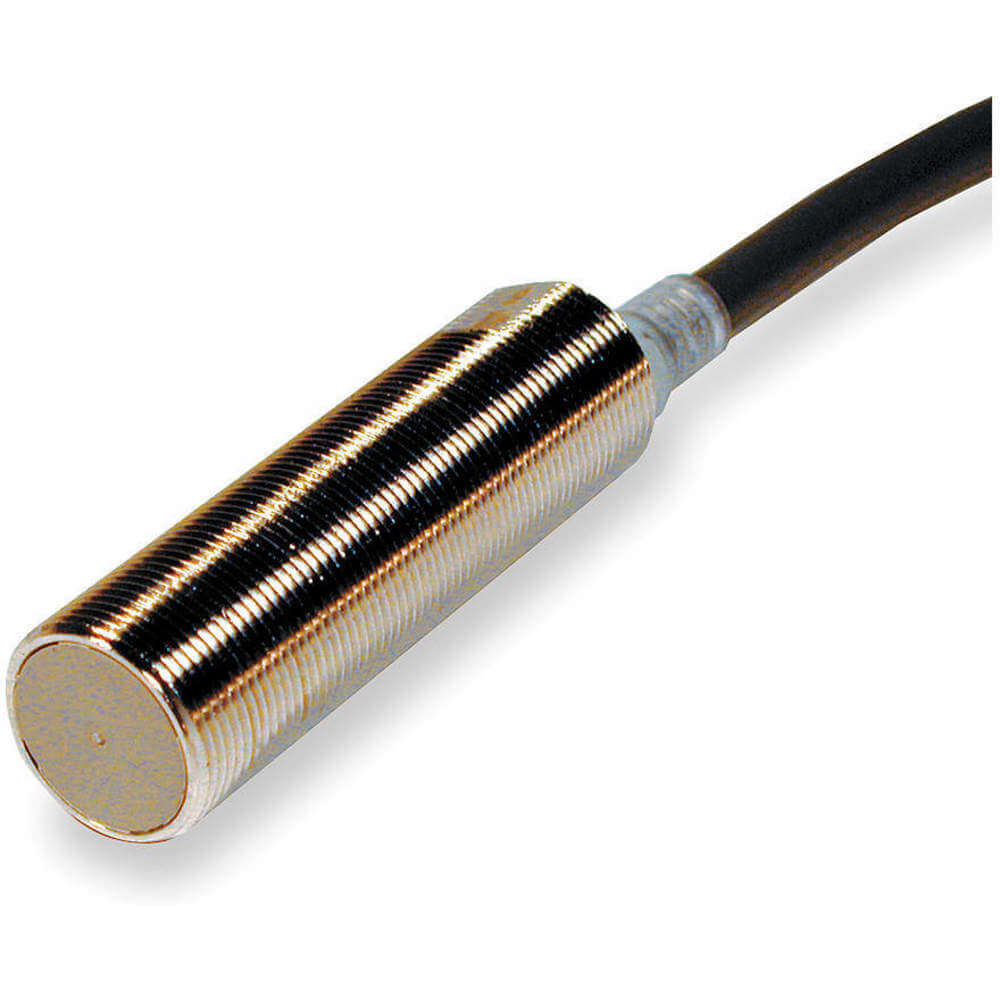

| E2E2-X5Y1-M4 | 5 mm | No | Shielded | 18 mm | 18 mm | - | 2 Wire | 2 | €324.29 | |
| E2E2-X5MY1-M4 | 5 mm | No | Unshielded | 12 mm | 12 mm | 200 mA | 2 Wire | 2 | €285.87 | |
| E2E2-X10MY1-M4 | - | No | Unshielded | 18 mm | - | 300 mA | 2 Wire | 2 | €302.32 | |

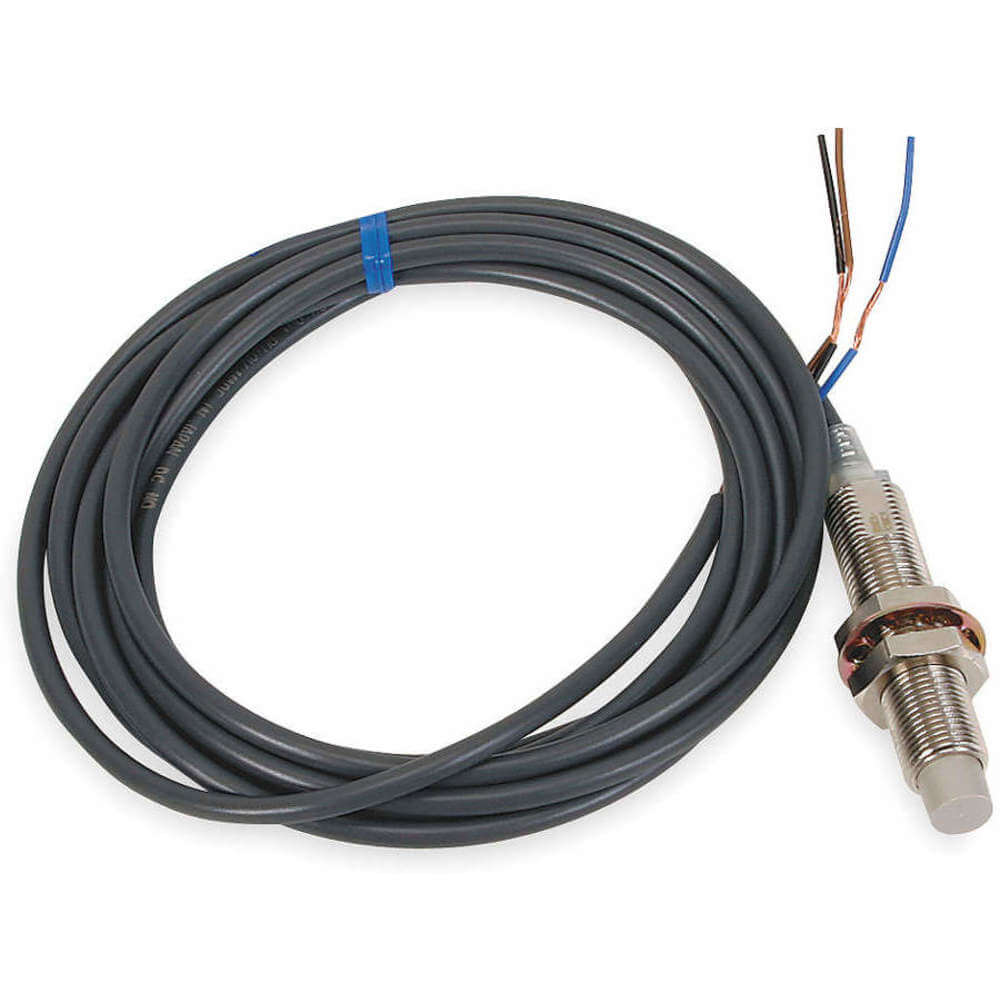

| E2E2-X5Y1-US | 5 mm | No | Shielded | 18 mm | 18 mm | 300 mA | 2 Wire | 2 | €332.63 | |
| E2E2-X5MY1-US | 5 mm | No | Unshielded | 12 mm | 12 mm | 200 mA | 2 Wire | - | €337.52 | |
| E2E2-X10MY1-US | 10 mm | No | Unshielded | 18 mm | 18 mm | 300 mA | 2 Wire | 2 | €327.96 |
