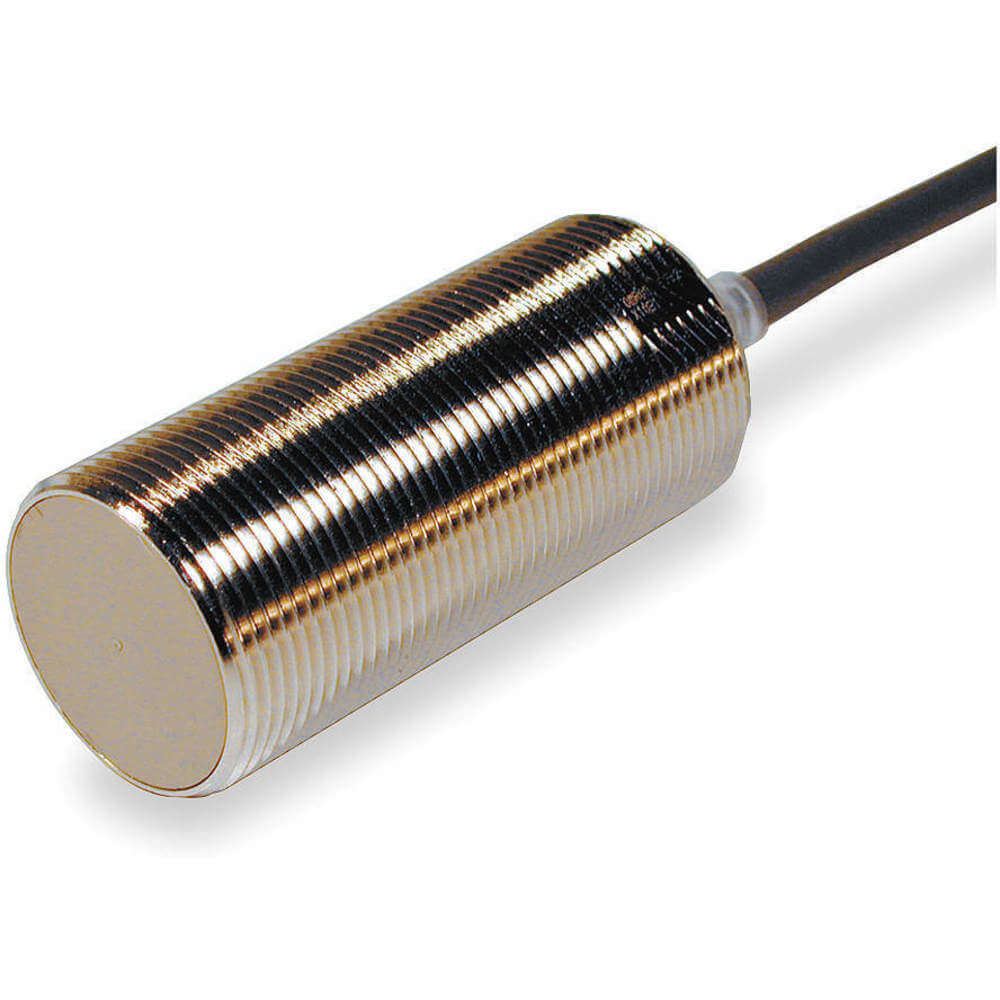

OMRON E2E2-X10Y1 Proximity Sensor Inductive 30mm No
Item: AE7ZMBModel: E2E2-X10Y1Cross Ref: 6C803
7 In Stock
Ships within 2 days via
10.00% off
€321.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | 20-264V AC |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Finish | Nickel Plated |
| Case Material | Nickel Plated Brass |
| Circuit Type | 2 Wire |
| Dc Supply Voltage Rating | Not Rated |
| Detecting Distance | 10mm |
| Detecting Distance | 10 mm |
| Diameter | 30 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Cable Protector Provided, Increased Tightening Strength, Milled Section For Wrench Grip |
| Includes | Instruction Manual |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 82 mm |
| Max. Current Load | 300mA |
| Max. Detecting Distance | 10 mm |
| Max. Load Current | 300 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Wires | 2 |
| Operating Frequency | 25 Hz |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | 2 Wire AC |
| Output Circuit Contact Form | No |
| Output Circuit Current - Maximum | 300 mA |
| Output Circuit Current - Minimum | 5 mA |
| Output Circuit Type | AC-Type |
| Output Mode | No |
| Overall Height | 65 mm |
| Power Required | 24-240V |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 30 mm |
| Proximity Sensor Operating Frequency | 25 Hz |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 30 mm |
| Series | E2E2 Series |
| Shielded / Unshielded | Shielded |
| Supply Voltage | 20-264V AC |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 9.4 |
| HS code | 8536507000 |
| Country of Origin | CN |
Product Details:
- Special Features: LED Indicator
Product Variants
| Product | Model | Shielded / Unshielded | Number Of Wires | Circuit Type | Ip Rating | Max. Detecting Distance | Output Mode | Operating Frequency | Sensing Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E2E2-X10Y1-M4 | Shielded | 2 | 2 Wire | IP67 | 10 mm | No | 25 Hz | Inductive | €365.60 | |
 |
E2E2-X18MY1-US | Unshielded | 2 | 2 Wire | IP67 | - | No | 25 Hz | Inductive | €329.21 |
