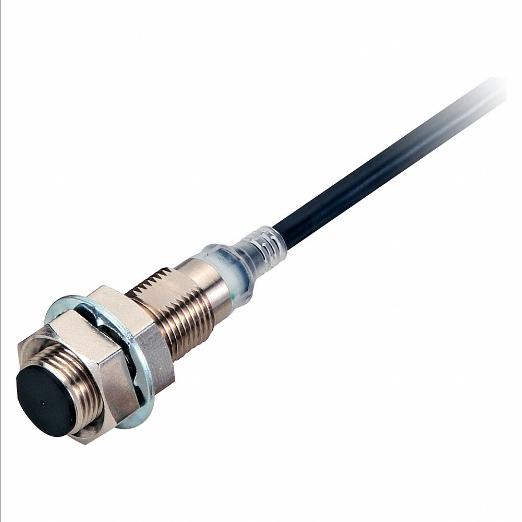

OMRON E2E-X5B1DL18 2M Proximity Sensor, 10 to 30 V DC, 600 Hz, 3 Wire PNP, Cable, Shielded
Item: CN2RCMModel: E2E-X5B1DL18 2MCross Ref: 798K14
7 In Stock
Ships within 2 days via
10.00% off
€234.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Cables With Oil Resistance Shut Out, E-Jig Compatible, Early Error Detection, Easy Installation, Environmental Resistance, Oil Resistance, Prox3 Hybrid Circuitry With Thermal Distance Control 2, Quick Recovery, Stable Operation, Vibration Resistant, Washdown Resistant, Water Resistant |
| Includes | Clamping Nuts, Toothed Washer |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP67G, IP69K |
| Load Current - Maximum | 200 mA |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 30V DC |
| Output Circuit Voltage - Minimum | 10V DC |
| Overall Height | 77 mm |
| Sensing Distance - Maximum | 5 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 18 mm |
| Series | E2E NEXT Series |
| Supply Voltage | 10-30V DC |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
