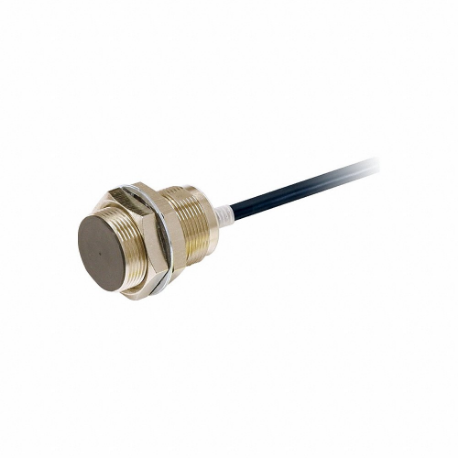

OMRON E2E-X10C1L30-M1 Proximity Sensor, 10 To 30 V DC, 400 Hz Proximity Sensor Op Freq, 3 Wire Npn
Item: CT4MVJModel: E2E-X10C1L30-M1Cross Ref: 798K20
7 In Stock
Ships within 2 days via
10.00% off
€296.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Material | Nickel Plated Brass |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Cables With Oil Resistance Shut Out, E-Jig Compatible, Early Error Detection, Easy Installation, Environmental Resistance, Oil Resistance, Prox3 Hybrid Circuitry With Thermal Distance Control 2, Quick Recovery, Stable Operation, Vibration Resistant, Washdown Resistant, Water Resistant |
| Includes | Clamping Nuts, Toothed Washer |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Length | 80 mm |
| Load Current - Maximum | 200 mA |
| Max. Detecting Distance | 10 mm |
| Max. Load Current | 16 mA |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Pins | 4 |
| Number Of Wires | 3 |
| Operating Temp. Range | -40°C to +85°C |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | NPN |
| Output Circuit Contact Form | No |
| Output Circuit Type | NPN |
| Output Circuit Voltage - Maximum | 30V DC |
| Output Circuit Voltage - Minimum | 10V DC |
| Output Mode | No |
| Overall Height | 80 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 30 mm |
| Proximity Sensor Output Circuit Type | Three Wire NPN |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 30 mm |
| Series | E2E NEXT Series |
| Supply Voltage | 10-30V DC |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Ip Rating | Number Of Wires | Max. Detecting Distance | Output Mode | Max. Load Current | Proximity Sensor Dia. | Proximity Sensor Output Circuit Type | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E2E-X5Y1 | IP67 | 2 | 5 mm | No | 300 mA | 18 mm | Two Wire | Shielded | €224.52 | |
 |
E2EX2MC182M | IP67, IP67G, IP69K | 3 | 2 mm | No | 16 mA | 8 mm | Three Wire NPN | Unshielded | €271.63 | |
 |
E2E-X18MC130 2M | IP67, IP67G, IP69K | 3 | 18 mm | No | 16 mA | 30 mm | Three Wire NPN | Unshielded | €279.77 | |
 |
E2E-X1R5C18-M1 | IP67, IP69K | 3 | - | No | 16 mA | 8 mm | Three Wire NPN | - | €279.76 | |
 |
E2E-X1R5C18 2M | IP67, IP67G, IP69K | 3 | - | No | 16 mA | 8 mm | Three Wire NPN | - | €237.43 | |
 |
E2EX1R5C282M | IP67, IP67G, IP69K | 3 | - | NC | 16 mA | 8 mm | Three Wire NPN | Shielded | €232.55 | |
|
E2E-X1R5B1D8-M1 | IP67, IP69K | - | 1.5 mm | No | 16 mA | 8 mm | Three Wire PNP | - | €249.78 |
