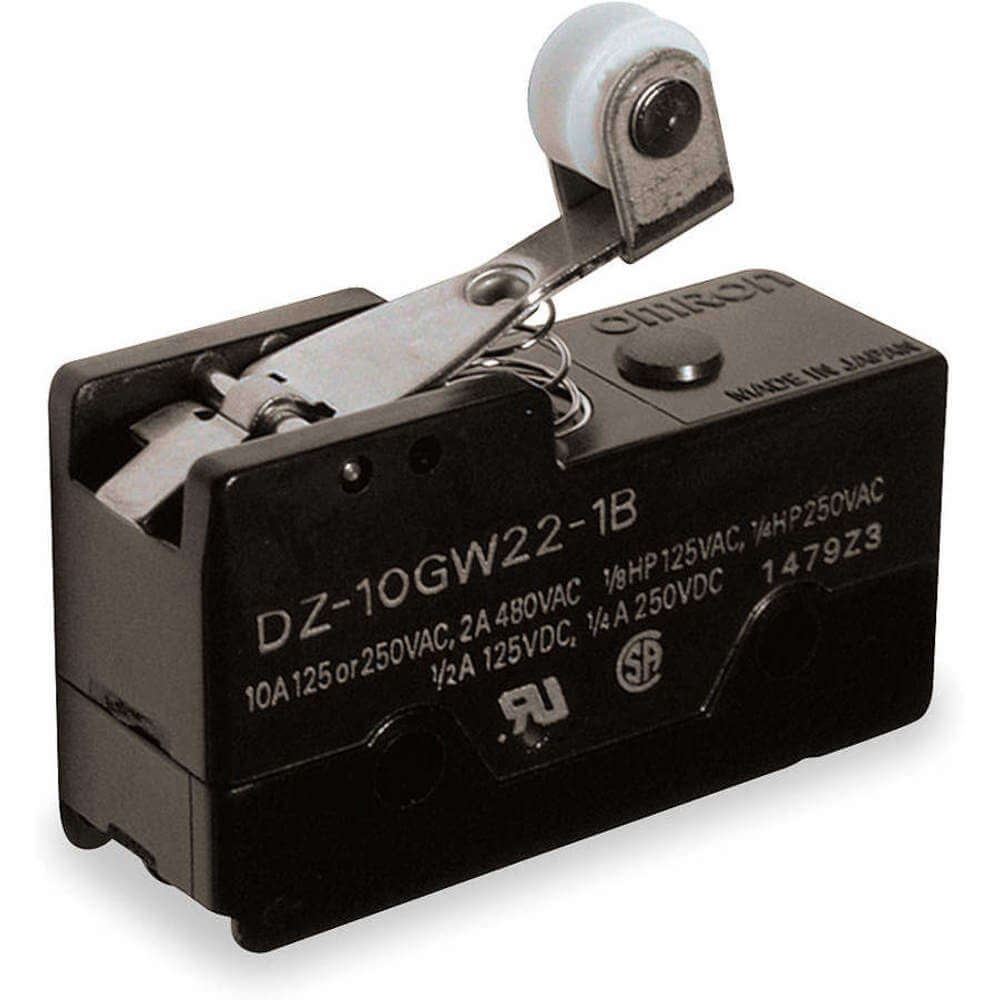

OMRON DZ-10GW22-1B6 Switch 10a Dpdt Short Hinge Roller Lever Low Ot
Item: AE7ZQEModel: DZ-10GW22-1B6Cross Ref: 6C918
7 In Stock
Ships within 2 days via
10.00% off
€63.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 2A @ 480V |
| Actuation Type | Low OT, Short Hinge Roller Lever |
| Actuator Length | 26.2 mm |
| Actuator Style | Hinge Roller Lever |
| Actuator Type - Snap Action Switch | Hinge Roller, Lever |
| Amps Rating | 10A |
| Body Depth | 0.69" |
| Body Height | 0.69" |
| Body Material | Plastic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.094" |
| Differential Travel - Maximum | 0.0945" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Electrical Connection - Snap Action Switch | Screw |
| Height | 1.1" |
| Height - Snap Action Switch | 1.1" |
| Length | 1.94" |
| Lever Actuator Length | 1.03" |
| Lever Actuator Length - Snap Action Switch | 1.03" |
| Max. Pretravel | 0.406" |
| Maximum Operating Force | 3.92N |
| Mounting Dimension | 1" |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 6 , NO/NC |
| Operating Force | 14.1 oz. |
| Operating Force - Minimum | 3.92N |
| Operating Temp. | -25°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.035" |
| Overall Depth | 0.69" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.406" |
| Release Force | 2.99 ozf |
| Roller Adjustability | Fixed |
| Roller Diameter | 0.37" |
| Roller Material | Plastic |
| Roller Position | Inside Offset |
| Roller Width | 4/25" |
| Series | DZ Series |
| Terminal Type | Screw |
| Voltage | 0.5V AC |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 2.79 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Electrical Connection | Max. Pretravel | Actuator Length | Terminal Type | Differential Travel | Body Material | Operating Temp. | Ac Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

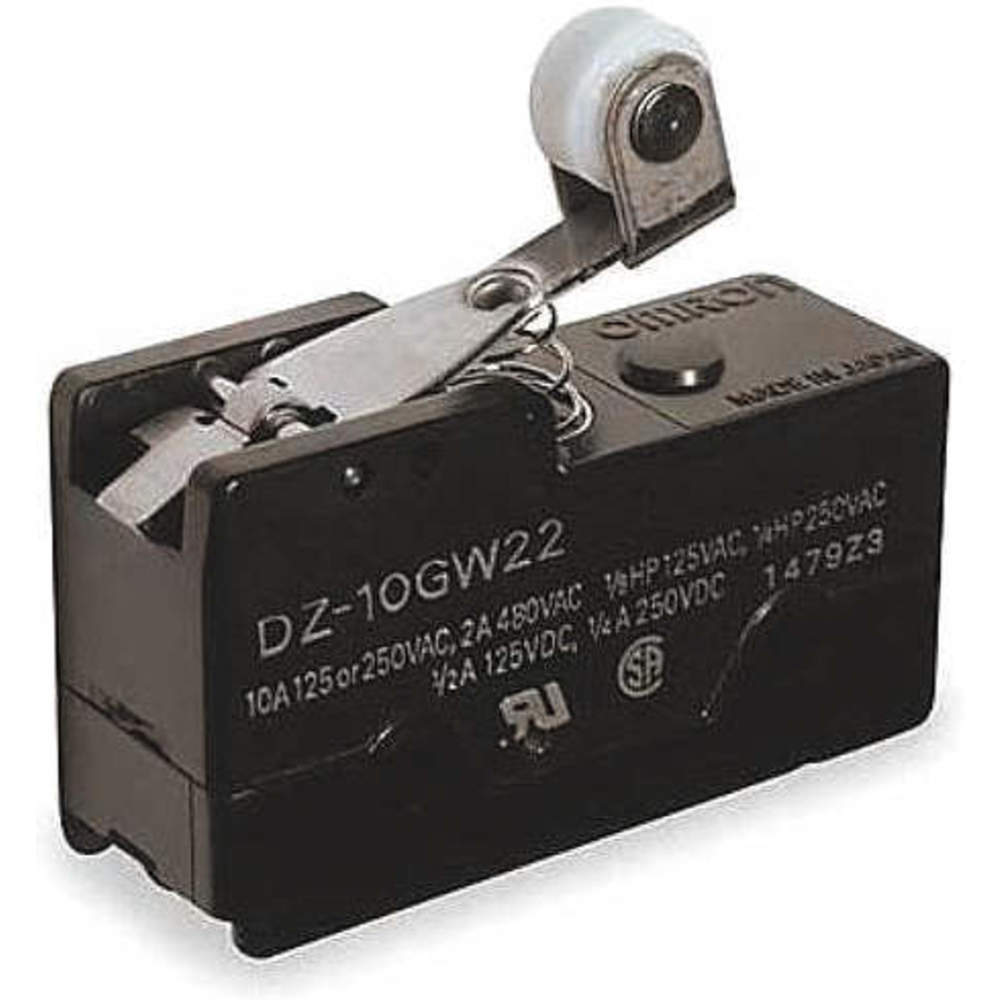

DZ-10GW22-1A | Solder | 9.5 mm | 1.03" | Solder | 0.095" | Phenolic | -13°F to +176°F | 2A @ 480V | €82.43 |
