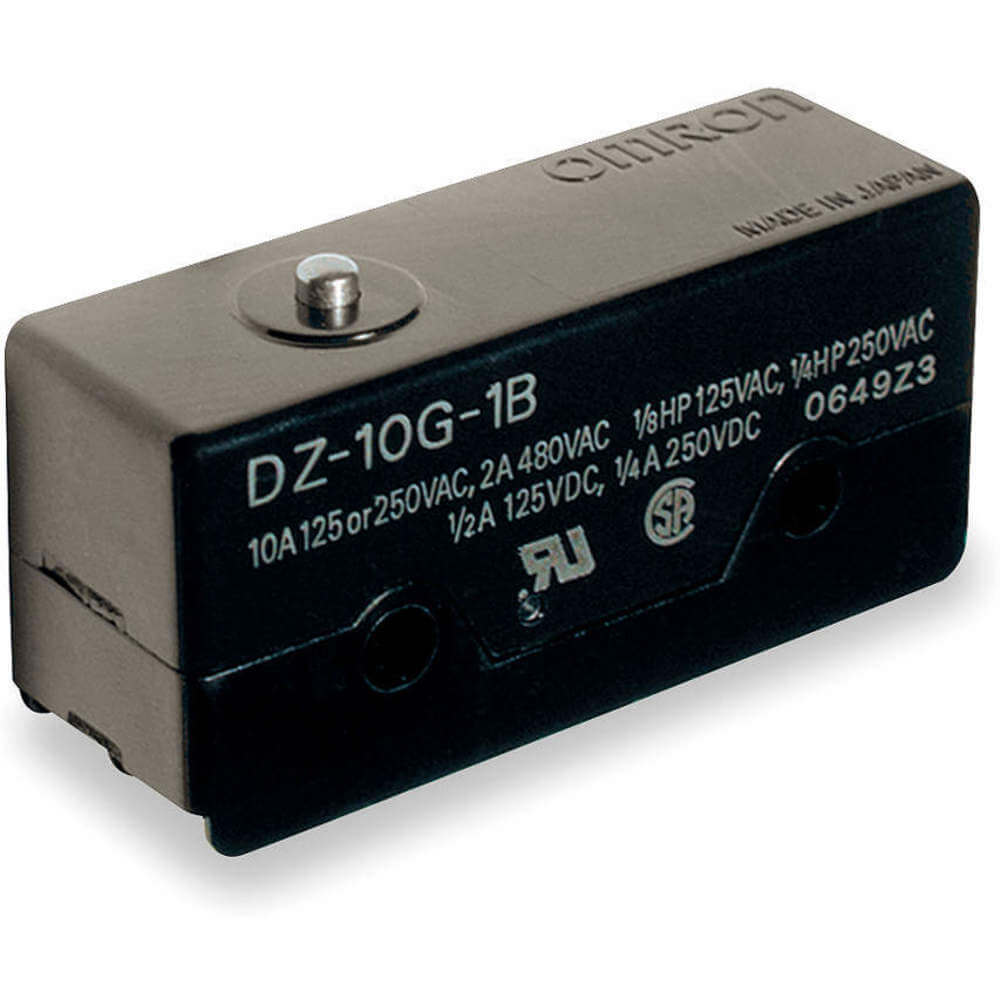

OMRON DZ-10G-1B Snap Switch 10a Dpdt Pin Plunger
Item: AE7ZQCModel: DZ-10G-1BCross Ref: 6C916
7 In Stock
Ships within 2 days via
10.00% off
€61.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 10A @ 250V |
| Actuation Type | Pin Plunger |
| Actuator Length | 1.94" |
| Actuator Style | Pin Plunger |
| Actuator Type | Pin Plunger |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Amps Rating | 10A |
| Body Depth | 1" |
| Body Height | 0.69" |
| Body Material | Plastic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.4 mm |
| Differential Travel - Maximum | 0.0157" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Electrical Connection - Snap Action Switch | Screw |
| Height | 0.89" |
| Height - Snap Action Switch | 0.89" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.067" |
| Maximum Operating Force | 5.59N |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 6 , NO/NC |
| Operating Force | 20.1 oz. |
| Operating Force - Minimum | 5.59N |
| Operating Temp. | -25°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.005" |
| Overall Depth | 1" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.067" |
| Release Force | 1.98 ozf |
| Series | DZ Series |
| Terminal Type | Screw |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 2.54 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Ac Contact Rating | Electrical Connection | Release Force | Max. Pretravel | Over Travel | Actuator Length | Terminal Type | Differential Travel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A-20G | 20A @ 480V | Solder | 10.05 ozf | 0.051" | 0.01" | 1.94" | Solder | 0.008" | €39.56 | |
 |
Z-15G | 15A @ 250V | Solder | 4.03 ozf | 0.016" | 0.005" | Not Applicable | Solder | 0.002" | €23.03 | |
 |
X-10G-B | 2A @250V | Screw | 4.03 ozf | 0.035" | 0.005" | Not Applicable | Screw | 0.007" | €46.34 | |
 |
X-10G | 2A @250V | Solder | 4.03 ozf | 0.035" | 0.005" | Not Applicable | Solder | 0.007" | €36.89 | |
 |
DZ-10G-1A | 2A @ 480V | Solder | 1.98 ozf | 0.067" | 0.005" | 1.94" | Solder | 0.016" | €53.16 | |
 |
TZ-1G | 1A @ 240V | Screw | 4.03 ozf | 0.016" | 0.005" | 1.94" | Bolt | 0.006" | €527.57 | |
 |
Z-15G | 15A @ 480V | Screw | 4.02 ozf | 0.016" | 0.005" | 1.94" | Screw | 0.002" | €10.06 |
