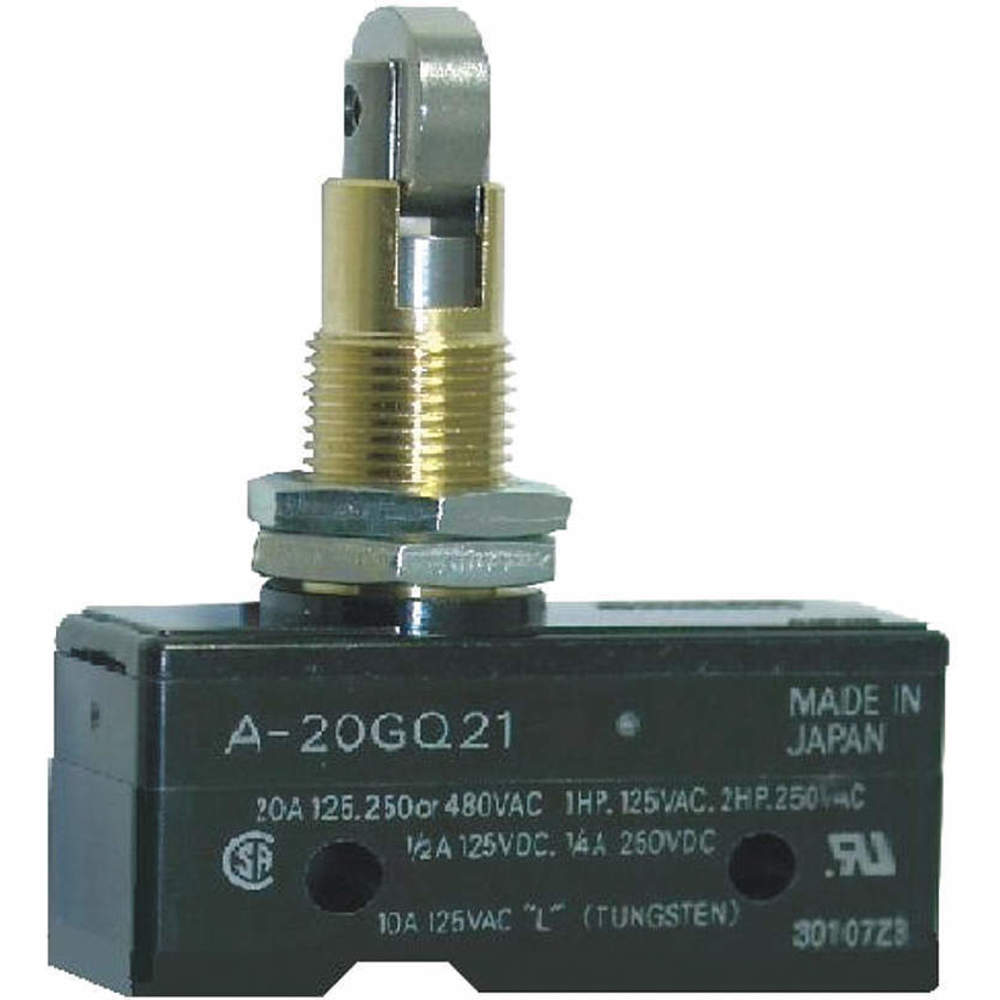

OMRON A-20GQ21 Switch 20a Spdt Panel Mount Cross Roller Plunger
Item: AC2JRRModel: A-20GQ21Cross Ref: 2KRK4
7 In Stock
Ships within 2 days via
5.00% off
€71.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 20A @ 480V |
| Actuation Type | Panel Mount Cross Roller Plunger |
| Actuator Length | 1.37" |
| Actuator Style | Plunger |
| Actuator Type-snap Action Switch | Panel Mount, Plunger, Roller |
| Amps | 20A |
| Body Depth | 0.69" |
| Body Height | 0.89" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| Depth | 0.69" |
| Depth-snap Action Switch | 0.69" |
| Differential Travel | 0.014" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection-snap Action Switch | Solder Lug |
| Height | 0.89" |
| Height-snap Action Switch | 0.89" |
| Lever Actuator Length-snap Action Switch | Not Applicable |
| Max. Differential Travel | 0.0138" |
| Max. Operating Force | 6.18N |
| Max. Operating Temp. | 176°F |
| Max. Pretravel | 0.051" |
| Min. Operating Force | 3.92N |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 22.24 oz. |
| Operating Temp. | -13°F to +176°F |
| Over Travel | 0.141" |
| Overall Depth | 0.69" |
| Overall Height | 0.89" |
| Overall Width | 1.94" |
| Pre-travel | 0.051" |
| Release Force | 9.88 ozf |
| Roller Adjustability | Fixed |
| Roller Dia. | 1/2" |
| Roller Material | Stainless Steel |
| Roller Position | Outside Offset |
| Roller Width | 0.19" |
| Series | A Series |
| Terminal Type | Solder |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 5.08 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Height | Electrical Connection | Amps | Actuator Length | Body Height | Electrical Connection-snap Action Switch | Roller Width | No. Of Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

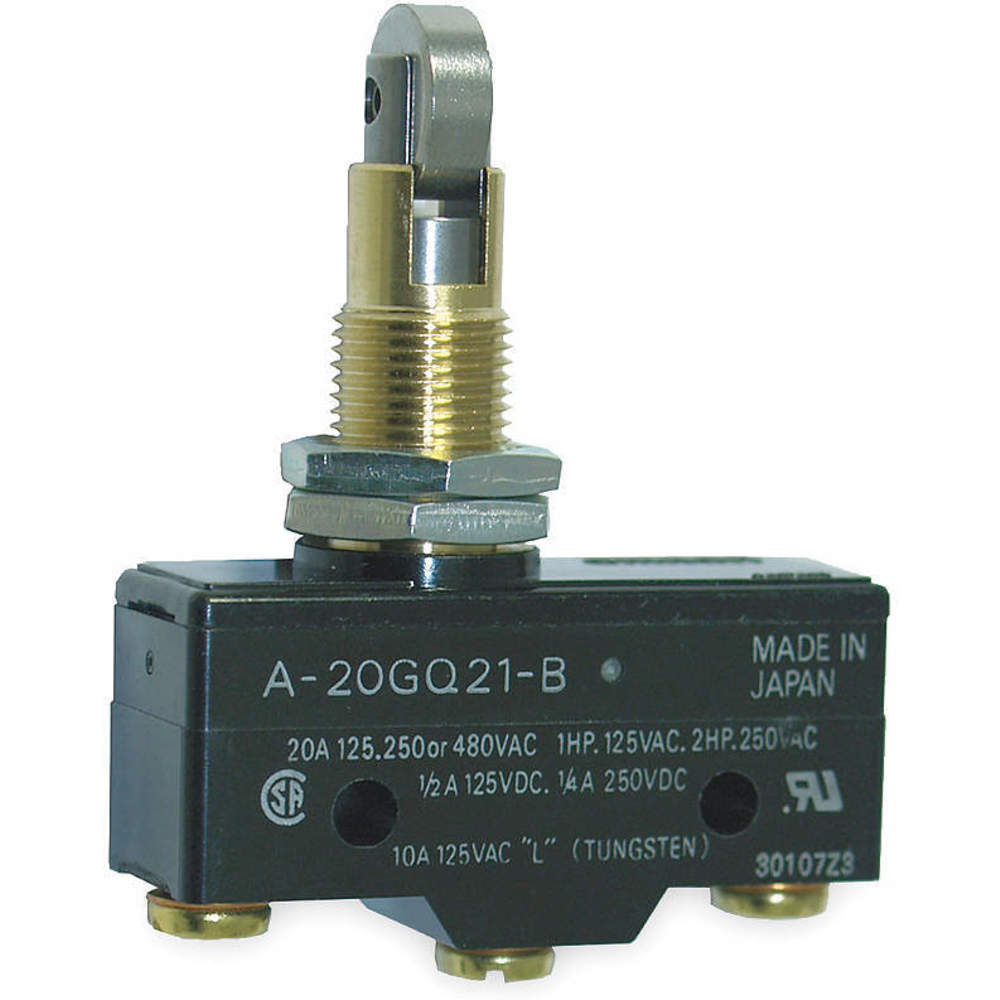

A-20GQ21-B | 1.01" | Screw | 20A | 1.37" | 1.01" | Screw | 0.19" | NO/NC | €66.67 | |
 |

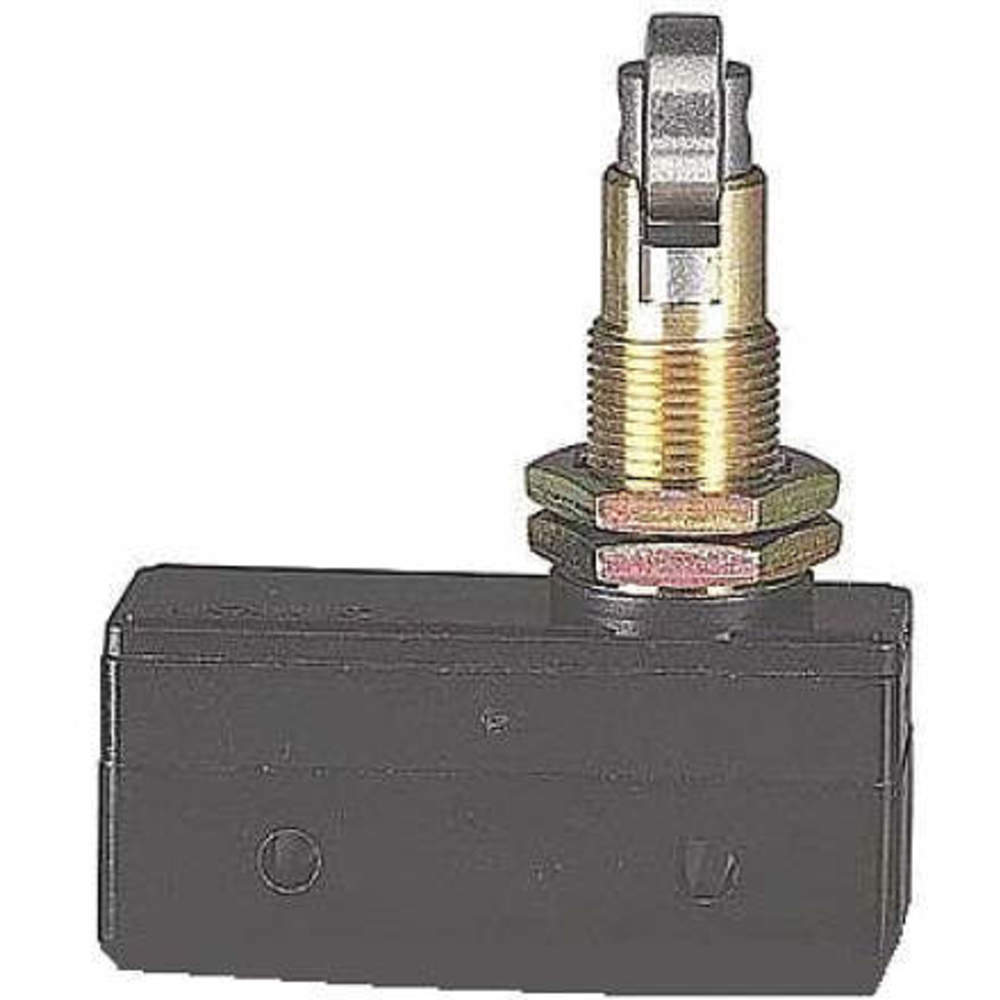

Z-15GQ21 | 0.69" | Solder | 15A | 1.33" | 0.69" | Solder Lug | 0.19" | NO/NC | €38.54 | |
 |

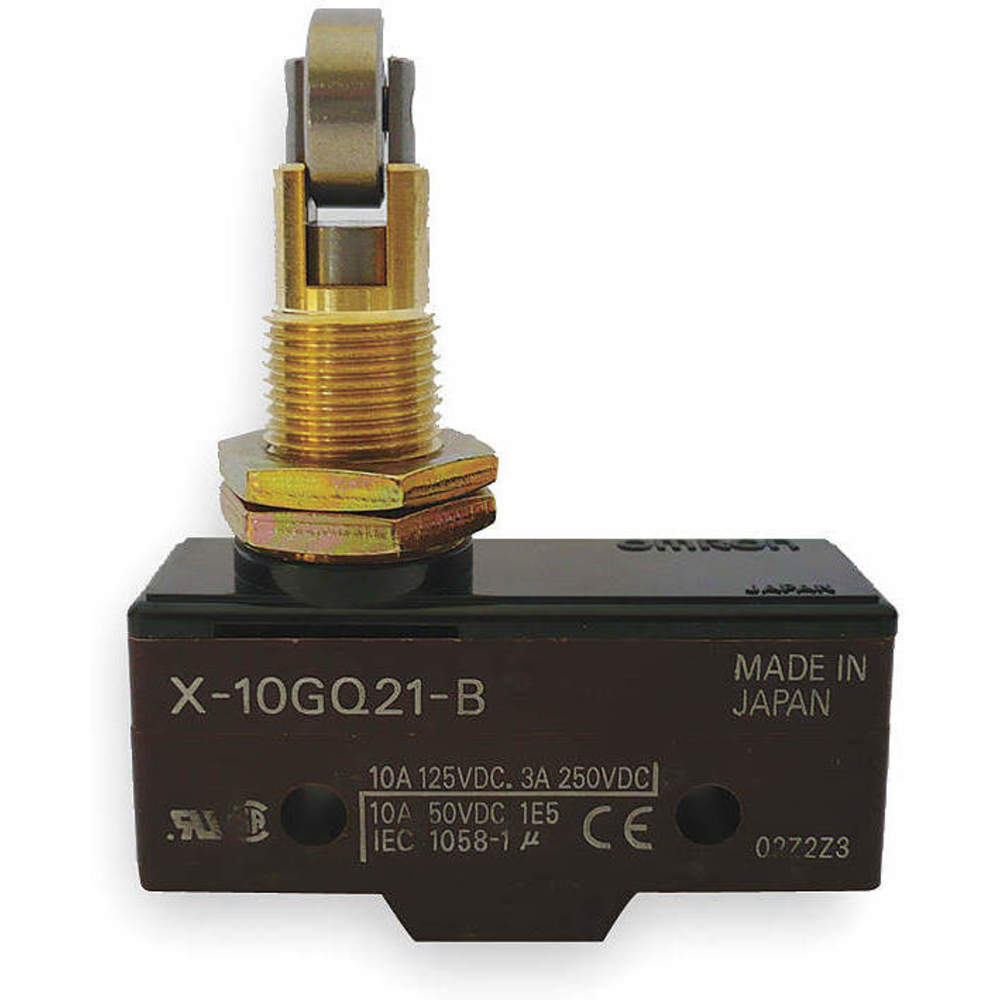

X-10GQ21-B | 1.01" | Screw | 10A | 1.35" | 1.01" | Screw | 0.19" | NO/NC | €70.70 | |
 |

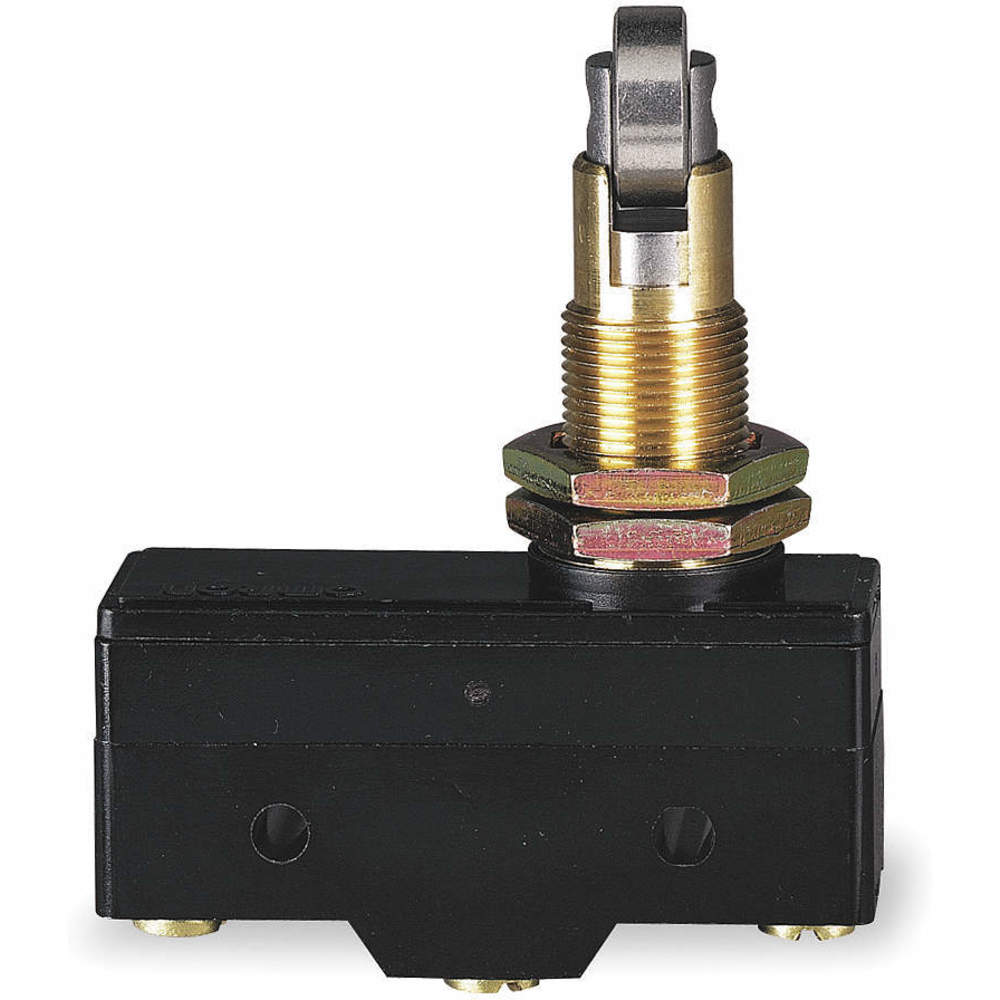

Z-15GQ21-B7-K | 0.69" | Screw | 15A | Not Applicable | 0.69" | Screw | 4/25" | NO/NC | €46.42 |
