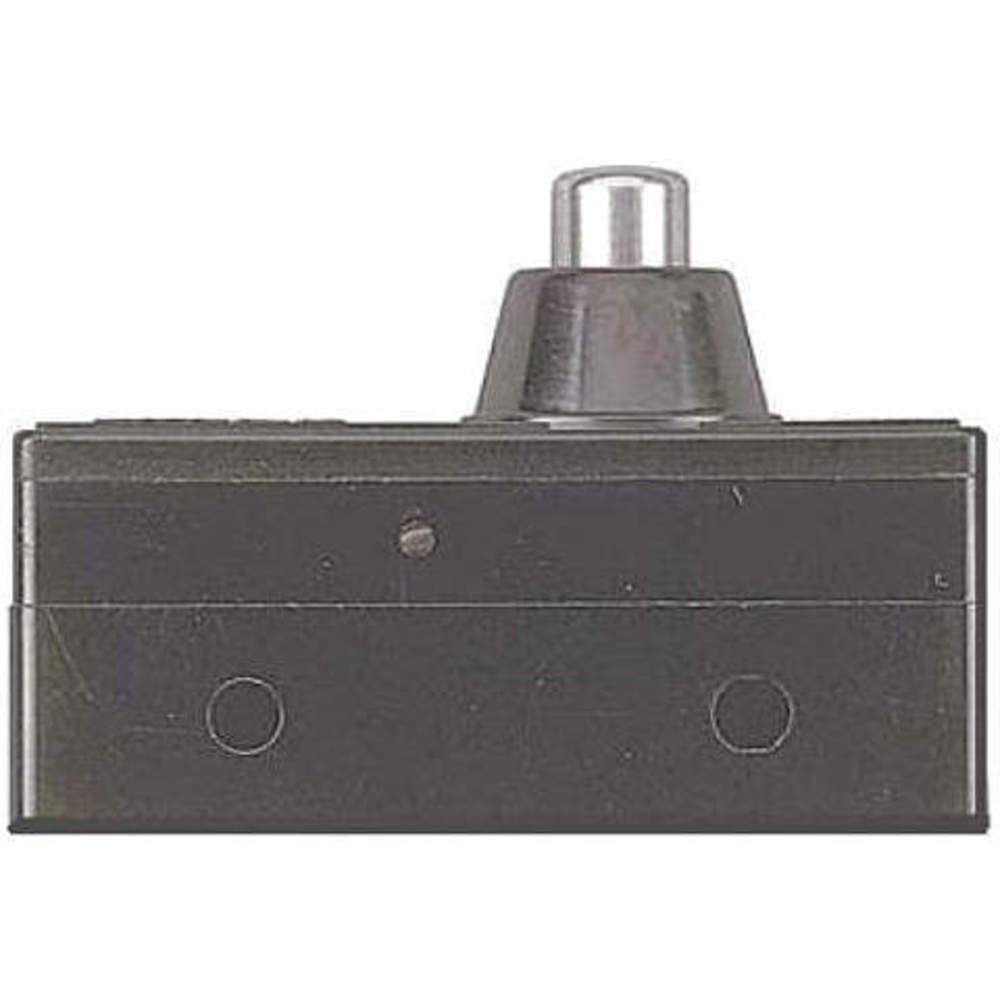

OMRON A-20GD Snap Switch 20a Spdt Short Spring Plunger
Item: AC2JRPModel: A-20GDCross Ref: 2KRK2
7 In Stock
Ships within 2 days via
10.00% off
€48.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 20A @ 480V |
| Actuation Type | Short Spring Plunger |
| Actuator Length | 0.49" |
| Actuator Style | Plunger |
| Actuator Type | Short Spring Plunger |
| Actuator Type - Snap Action Switch | Plunger, Short |
| Amps Rating | 20A |
| Body Depth | 1.33" |
| Body Height | 0.69" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.008" |
| Differential Travel - Maximum | 0.0079" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Height | 21/25" |
| Height - Snap Action Switch | 21/25" |
| Length | 1.94" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.051" |
| Maximum Operating Force | 6.13N |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 14.12 oz. to 22.06 oz. |
| Operating Force - Minimum | 3.92N |
| Operating Temp. | -13°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.118" |
| Overall Depth | 1.33" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.051" |
| Release Force | 10.05 ozf |
| Roller Adjustability | Fixed |
| Series | A Series |
| Standards | Csa, Ul Listed |
| Terminal Type | Solder |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.56 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Ac Contact Rating | Electrical Connection | Release Force | Max. Pretravel | Over Travel | Actuator Length | Differential Travel | Amps Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

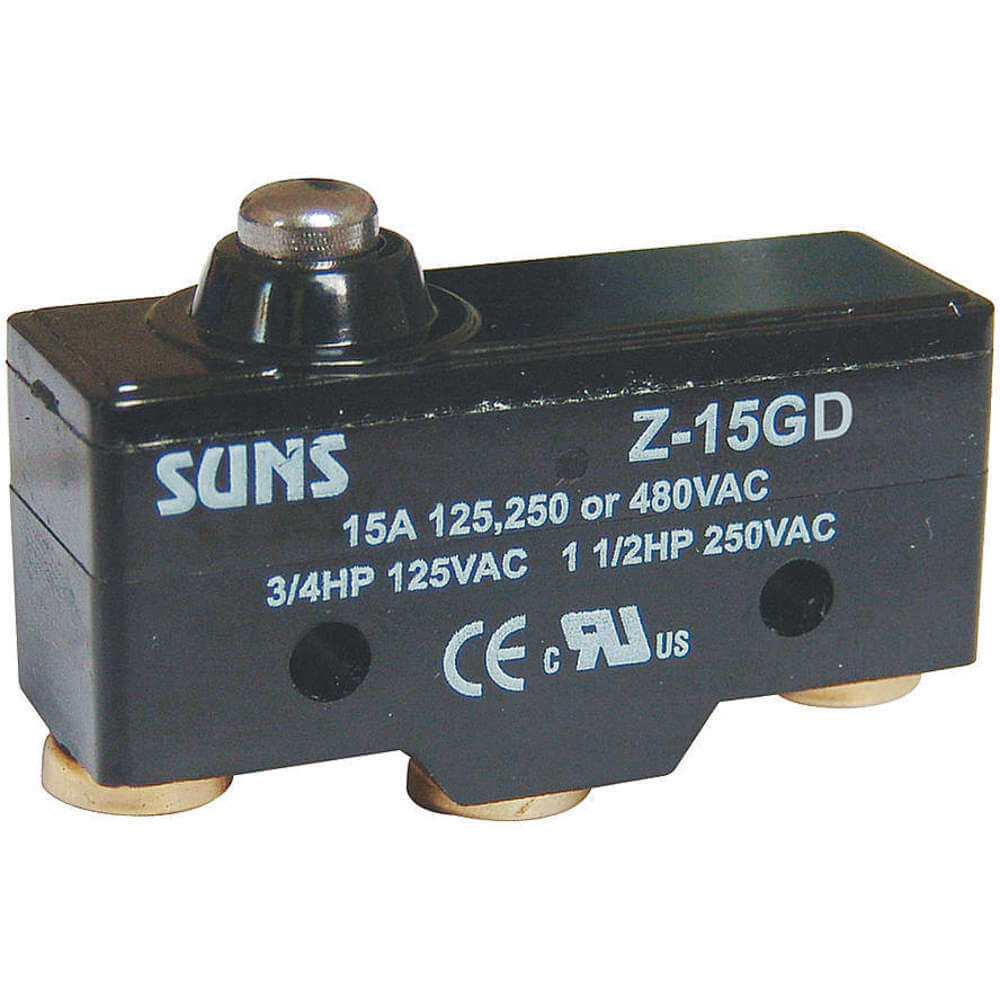

Z-15GD | 15A @ 250V | Solder | 4.03 ozf | 0.016" | 0.063" | 0.27" | 0.002" | 15A | €32.14 | |
 |

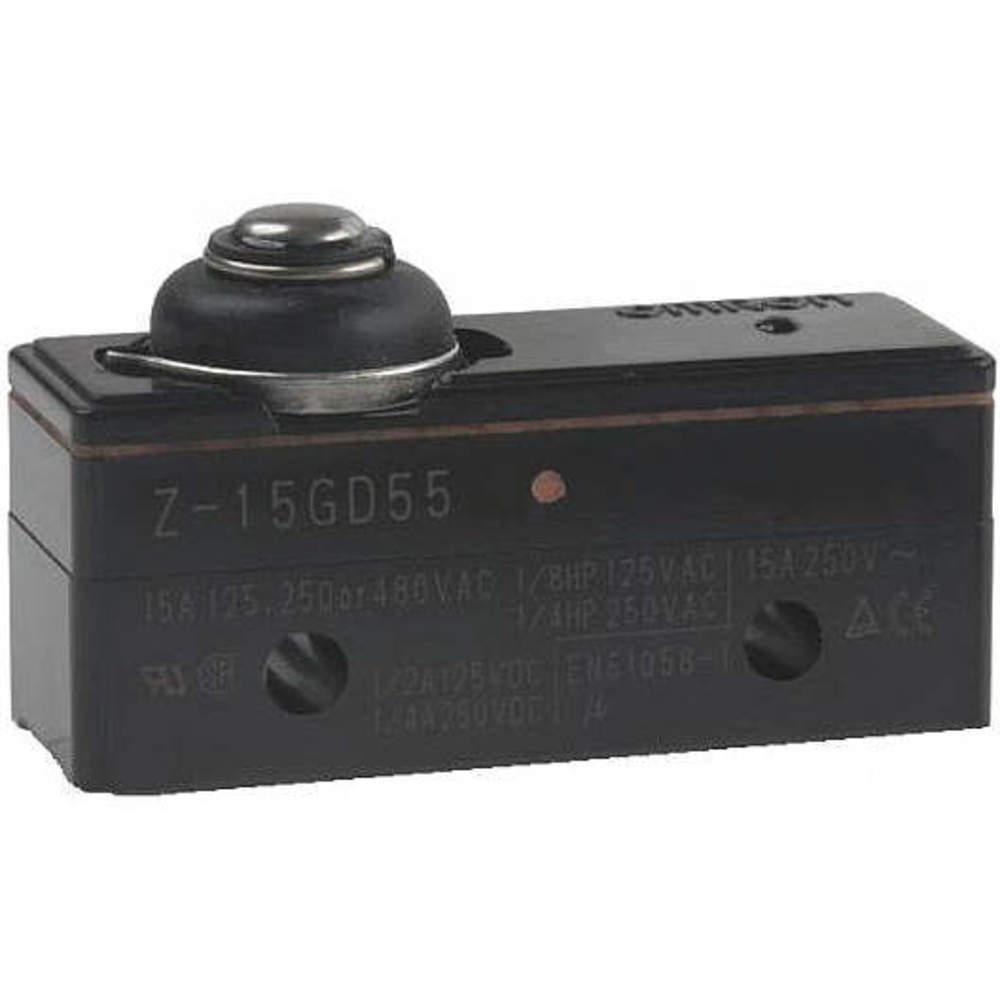

Z-15GD55 | 15A @ 250V | Solder | 4.03 ozf | 0.071" | 0.063" | 0.27" | 0.002" | 15A | €42.43 | |
 |

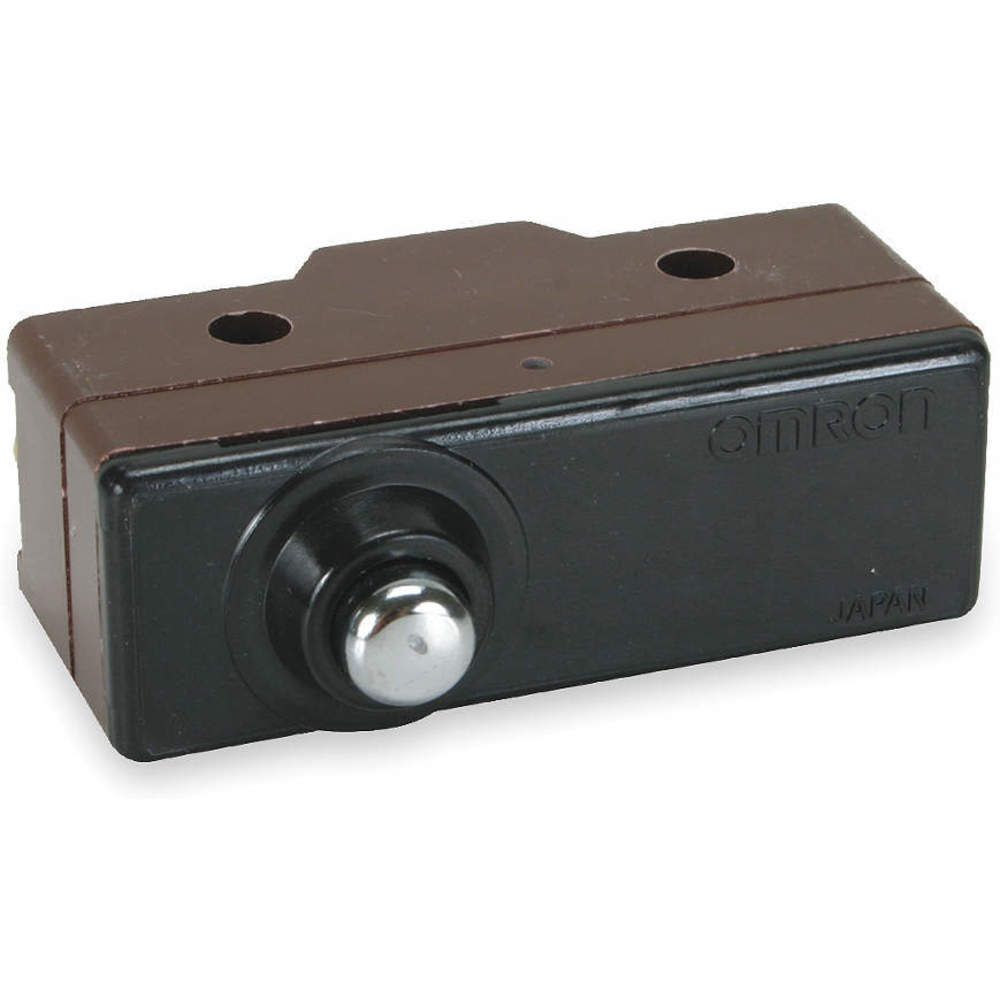

X-10GD-B | 2A @250V | Screw | 4.03 ozf | 0.035" | 0.005" | 0.28" | 0.007" | 10A | €58.55 | |
 |

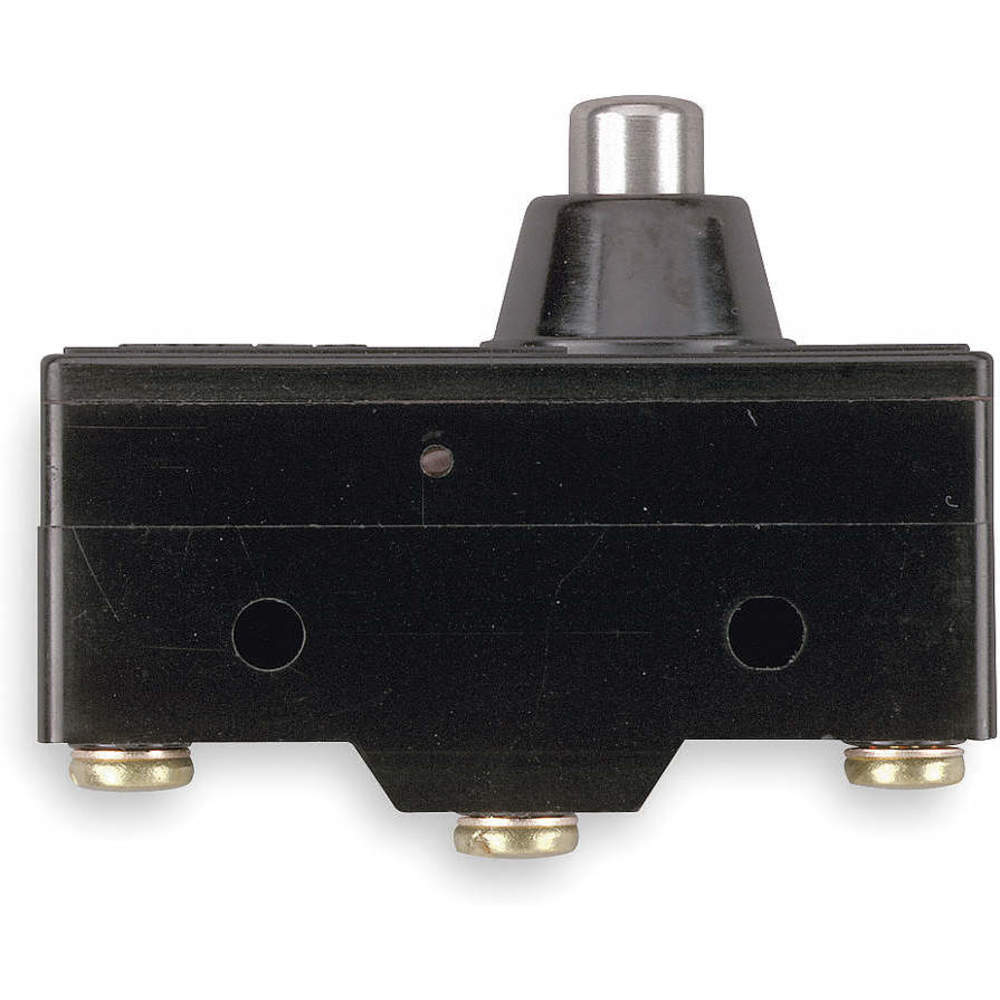

A-20GD-B7-K | 20A @ 480V | Screw | 10.05 ozf | 0.051" | 0.118" | Not Applicable | 0.008" | 20A | €62.44 | |
|
Z-15GD-B7-K | 15A @ 250V | Screw | 4.03 ozf | 0.016" | 0.063" | Not Applicable | 0.002" | 15A | €33.04 | |
|
Z-15GD55-B7-K | 15A @ 250V | Screw | 4.03 ozf | 0.071" | 0.063" | Not Applicable | 0.002" | 15A | €41.41 | |
 |
Z-15GD | 15A @ 480V | Screw | 4.02 ozf | 0.016" | 0.063" | 1.94" | 0.002" | 15A | €17.95 |
