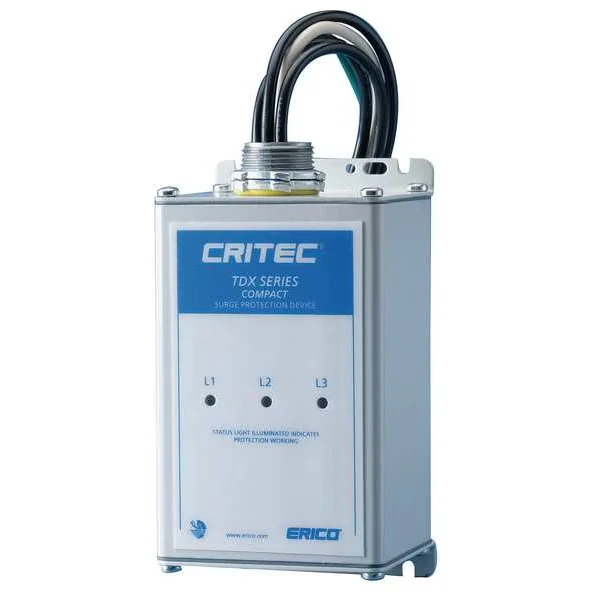

NVENT TDX100C240 Surge Protection Device, 1 Phase, 240V
Request a Quote
Payment
Delivery
Product Specifications:
| Amps | 100 kA |
| Basic Material | Metallic |
| Chase Nipple Size | 3/4" |
| Color | Gray |
| Complies With | Ansi®/Ieee® C62.41.2-2002 Cat A, Cat B, Cat C |
| Depth | 3.07" |
| Enclosure Material | Metal |
| Filtering | No |
| Filtering/nonfiltering | Nonfiltering |
| Included | Voltage Free Contact |
| Included Surge Counter | No |
| Lead Length | 762 |
| Length | 6.02" |
| Length (straight Wireway) | 6.02" |
| Lightning Impulse Amps | 12.5 kA |
| Max. Continuing Operating Voltage | 275V AC |
| Max. Continuous Operating Voltage | 276V AC |
| Max. Continuous Operating Voltage (uc) | 276V AC |
| Max. Surge Amps Per Mode | 100 kA |
| Max. Surge Amps Per Phase | 100 kA |
| Modular | Yes |
| Modular/nonmodular | Modular |
| Nema Rating | {n{n4}} |
| No. Of Poles | 2 |
| Nominal Discharge Amps | 40 kA |
| Nominal Discharge Amps (in) Iec | 40" |
| Nominal Discharge Amps (in) Ul | 20" |
| Nominal Discharge Amps (in), Iec | 40" |
| Nominal Discharge Amps (in), Ul | 20" |
| Nominal System Voltage | 240V AC |
| Operating Temp. | -40°C to +80°C |
| Protection Modes | L-N |
| Remote Contacts | Yes |
| Short Circuit Amps | 200 kA |
| Short Circuit Amps Rating | 200A |
| Stand Off Voltage | 480V AC |
| Status Indication | Led |
| Status Indicator | LED Light |
| System Connection | Parallel |
| Type | Compact |
| Ul Spd Type | Type 1/2 |
| Voltage | 480V AC |
| Voltage Protection Rating | 1000V (L-G, L-N, N-G) |
| Width | 3.31" |
| Wire Gauge | 10 AWG |
Shipping Info:
| Ship length (cm) | 15.29 |
| Ship width (cm) | 8.41 |
