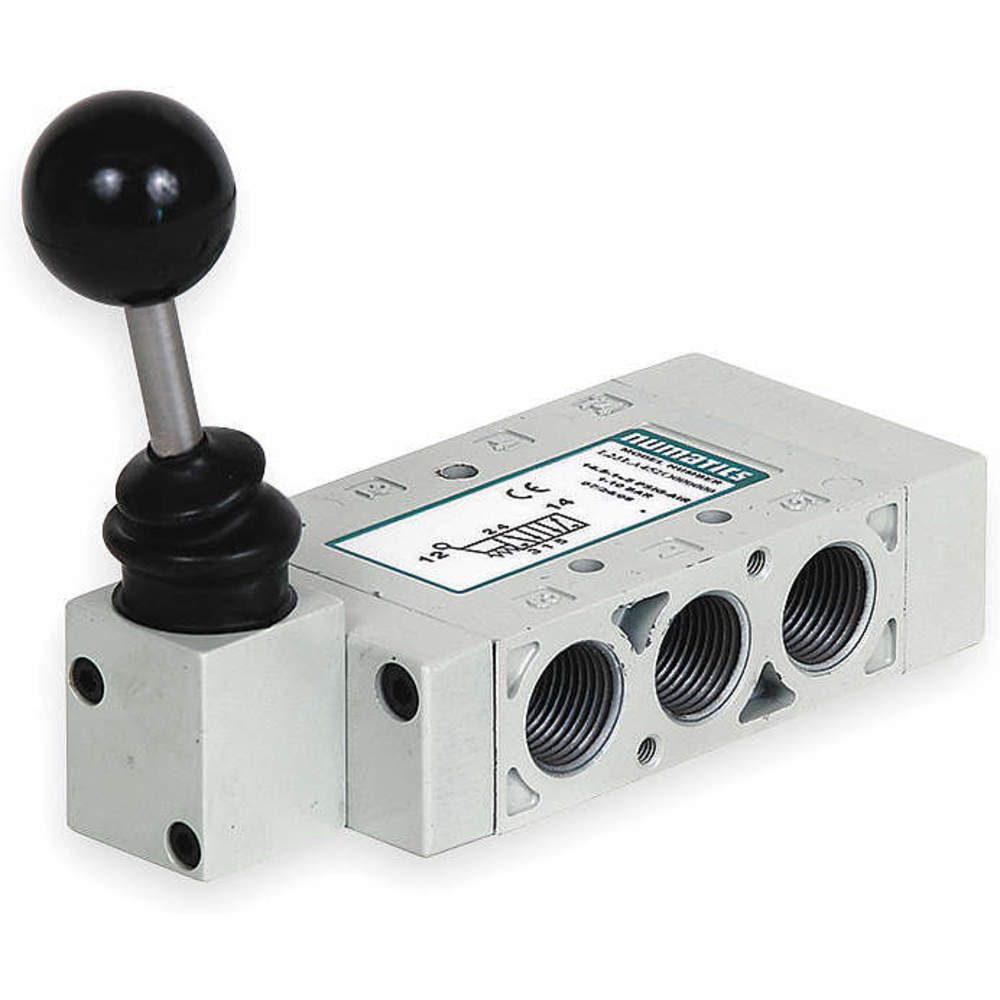

NUMATICS L23LA452O000000 Air Valve Lever 3/8 Npt 4 Way 2 Position
Item: AC9QXAModel: L23LA452O000000Cross Ref: 3JCT9
7 In Stock
Ships within 2 days via
10.00% off
€347.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Type | Lever |
| Actuator/return | Lever/Spring |
| Application | Automotive, Bottling, Life Science, Pressing |
| Body Material | Aluminum |
| Body Style | Inline |
| Cfm | 78 CFM |
| Coefficient Of Volume | 1.7 |
| Connection | NPT |
| Flow Rate - Maximum | 78 SCFM |
| For Media | Air, Inert Gas |
| Max. Pressure | 150 psi |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | -13.7 psi |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 2" |
| Overall Length | 5 3/16" |
| Overall Width | 3 15/16" |
| Pipe Size | 3/8" |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Series | L2 Series |
| Temp. Range | -10°F to +150°F |
| Vacuum Rating | Vacuum Operable |
| Valve Port Connection Size | 3/8" |
| Valve Port Connection Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.33 |
| HS code | 8481805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator/return | Connection | Cfm | Overall Length | Overall Width | Overall Height | Coefficient Of Volume | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L23LD452O000000 | Lever With Detent | NPT | 78 CFM | 5 3/16" | 3 15/16" | 2" | 1.7 | Aluminum | €398.63 |
