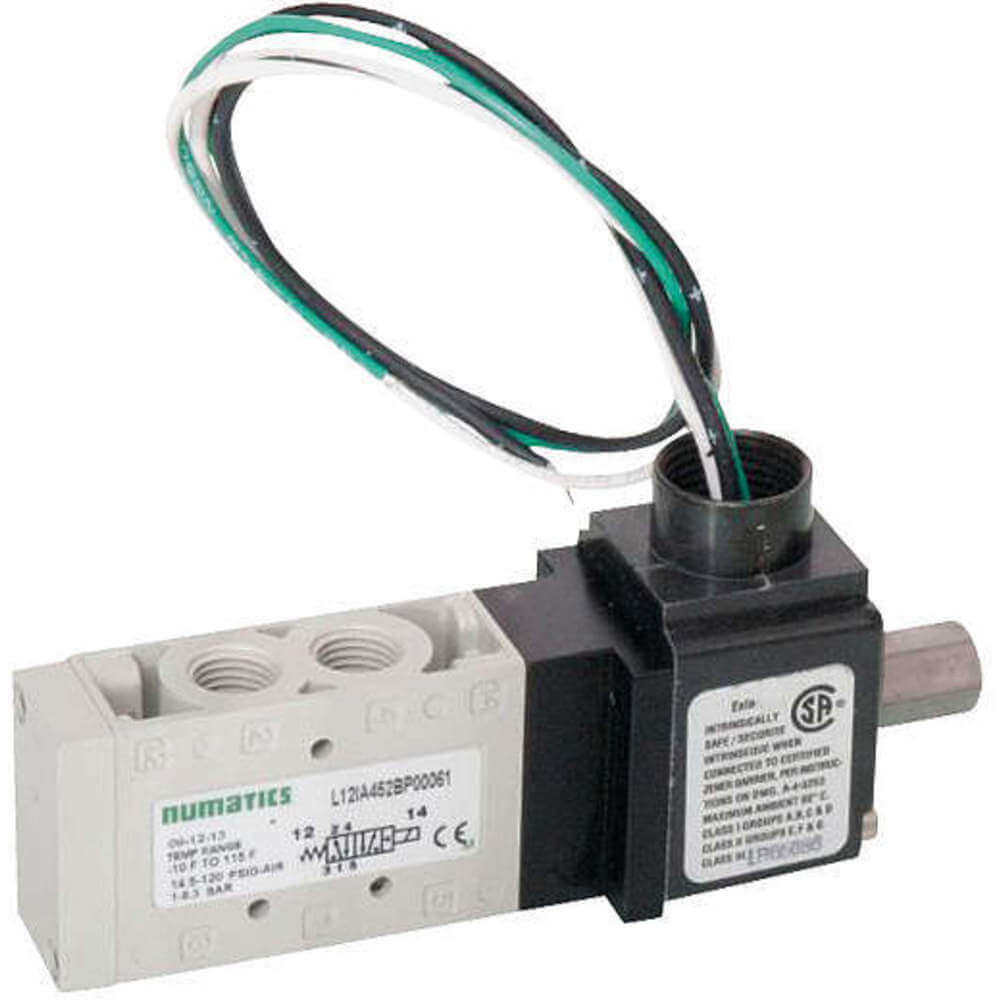

NUMATICS L22IA452BP00061 Solenoid Air Control Valve 1/4 Inch 24vdc
Item: AF6TQTModel: L22IA452BP00061Cross Ref: 20HW22
7 In Stock
Ships within 2 days via
5.00% off
€1,203.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | -10°F to +115°F |
| Body Style | Body Ported |
| Cfm | 79 CFM |
| Coefficient Of Volume | 1.7 |
| Electrical Connection | Hardwired |
| Nema Class | NEMA 4 |
| Overall Height | 3" |
| Overall Length | 6 1/4" |
| Overall Width | 1 1/2" |
| Override | No Override |
| Pilot Port Size | 1/4" NPT |
| Pipe Size | 1/4" |
| Power Consumption | 3.5 W |
| Pressure | 0 psig to 150 psig |
| Pressure Rating | 0 psig to 150 psig |
| Shifting Technology | Spool And Sleeve |
| Vacuum | 0 in. hg to 28 in. hg |
| Vacuum Range | 0 to 28" Hg |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 17.78 |
| HS code | 8481200060 |
Product Variants
| Product | Model | Voltage | Overall Width | Pressure Rating | Max. Operating Pressure | Overall Height | Max. Flow Rate | Min. Operating Pressure | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
081SA400K000030 | 110-120V AC | 2" | 0 psi to 150 psi | 150 psi | 3 1/32" | 37 CFM | 14 psi | Plug In | €386.96 | |
 |
081SS400K000030 | 110-120V AC | 2" | 0 psi to 150 psi | 150 psi | 3 1/32" | 37 CFM | 14 psi | Plug In | €609.58 | |
|
081SA400M000061 | 24V DC | 2" | 0 psi to 150 psi | 150 psi | 3 1/32" | 37 CFM | 14 psi | Plug In | €386.47 | |
 |
152SS400K000030 | 110-120V AC | 2 5/32" | 0 psi to 150 psi | 150 psi | 3 5/16" | 161 CFM | 14 psi | Plug In | €704.93 | |
 |
152SS400M000061 | 24V DC | 1 3/8" | 0 psi to 150 psi | - | 1 1/2" | - | - | - | €693.55 | |
 |
554SA400K000030 | 110-120V AC | 3 3/8" | 0 psi to 150 psi | 150 psi | 4 1/4" | 232 CFM | 14 psi | Plug In | €755.05 | |
 |
554BA400K000030 | 110-120V AC | 3 3/8" | 20 psi to 150 psi | 150 psi | 4 1/4" | 232 CFM | 14 psi | Plug In | €1,068.99 |
