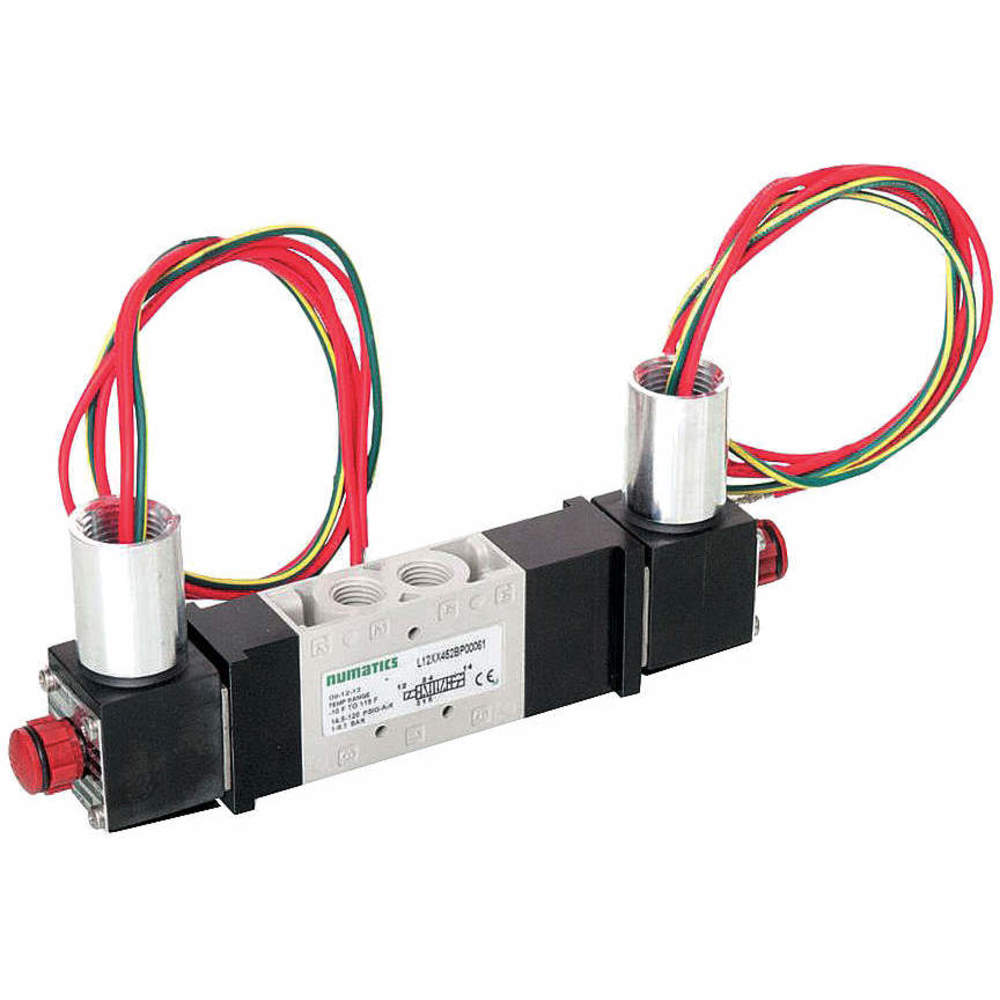

NUMATICS L12XX652OP00030 Hazardous Location Solenoid Air Control Valve 1/4 Inch 120vac
Item: AF8YZAModel: L12XX652OP00030Cross Ref: 29NU85
7 In Stock
Ships within 2 days via
10.00% off
€1,179.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Location Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Actuator/return | Solenoid Air Pilot |
| Ambient Temp. Range | -10°F to +115°F |
| Application | Automotive, Bottling, Pressing, Stamping, Tire Manufacturing |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Base Mounted, Inline |
| Center Position | Closed |
| Cfm | 46 CFM |
| Coefficient Of Volume | 1 |
| Duty Cycle | Continuous |
| Electrical Connection | Hardwired |
| Electrical Connection Type | Plug In |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| Flow Rate - Maximum | 46 CFM |
| For Media | Air, Inert Gas |
| Hazardous Location Class | Class I, Class Class Ii |
| Hazardous Location Division | Division I, Division Ii |
| Hazardous Location Group | Group C, Group D, Group E, Group F, Group G |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 5 |
| Number Of Positions | 3 |
| Number Of Ways | 5 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 14 psi |
| Operating Temperature - Maximum | 115°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 3 1/2" |
| Overall Length | 8" |
| Overall Width | 1 1/2" |
| Override | Non-Locking |
| Override | Non-Locking Flush |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/4" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/8" NPT |
| Pilot Pressure | 14.5 psi |
| Pilot Pressure | 14.5 to 100 psig |
| Pilot Type | Internal Pilot, Remote Pilot |
| Pipe Size | 1/4" |
| Poppet Material | Aluminum |
| Power Consumption | 4 W |
| Pressure Rating | 28 in. hg to 145 psig |
| Product Type | Solenoid Air Control Valve |
| Return Action | Solenoid Return |
| Series | L1 Series |
| Shifting Technology | Spool And Sleeve |
| Spool Material | Stainless Steel |
| Vacuum Range | 0 to 28" Hg |
| Vacuum Range | 0 in. hg to 28 in. hg |
| Vacuum Rating | Vacuum Operable |
| Valve Type | Spool |
| Voltage | 110-120V AC |
Shipping Info:
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 17.78 |
| HS code | 8481200060 |
Product Variants
| Model | Voltage | Pipe Size | Override | Overall Height | Overall Width | Body Style | Coefficient Of Volume | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 081SS500K000030 | 110-120V AC | 1/8" | Non-Locking | 3 1/32" | 2" | Base Mounted | - | 4 9/16" | €652.96 | |
| 081SS600K000030 | 110-120V AC | 1/4" | Non-Locking | 3 1/32" | 2" | Base Mounted | - | 4 9/16" | €657.00 | |
| 081SS400M000061 | 24V DC | 1/8" | Non-Locking | 3 1/32" | 2" | Base Mounted | - | 4 9/16" | €600.43 | |
| 081SS500M000061 | 24V DC | 1/8" | Non-Locking | 3 1/32" | 2" | Base Mounted | - | 4 9/16" | €644.28 | |
| 081SS600M000061 | 24V DC | 1/8" | Non-Locking | 3 1/32" | 2" | Base Mounted | - | 4 9/16" | €648.28 | |
| 152SS500K000030 | 120V AC | 1/4" | - | 1 1/2" | 1 3/8" | Body Ported | 1.5 | 8 7/8" | €724.77 | |
| 152SS600K000030 | 110-120V AC | 1/4" | Non-Locking | 3 5/16" | 2 5/32" | Base Mounted | 1.4 | 8 7/8" | €728.63 |
