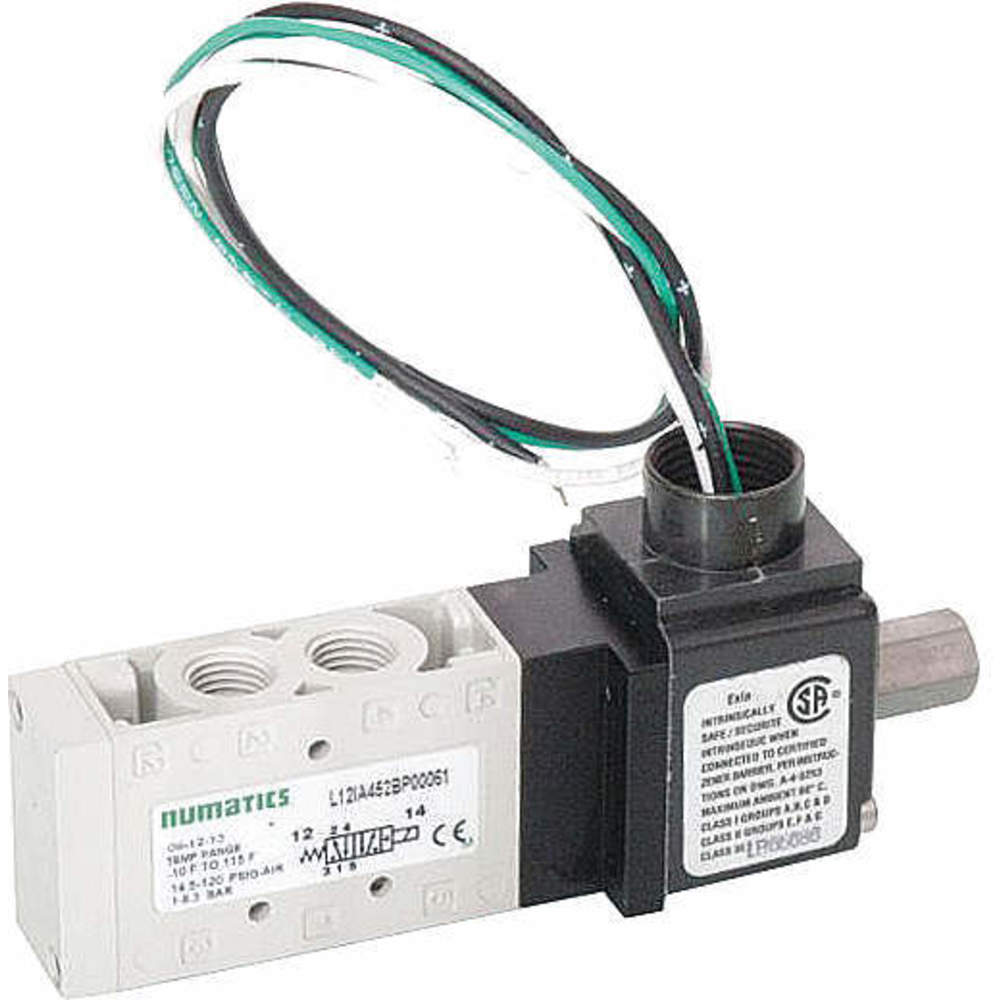

NUMATICS L12IA452BP00061 Hazardous Location Solenoid Air Control Valve 1/8 In 24vdc
Item: AF8YYUModel: L12IA452BP00061Cross Ref: 29NU79
7 In Stock
Ships within 2 days via
5.00% off
€1,051.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Location Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid Air Pilot/Spring |
| Ambient Temp. | -10°F to +115°F |
| Application | Automotive, Bottling, Pressing, Stamping, Tire Manufacturing |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Base Mounted, Inline |
| Center Position | Closed |
| Cfm | 46 CFM |
| Coefficient Of Volume | 1 |
| Duty Cycle | Continuous |
| Electrical Connection | Hardwired |
| Electrical Connection Type | Plug In |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| For Media | Air, Inert Gas |
| Included Mounting Hardware | Mounting Hardware Not Included |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Max. Flow Rate | 46 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 115°F |
| Min. Operating Pressure | 14 psi |
| Min. Operating Temp. | -10°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Ports | 5 |
| No. Of Positions | 2 |
| No. Of Ways | 5 |
| Overall Height | 3" |
| Overall Width | 1 1/2" |
| Override | Non Locking |
| Override | Non-Locking Flush |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/4" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/4" NPT |
| Pilot Pressure | 14.5 psi |
| Pilot Pressure | 14.5 to 120 psig |
| Pilot Type | Internal Pilot, Remote Pilot |
| Pipe Size | 1/8" |
| Poppet Material | Aluminum |
| Power Consumption | 3.5 W |
| Pressure Rating | 28 in. hg to 145 psig |
| Product Type | Solenoid Air Control Valve |
| Return Action | Spring Return |
| Series | L1 Series |
| Shifting Technology | Spool And Sleeve |
| Spool Material | Stainless Steel |
| Vacuum | 0 in. hg to 28 in. hg , Vacuum Operable |
| Vacuum Range | 0 to 28" Hg |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 17.78 |
| HS code | 8481200060 |
Product Variants
| Model | Voltage | Overall Width | Overall Height | Max. Flow Rate | Electrical Connection Type | Pressure Rating | Pressure | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 081SS500K000030 | 110-120V AC | 2" | 3 1/32" | 37 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 46 CFM | €652.96 | |
| 081SS600K000030 | 110-120V AC | 2" | 3 1/32" | 37 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 46 CFM | €657.00 | |
| 081SS400M000061 | 24V DC | 2" | 3 1/32" | 37 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 46 CFM | €600.43 | |
| 081SS500M000061 | 24V DC | 2" | 3 1/32" | 37 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 46 CFM | €644.28 | |
| 081SS600M000061 | 24V DC | 2" | 3 1/32" | 37 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 46 CFM | €648.28 | |
| 152SS500K000030 | 120V AC | 1 3/8" | 1 1/2" | - | - | 0 psi to 150 psi | 0 psi to 150 psi | 69 CFM | €724.77 | |
| 152SS600K000030 | 110-120V AC | 2 5/32" | 3 5/16" | 161 CFM | Plug In | 0 psi to 150 psi | 0 psi to 150 psi | 69 CFM | €728.63 |
