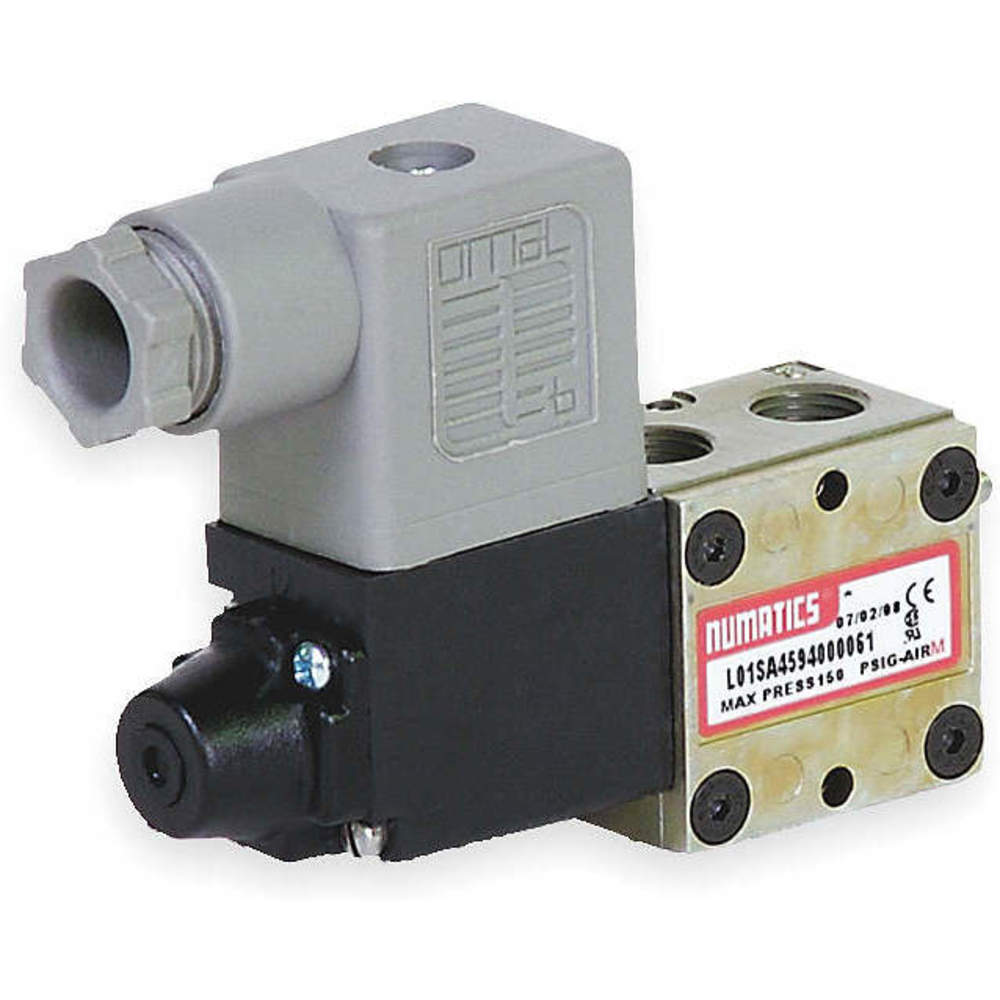

NUMATICS L01SA4872060T30 Solenoid Air Control Valve 1/8 Inch 120vac
Item: AC9QVCModel: L01SA4872060T30Cross Ref: 3JCL1
7 In Stock
Ships within 2 days via
10.00% off
€236.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | -10°F to +115°F |
| Application | Automotive, Bottling, High Cycle-Rate Machines, Pressing, Stamping, Tire Manufacturing |
| Body Features | Stackable |
| Body Material | Aluminum |
| Body Style | Base Mounted, Inline |
| Cfm | 9 CFM |
| Coefficient Of Volume | 0.2 |
| Duty Cycle | Continuous |
| Electrical Connection | DIN AC Plug-In Solenoid Or Air Pilot |
| Electrical Connection Type | Plug In |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | NPT |
| Flow Rate - Maximum | 9.3 CFM |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 14 psi |
| Operating Temperature - Maximum | 115°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 1 3/16" |
| Overall Length | 4 19/32" |
| Overall Width | 1 3/32" |
| Override | Non-Locking Flush |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/8" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/8" NPT |
| Pilot Pressure | 0 psi |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Power Consumption | 4.1 W |
| Pressure | 0 psi to 150 psi |
| Pressure Rating | 0 psi to 150 psi |
| Product Type | Solenoid Air Control Valve |
| Return Action | Spring Return |
| Series | L01 Series |
| Shifting Technology | Spool And Sleeve |
| Spool Material | Stainless Steel |
| Vacuum Range | 0 in. hg to 28 in. hg |
| Vacuum Range | 0 to 28" Hg |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 110-120V AC |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 3.56 |
| HS code | 8481200060 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Pipe Size | Body Style | Ambient Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
152SA400K000030 | 110-120V AC | 1.4 | 3 5/16" | 2 5/32" | 8 7/8" | 1/4" | Base Mounted | -10°F to +115°F | €511.36 | |
 |
152SA400M000061 | 24V DC | 1.4 | 3 5/16" | 2 5/32" | 9 29/32" | 1/4" | Base Mounted | -10°F to +115°F | €508.62 | |
 |
11SAD400C000030 | 110-120V AC | 0.4 | 2 23/32" | 1 11/16" | 4 9/32" | 1/8" | Base Mounted | -10°F to +115°F | €1,033.48 | |
 |
11SAD400O000030 | 110-120V AC | 0.4 | 2 23/32" | 1 11/16" | 4 9/32" | 1/8" | Base Mounted | -10°F to +115°F | €892.32 | |
|
11SAD400B000061 | 24V DC | 0.4 | 2 23/32" | 1 11/16" | 4 31/32" | 1/8" | Base Mounted | -10°F to +115°F | €880.40 | |
 |
11DSA400O000030 | 110-120V AC | 0.4 | 2 23/32" | 1 11/16" | 5 15/16" | 1/8" | Base Mounted | -10°F to +115°F | €1,259.07 | |
|
11SAD400E000061 | 24V DC | 0.4 | 2 23/32" | 1 11/16" | 4 31/32" | 1/8" | Base Mounted | -10°F to +115°F | €1,012.96 |
