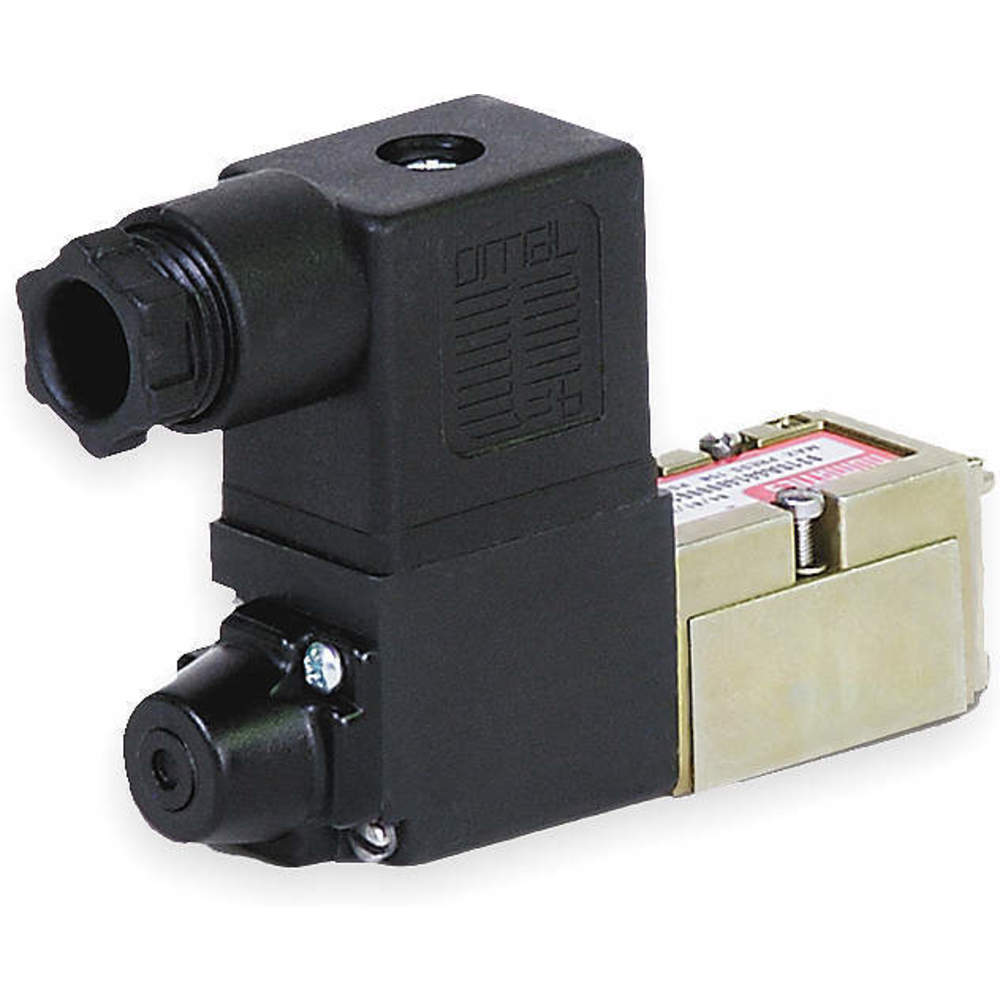

NUMATICS 031SA4002060T30 Solenoid Air Control Valve 1/8 Inch 120vac
Item: AC9QTXModel: 031SA4002060T30Cross Ref: 3JCG6
7 In Stock
Ships within 2 days via
10.00% off
€223.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | -10°F to +115°F |
| Application | Bottling, High Cycle-Rate Machines, Pressing, Stamping, Tire Manufacturing |
| Body Features | Single |
| Body Material | Steel |
| Cfm | 16 CFM |
| Coefficient Of Volume | 0.35 |
| Duty Cycle | Continuous |
| Electrical Connection | DIN AC Plug-In Solenoid |
| Electrical Connection Type | Plug In |
| Exhaust Port Connection Gender | Female |
| For Media | Air, Inert Gas |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Type | NPT |
| Maximum Flow Rate | 16.21 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 14 psi |
| Operating Temperature - Maximum | 115°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 1 21/32" |
| Overall Length | 4 7/8" |
| Overall Width | 1 3/8" |
| Override | Non-Locking Flush |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/8" NPT |
| Pilot Pressure | 0 psi |
| Pilot Type | Internal Pilot, Remote Pilot |
| Pipe Size | 1/8" |
| Poppet Material | Aluminum |
| Power Consumption | 4 W |
| Pressure | 0 psi to 150 psi |
| Pressure Rating | 0 psi to 150 psi |
| Product Type | Solenoid Air Control Valve |
| Return Action | Spring Return |
| Series | MARK 3 Series |
| Shifting Technology | Spool And Sleeve |
| Spool Material | Stainless Steel |
| Vacuum Range | 0 in. hg to 28 in. hg |
| Vacuum Range | 0 to 28" Hg |
| Vacuum Rating | Vacuum Operable |
| Valve Type | Spool |
| Voltage | 110-120V AC |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 6.35 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Pipe Size | Overall Width | Override | Coefficient Of Volume | Overall Height | Overall Length | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
081SA400K000030 | 110-120V AC | 1/4" | 2" | Non-Locking | - | 3 1/32" | 4 9/16" | Base Mounted | €386.96 | |
 |
081SS400K000030 | 110-120V AC | 1/4" | 2" | Non-Locking | - | 3 1/32" | 4 9/16" | Base Mounted | €609.58 | |
|
081SA400M000061 | 24V DC | 1/4" | 2" | Non-Locking | - | 3 1/32" | 4 9/16" | Base Mounted | €386.47 | |
 |
152SS400K000030 | 110-120V AC | 1/4" | 2 5/32" | Non-Locking | 1.4 | 3 5/16" | 8 7/8" | Base Mounted | €704.93 | |
 |
152SS400M000061 | 24V DC | 1/4" | 1 3/8" | - | 1.5 | 1 1/2" | - | Body Ported | €693.55 | |
 |
554SA400K000030 | 110-120V AC | 1/2" | 3 3/8" | Non-Locking | 5 | 4 1/4" | 8 1/2" | - | €755.05 | |
 |
554BA400K000030 | 110-120V AC | 1/2" | 3 3/8" | Non-Locking | 5 | 4 1/4" | 8 1/2" | Base Mounted | €1,068.99 |
