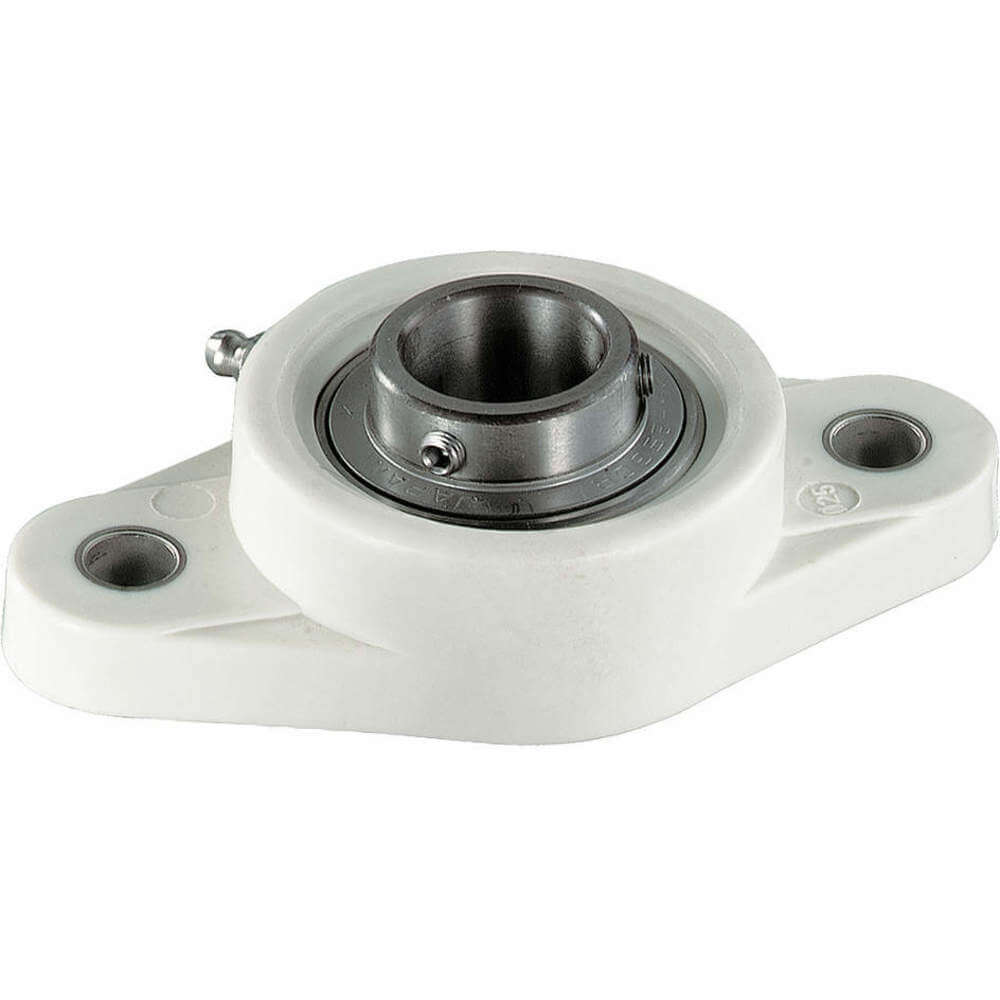

NTN ZUCNFL205-16 Mounted Ball Bearing 1 Inch Bore
Item: AG6TJCModel: ZUCNFL205-16Cross Ref: 46N881
7 In Stock
Ships within 2 days via
13.00% off
€206.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Application | Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Hole Size | 11 mm |
| Bore Dia. | 1" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Dynamic Load Capacity | 2680 lbf. |
| Expansion Type | Fixed |
| Finish | Zinc Plated |
| Flange Thickness | 33/64" |
| Grade | Grade 52100 |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Housing Material Grade | PBT - Thermoplastic |
| Housing Type | Rhombus |
| Included | (2) Set Screws |
| Included Bearing | ZUCNFL205-16 |
| Included Bearing Cap | None |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubrication Openings | None |
| Material | Steel |
| Max. Speed | 5100 RPM |
| Max. Temp. | 250°F |
| Min. Temp. | -2°F |
| Mount Hole Center To Center Length | 3 57/64" |
| Mounting Bolt Size | 7/16" |
| Mounting Hole Center | 99 mm |
| No. Of Bolts | 2 |
| No. Of Mount Holes | 2 |
| Overall Height | 2 3/4" |
| Overall Length | 5 1/8" |
| Overall Width | 1 7/16" |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 1420 lbs. |
| Static Radial Load Capacity | 1420 lbf. |
| Temp. | -2°F to +248°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 13.02 |
| Ship width (cm) | 3.65 |
| HS code | 8483204040 |
Product Variants
| Model | Housing Material | Bore Dia. | Overall Width | Insert Material | Finish | Overall Height | Dynamic Load Capacity | Static Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 44 1/2" | Chrome Plated | 3 9/64" | 3440 lbf. | 2580 lbs. | €505.48 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 3 33/64" | 4510 lbf. | 3510 lbs. | €595.60 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 3 33/64" | 4510 lbf. | 3510 lbs. | €615.78 | |
| SUCFL207-23 | Stainless Steel | 1 7/16" | 1 3/4" | 44 1/2" | Chrome Plated | 44.4 mm | 4520 lbs. | 3510 lbs. | €615.78 | |
| SUCF205-16N | Stainless Steel | 1" | 1 13/32" | Stainless Steel | Chrome | 3 3/4" | 2475 lbf. | 1800 lbs. | €347.78 | |
| SUCF206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 44 1/2" | Chrome Plated | 4 1/4" | 3440 lbf. | 2580 lbs. | €526.39 | |
| SUCF207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 4 19/32" | 4520 lbf. | 3510 lbs. | €629.21 |
