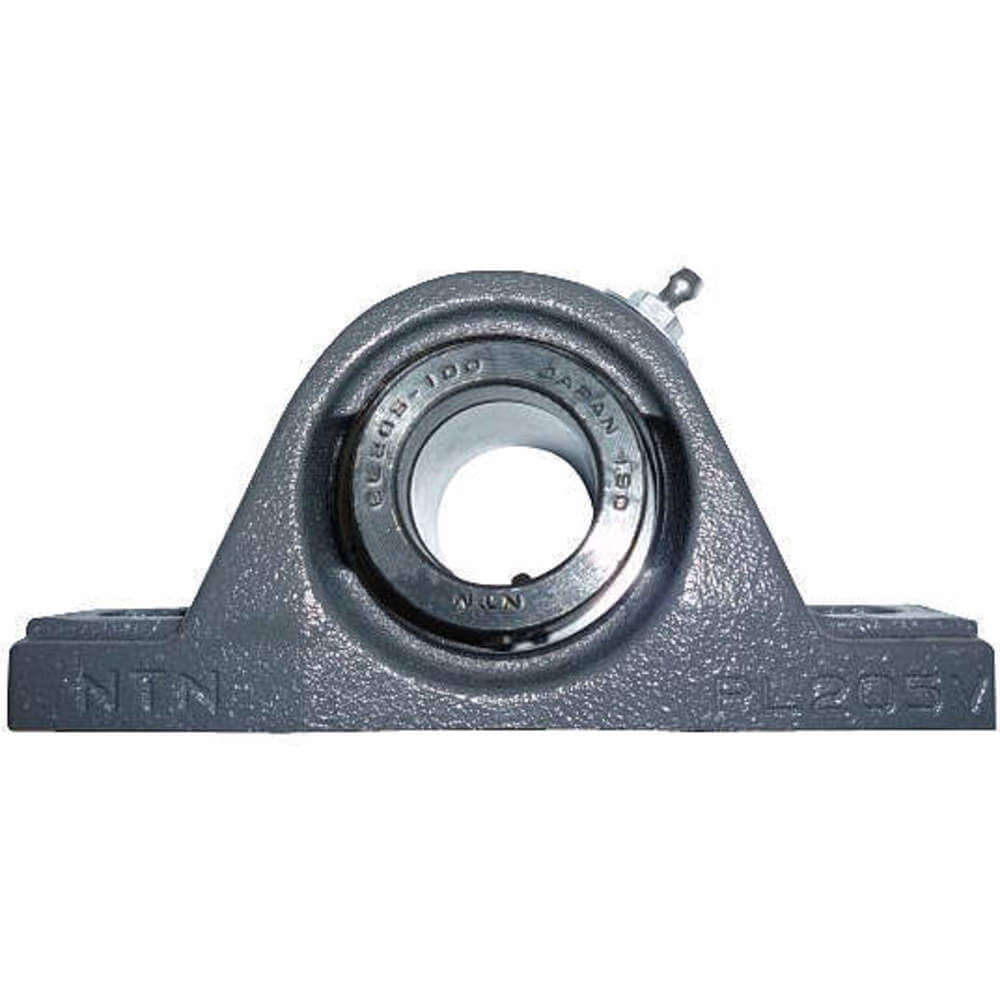

NTN UELPL-2M Mounted Ball Bearing 2 Inch Bore
Item: AE6HQLModel: UELPL-2MCross Ref: 5RZK4
7 In Stock
Ships within 2 days via
10.00% off
€412.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base Height | 0.905" |
| Base Width | 2.374" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 6 15/16" |
| Bolt Hole Size | 5/8" |
| Bolt Size | 5/8" |
| Bore Dia. | 2" |
| Bore Type | Cylindrical |
| Center Height | 2 27/64" |
| Closure | Open |
| Closure Type | Open |
| Color | Black |
| Dimension H | 2 7/16" |
| Dimension H1 | 29/32" |
| Dimension H2 | 4 7/8" |
| Dimension J | 6 15/16" |
| Dimension L | 8 5/8" |
| Dimension S | 1 3/32" |
| Dynamic Load Capacity | 9750 lbs. |
| Dynamic Radial Load Capacity | 9779 lbf. |
| Features | Light Duty |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Eccentric |
| Lubricant Material | Nlgi #3 Equivalent |
| Material | Steel |
| Maximum Speed | 2900 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 6 59/64" |
| Mount Hole Size | 0.72" x 1.157" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 5/8" |
| Mounting Hole Center | 6 15/16" |
| Mounting Surface To Shaft Center | 2 7/16" |
| Mounting Surface To Shaft Center Height | 2 27/64" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 4.874" |
| Overall Length | 8.626" |
| Overall Width | 2 3/8" |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Eccentric Collar |
| Static Load Capacity | 6550 lbs. |
| Static Radial Load Capacity | 6564 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 4.41 |
| Ship height (cm) | 12.38 |
| Ship length (cm) | 21.91 |
| Ship width (cm) | 6.03 |
| HS code | 8483204040 |
| Country of Origin | JP |
Product Variants
| Model | Housing Material | Overall Width | Overall Height | Overall Length | Shaft Locking Type | Mount Hole Center-to-center Length | Mounting Bolt Size | Closure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 37/64" | 3 9/64" | 5 17/32" | Set Screws | 4 39/64" | 1/2" | Double Sealed | €589.60 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €690.07 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €681.43 | |
| SUCFL207-23 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €676.38 | |
| SUCF205-16N | Stainless Steel | 1 13/32" | 3 3/4" | 3 3/4" | Set Screws | 2 3/4" | 3/8" | Double Sealed | €413.38 | |
| SUCF206-20 | Stainless Steel | 1 37/64" | 4 1/4" | 4 1/4" | Set Screws | 3 17/64" | 3/8" | Double Sealed | €596.80 | |
| SUCF207-22 | Stainless Steel | 1 3/4" | 4 19/32" | 4 19/32" | Set Screws | 3 5/8" | 1/2" | Double Sealed | €719.85 |
