NTN SUCTBL205-16CCFG1 Pillow Block Bearing, 1 Inch Bore Dia, Polymer, Open End Cap and Closed End Cap
Item: CT4GRKModel: SUCTBL205-16CCFG1Cross Ref: 406V68
7 In Stock
Ships within 2 days via
10.00% off
€481.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 0.55" |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 1" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Radial Load Capacity | 2470 lbf. |
| Grade | Grade 440C |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Includes | Open End Cap And Closed End Cap |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Max. Temp. | 212°F |
| Min. Temp. | 14°F |
| Mount Hole Center-to-center Length | 2" |
| Mounting Bolt Size | 3/8"-16 |
| Mounting Surface To Shaft Center (height) | 1.437" |
| Mounting Surface To Shaft Center Height | 1 7/16" |
| Mounting Type | Tapped Base |
| Number Of Mounting Holes | 2 |
| Overall Height | 2 7/8" |
| Overall Length | 3" |
| Overall Width | 2 3/4" |
| Seal Type | Contact |
| Series | TBL-FG1 Series |
| Shaft Locking Type | Set Screws |
| Standards | Nsf H1 |
| Static Radial Load Capacity | 1800 lbf. |
| Sub-brand | Sentinel |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 7.3 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.99 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Mount Hole Center-to-center Length | Mounting Bolt Size | Housing Material | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

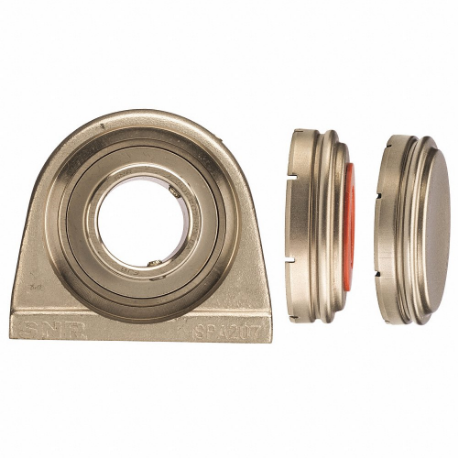

SUCPA208-24CCFG1 | 1 1/2" | 4.606" | 2.669" | 3.937" | 3 1/2" | M12 | Stainless Steel | 250°F | €1,124.71 | |
 |

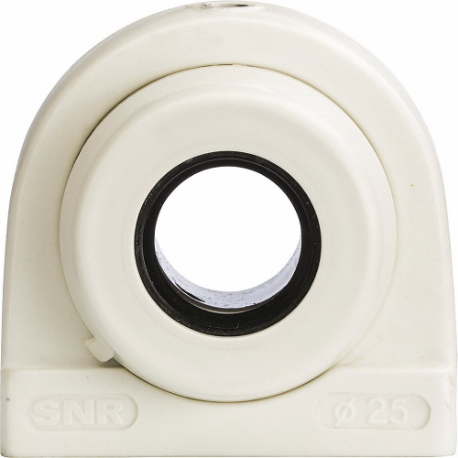

SUCTBL208-24C0FG1 | 1 1/2" | 4.718" | 4.062" | 4.343" | 3 1/2" | 1/2"-13 | Polymer | 212°F | €889.89 | |
 |

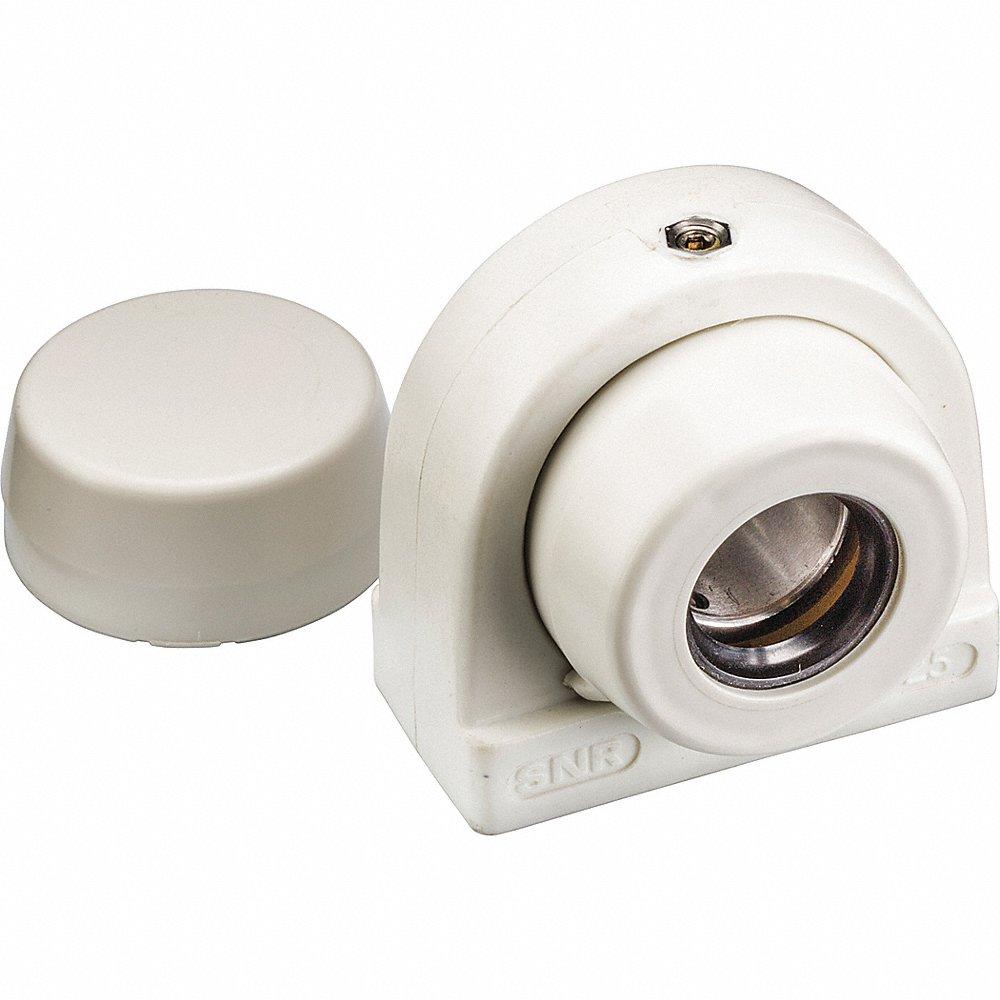

SUCTBL208-24CCFG1 | 1 1/2" | 4.718" | 4.062" | 4.343" | 3 1/2" | 1/2"-13 | Polymer | 212°F | €871.78 | |
 |

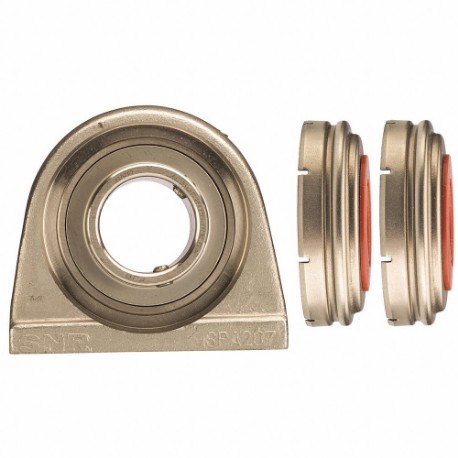

SUCPA208-24C0FG1 | 1 1/2" | 4.606" | 2.669" | 3.937" | 3 1/2" | M12 | Stainless Steel | 250°F | €1,204.11 | |
|
SUCTBL207-20C0FG1 | 1 1/4" | 4.328" | 3 1/2" | 3.734" | 3 1/4" | 1/2"-13 | Polymer | 212°F | €775.22 | |
|
SUCTBL206-20CCFG1 | 1 1/4" | 3.968" | 3.187" | 3.296" | 3" | 7/16"-14 | Polymer | 212°F | €670.53 | |
|
SUCPA210-31CCFG1 | 1.938" | 5.511" | 2.937" | 4.606" | 4" | M16 | Stainless Steel | 250°F | €1,456.80 |
