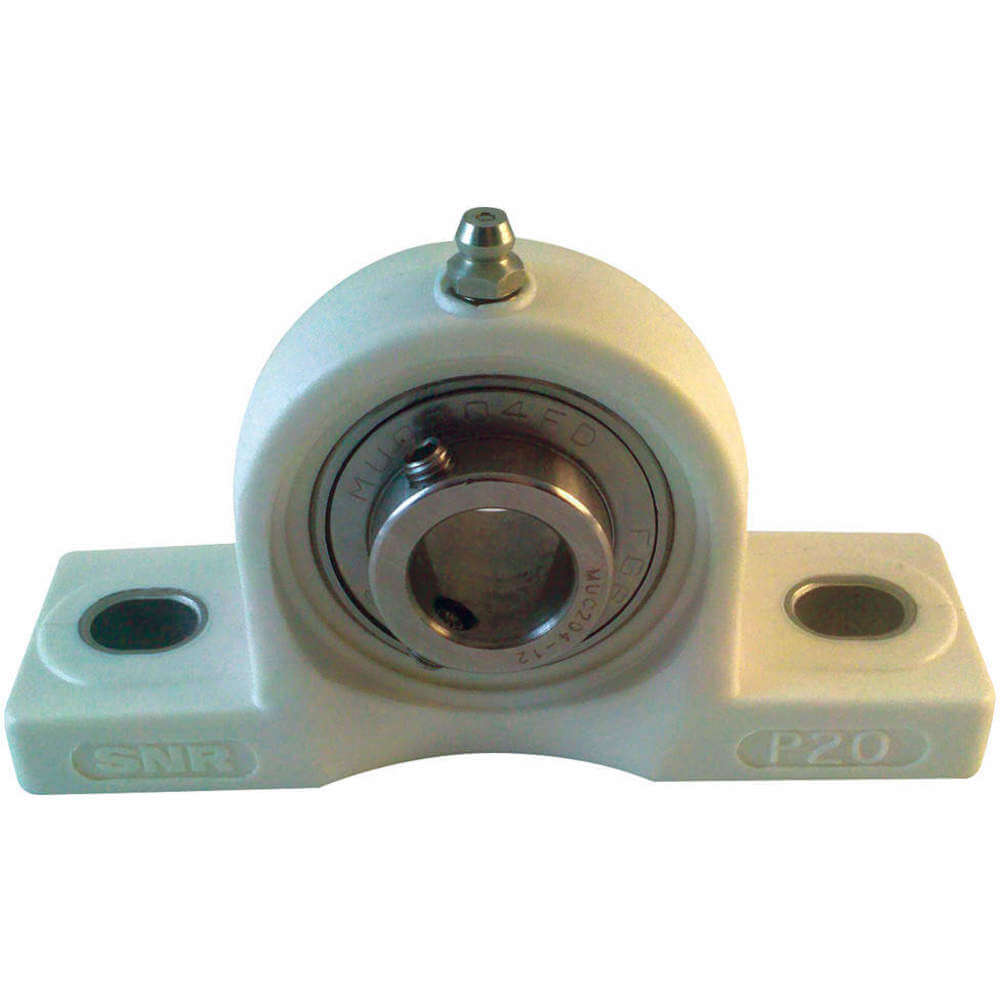

NTN SUCPPL206 Mounted Ball Bearing 30mm Bore
Item: AE6KWJModel: SUCPPL206Cross Ref: 5TPV1
7 In Stock
Ships within 2 days via
13.00% off
€417.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base Height | 17.8 mm |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bolt Hole Size | 12 mm |
| Bore Dia. | 30 mm |
| Closure | Double Sealed |
| Color | White |
| Dynamic Radial Load Capacity | 16 kN |
| Finish | None |
| Grade | Grade 52100 |
| Housing Material | Polymer |
| Housing Material Grade | PBT |
| Inner Ring Width | 38.1 mm |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Material | Steel |
| Max. Temp. | 100°C |
| Min. Temp. | -20°C |
| Mount Hole Center To Center Length | 119 mm |
| Mount Hole Size | 14 mm |
| Mounting Bolt Size | M10 |
| Mounting Hole Center | 119 mm |
| Mounting Surface To Shaft Center | 42.9 mm |
| Mounting Surface To Shaft Center Height | 42.8 mm |
| Mounting Type | Bolt Through |
| No. Of Bolts | 2 |
| No. Of Mount Holes | 2 |
| Overall Height | 83 mm |
| Overall Length | 162 mm |
| Overall Width | 46 mm |
| Resistance Properties | Corrosion Resistant |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 2030 lbs. |
| Static Radial Load Capacity | 9 kN |
| Temp. | -4°F to +230°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 8.3 |
| Ship length (cm) | 16.2 |
| Ship width (cm) | 4.6 |
| HS code | 8483204040 |
| Country of Origin | FR |
Product Variants
| Model | Housing Material | Bore Dia. | Overall Width | Insert Material | Finish | Overall Height | Dynamic Load Capacity | Static Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 44 1/2" | Chrome Plated | 3 9/64" | 3440 lbf. | 2580 lbs. | €505.48 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 3 33/64" | 4510 lbf. | 3510 lbs. | €595.60 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 3 33/64" | 4510 lbf. | 3510 lbs. | €615.78 | |
| SUCFL207-23 | Stainless Steel | 1 7/16" | 1 3/4" | 44 1/2" | Chrome Plated | 44.4 mm | 4520 lbs. | 3510 lbs. | €615.78 | |
| SUCF205-16N | Stainless Steel | 1" | 1 13/32" | Stainless Steel | Chrome | 3 3/4" | 2475 lbf. | 1800 lbs. | €347.78 | |
| SUCF206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 44 1/2" | Chrome Plated | 4 1/4" | 3440 lbf. | 2580 lbs. | €526.39 | |
| SUCF207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 44 1/2" | Chrome Plated | 4 19/32" | 4520 lbf. | 3510 lbs. | €629.21 |
