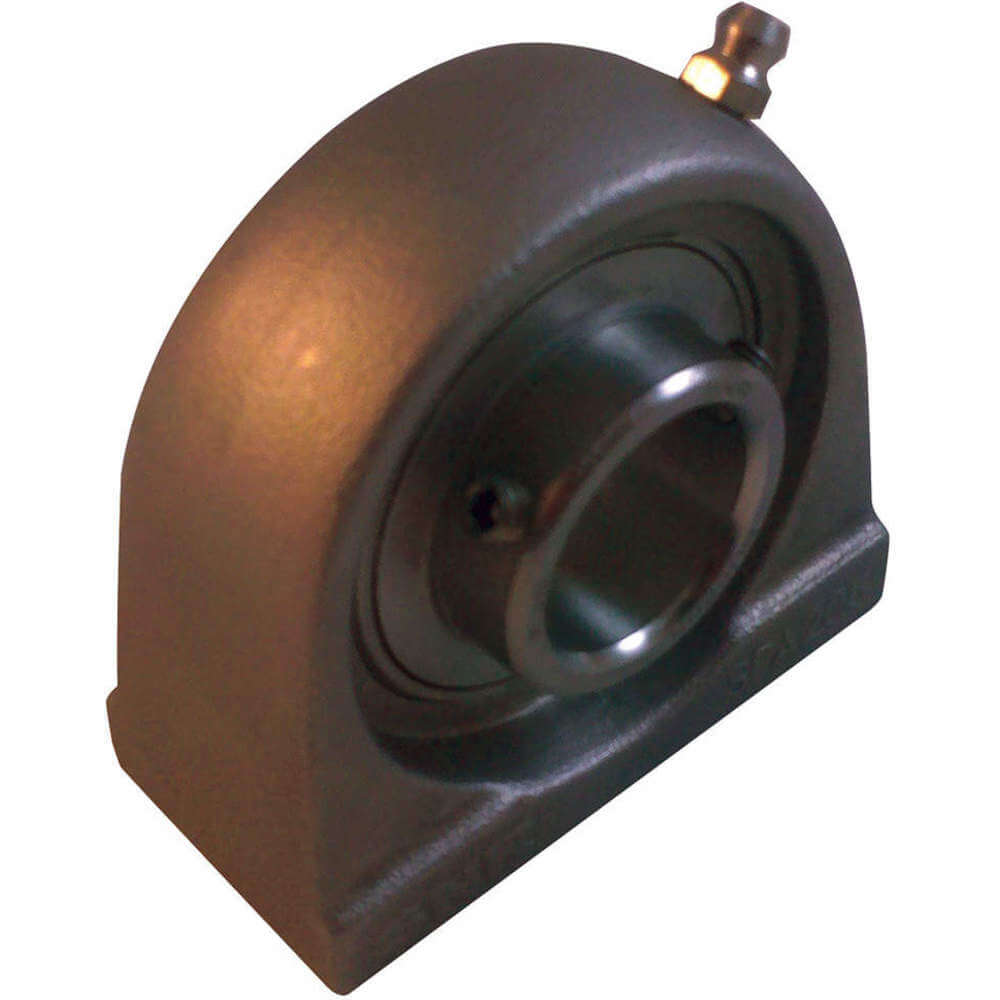

NTN SUCPA206-19 Mounted Ball Bearing 1-3/16 Inch Bore
Item: AE7NDZModel: SUCPA206-19Cross Ref: 5ZNC4
7 In Stock
Ships within 2 days via
10.00% off
€620.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base Height | 0.472" |
| Base Width | 1.496" |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 1.187" |
| Bore Diameter | 1 3/16" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Color | Silver |
| Dynamic Load Capacity | 3440 lbs. |
| Dynamic Radial Load Capacity | 3440 lbf. |
| Features | Normal Duty |
| Finish | Chrome Plated |
| Housing Material | Stainless Steel |
| Housing Material Finish | Chrome Plated |
| Inner Ring Width | 1 1/2" |
| Insert | Ball Bearing |
| Insert Material | 44 1/2" |
| Insert Size | 44 1/2" |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Material | Steel |
| Maximum Speed | 4300 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -4°F |
| Mount Hole Center-to-center Length | 3" |
| Mount Hole Size | M10 |
| Mount Type | Bolt Through |
| Mounting Bolt Size | M10 |
| Mounting Hole Center | 76.2 mm |
| Mounting Surface To Shaft Center | 42.9 mm |
| Mounting Surface To Shaft Center Height | 1 11/16" |
| Number Of Bolts | 2 |
| Number Of Mount Holes | 2 |
| Overall Height | 3.385" |
| Overall Length | 4.015" |
| Overall Width | 1.496" |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 2580 lbs. |
| Static Radial Load Capacity | 2585 lbf. |
| Temp. Range | -4°F to +248°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 1.24 |
| Ship height (cm) | 8.6 |
| Ship length (cm) | 10.2 |
| Ship width (cm) | 3.8 |
| HS code | 8483204040 |
| Country of Origin | FR |
Product Variants
| Model | Housing Material | Overall Width | Overall Height | Overall Length | Shaft Locking Type | Mount Hole Center-to-center Length | Mounting Bolt Size | Closure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 37/64" | 3 9/64" | 5 17/32" | Set Screws | 4 39/64" | 1/2" | Double Sealed | €589.60 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €690.07 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €681.43 | |
| SUCFL207-23 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €676.38 | |
| SUCF205-16N | Stainless Steel | 1 13/32" | 3 3/4" | 3 3/4" | Set Screws | 2 3/4" | 3/8" | Double Sealed | €413.38 | |
| SUCF206-20 | Stainless Steel | 1 37/64" | 4 1/4" | 4 1/4" | Set Screws | 3 17/64" | 3/8" | Double Sealed | €596.80 | |
| SUCF207-22 | Stainless Steel | 1 3/4" | 4 19/32" | 4 19/32" | Set Screws | 3 5/8" | 1/2" | Double Sealed | €719.85 |
