NTN SUCP212-39CCFG1 Pillow Block Bearing, 2 7/16 Inch Bore, Stainless Steel, Set Screws
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,508.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 0.984" |
| Base Width | 2.755" |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 2.438" |
| Bore Diameter | 2 7/16" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Radial Load Capacity | 9217 lbf. |
| Features | Light Duty |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Material Grade | Grade 304 |
| Includes | Open End Cap And Closed End Cap |
| Inner Ring Width | 2.563" |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Max. Speed | 1900 RPM |
| Max. Temp. | 250°F |
| Min. Temp. | -4°F |
| Mount Hole Center-to-center Length | 7 15/64" |
| Mount Hole Size | 0.787" x 0.984" |
| Mounting Bolt Size | 5/8" |
| Mounting Surface To Shaft Center (height) | 2.734" |
| Mounting Surface To Shaft Center Height | 2 47/64" |
| Mounting Type | Bolt Through |
| Number Of Mounting Holes | 2 |
| Overall Height | 5.433" |
| Overall Length | 9.488" |
| Overall Width | 3.594" |
| Resistance Properties | Corrosion Resistant |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Standards | FDA |
| Static Radial Load Capacity | 7081 lbf. |
| Sub-brand | Sentinel |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 13.8 |
| Ship length (cm) | 24.1 |
| Ship width (cm) | 9.13 |
Product Variants
| Product | Model | Housing Material | Bore Dia. | Overall Length | Overall Width | Overall Height | Mount Hole Center-to-center Length | Closure | Mounting Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

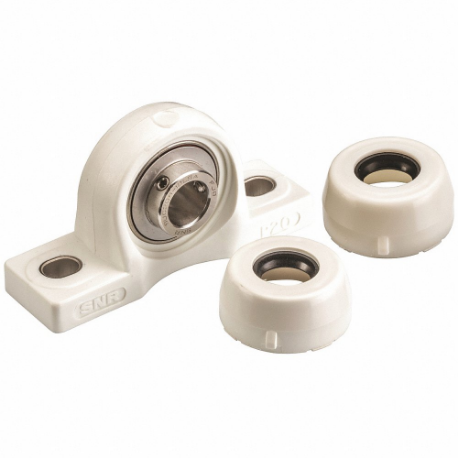

SUCPPL208-24C0FG1 | Polymer | 1 1/2" | 7.234" | 2 1/8" | 3.843" | 5 25/64" | Double Sealed | 1/2" | €889.89 | |
 |

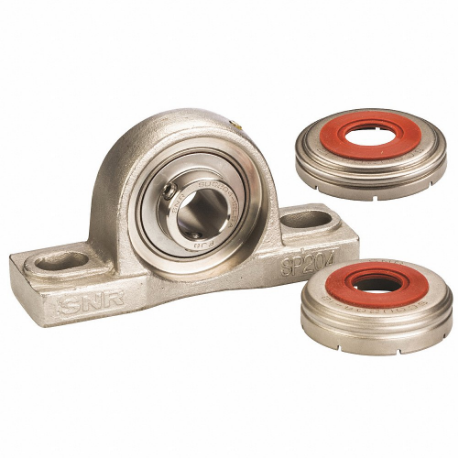

SUCP208-24C0FG1 | Stainless Steel | 1 1/2" | 7.244" | 2.728" | 3.937" | 5 11/32" | Open | 1/2" | €1,205.42 | |
|
SUCPPL206-20C0FG1 | Polymer | 1 1/4" | 6 3/8" | 1.796" | 3.265" | 4.672" | - | 1/2" | €679.76 | |
 |

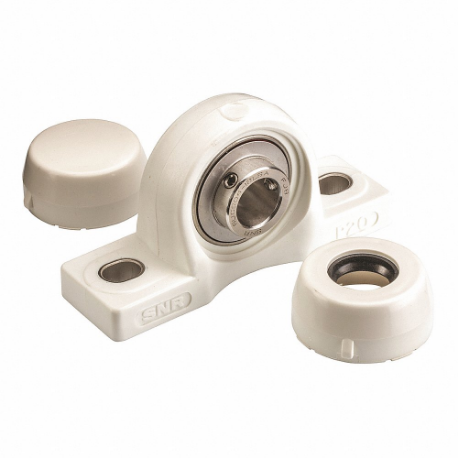

SUCPPL206-20CCFG1 | Polymer | 1 1/4" | 6 3/8" | 1.796" | 3.265" | 4 43/64" | Double Sealed | 1/2" | €646.00 | |
|
SUCPPL207-20C0FG1 | Polymer | 1 1/4" | 6.562" | 1 7/8" | 3.687" | 5" | Double Sealed | 1/2" | €775.22 | |
|
SUCP206-20C0FG1 | Stainless Steel | 1 1/4" | 6.496" | 2.059" | 3.267" | 4 3/4" | Open | 1/2" | €789.08 | |
|
SUCP206-20CCFG1 | Stainless Steel | 1 1/4" | 6.496" | 2.059" | 3.267" | 4 3/4" | Double Sealed | 1/2" | €841.31 |
