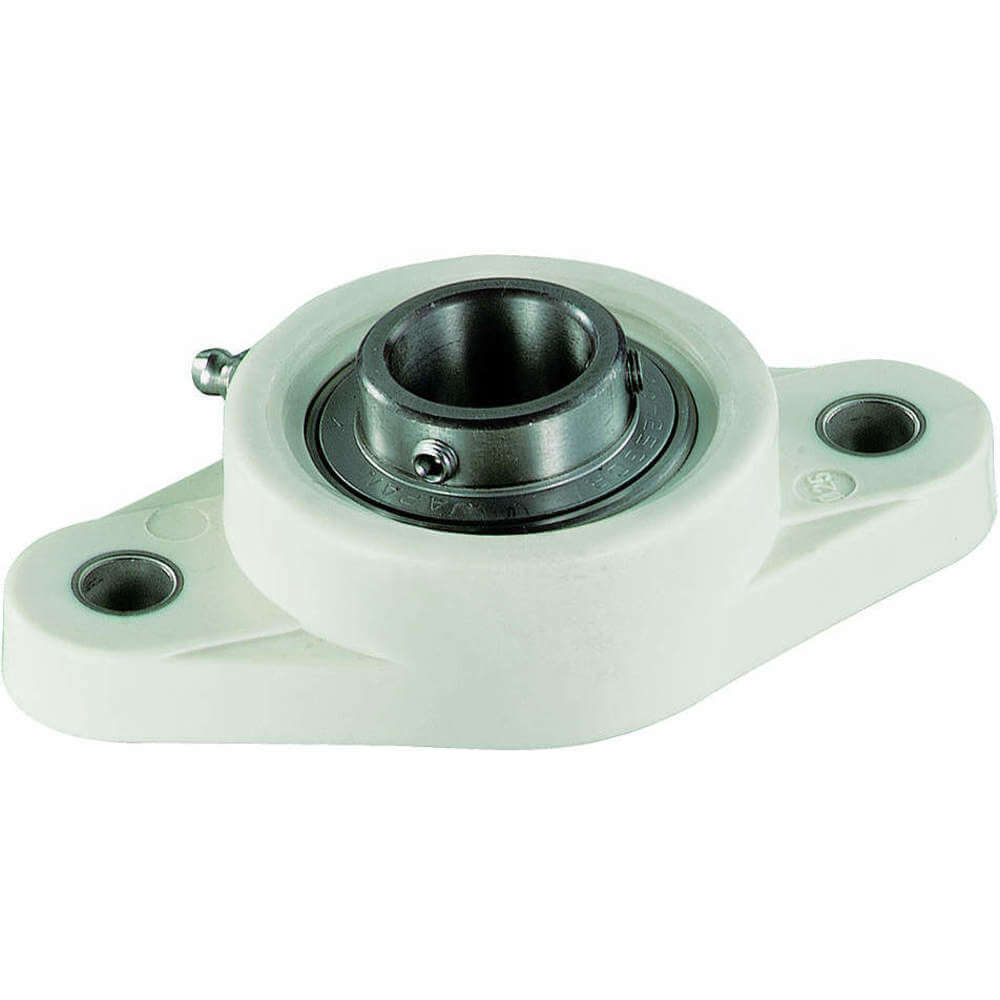

NTN SUCNFL208 Mounted Ball Bearing 40mm Bore
Item: AE6KXFModel: SUCNFL208Cross Ref: 5TPX1
7 In Stock
Ships within 2 days via
€549.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Application | Food And Beverage |
| Back Side To Center Width | 21.5 mm |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bolt Hole Size | 14 mm |
| Bore Dia. | 40 mm |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Color | White |
| Dimension L | 100mm |
| Dimensions A | 174.6 mm |
| Dimensions B | 49.2 mm |
| Dimensions E | 144 mm |
| Dimensions G | 20 mm |
| Dimensions L | 100 mm |
| Dynamic Load Capacity | 22800N |
| Expansion Type | Fixed |
| Finish | None |
| Flange Thickness | 20 mm |
| Grade | Grade 52100 |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Housing Material Grade | PBT - Thermoplastic |
| Housing Type | Rhombus |
| Included | (2) Set Screws |
| Included Bearing | Suc208 |
| Included Bearing Cap | None |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Material | Steel |
| Max. Speed | 3300 RPM |
| Max. Temp. | 120°C |
| Min. Temp. | -20°C |
| Mount Hole Center To Center Length | 144 mm |
| Mount Hole Size | 14 mm |
| Mounting Bolt Size | M12 |
| Mounting Hole Center | 144 mm |
| No. Of Bolts | 2 |
| No. Of Mount Holes | 2 |
| Overall Height | 100 mm |
| Overall Width | 51.7 mm |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 3210 lbs. |
| Static Radial Load Capacity | 18200N |
| Temp. | -4°F to +230°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 10 |
| Ship length (cm) | 17.5 |
| Ship width (cm) | 5.17 |
| HS code | 8483204040 |
| Country of Origin | FR |
Product Variants
| Model | Housing Material | Bore Dia. | Overall Width | Overall Height | Overall Length | Shaft Locking Type | Mounting Bolt Size | Closure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 3 9/64" | 5 17/32" | Set Screw | 1/2" | Double Sealed | €454.93 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 3 33/64" | 5 1/8" | Set Screw | 1/2" | Double Sealed | €565.82 | |
| SUCFL207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 3 33/64" | 5 1/8" | Set Screw | 1/2" | Double Sealed | €584.99 | |
| SUCFL207-23 | Stainless Steel | 1 7/16" | 1 3/4" | 44.4 mm | 5 1/8" | Set Screw | 1/2" | Double Sealed | €584.99 | |
| SUCF205-16N | Stainless Steel | 1" | 1 13/32" | 3 3/4" | 3 3/4" | Set Screw | 3/8" | Double Sealed | €313.00 | |
| SUCF206-20 | Stainless Steel | 1 1/4" | 1 37/64" | 4 1/4" | 4 1/4" | Set Screw | 3/8" | Double Sealed | €473.75 | |
| SUCF207-22 | Stainless Steel | 1 3/8" | 1 3/4" | 4 19/32" | 4 19/32" | Set Screw | 1/2" | Double Sealed | €597.75 |
