NTN NU226EG1C3 Cylindrical Bearing 130mm Bore 230mm Od
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,308.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylindrical Roller Bearing |
| Bearing Industry Number | 226 |
| Bore Dia. | 130 mm |
| Bore Diameter Tolerance | -0.025 mm to 0 mm |
| Bore Type | Cylindrical |
| Cage Material | Brass |
| Closure | Open |
| Closure Type | Open |
| Dynamic Load Capacity | 82052 lbs. |
| Dynamic Radial Load Capacity | 365000N |
| Fillet Radii | 3.0 / 3.0 mm |
| Fillet Radii | 3 mm |
| Full Complement | No |
| Housing Fillet Radius | 2.5 mm |
| Includes Retaining Ring | No |
| Inner Ring Flanges | 0 |
| Inner Ring Outside Dia. | 153.5 mm |
| Inner Ring Outside Diameter | 143 mm |
| Iso Rating | Class 0 |
| Lubricant Material | Grease, Oil |
| Max. Speed | 2600/3100 RPM |
| Maximum Temperature | 120°C |
| Minimum Temperature | -40°C |
| Number Of Inner Ring Flanges | 0 |
| Number Of Outer Ring Flanges | 2 |
| Number Of Rows | 1 |
| Outer Ring Flanges | 2 |
| Outer Ring Inside Diameter | 217 mm |
| Outside Dia. | 230 mm |
| Outside Diameter Tolerance | -0.03 mm to 0 mm |
| Overall Width | 40 mm |
| Rbec Rating | 1 |
| Retaining Ring Diameter | Not Applicable |
| Retaining Ring Groove | Not Applicable |
| Retaining Ring Material | Not Applicable |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Roller Material | Alloy Steel |
| Roller Material Grade | Grade 52100 |
| Seal Material | Not Applicable |
| Seal Type | Not Applicable |
| Shaft Fillet Radius | 3 mm |
| Split Bearing | Yes |
| Static Load Capacity | 102284 lbs. |
| Static Radial Load Capacity | 455000N |
| System Of Measurement | Metric |
| Temp. Range | -13° to +250° |
| Tolerance | -0.015 mm to 0 mm |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 6.6 |
| Ship height (cm) | 23 |
| Ship length (cm) | 23 |
| Ship width (cm) | 4 |
| HS code | 8482500000 |
| Country of Origin | JP |
Product Variants
| Model | Bore Dia. | Bore Type | Number Of Rows | Outside Dia. | Temp. Range | Roller Material | Iso Rating | Rbec Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

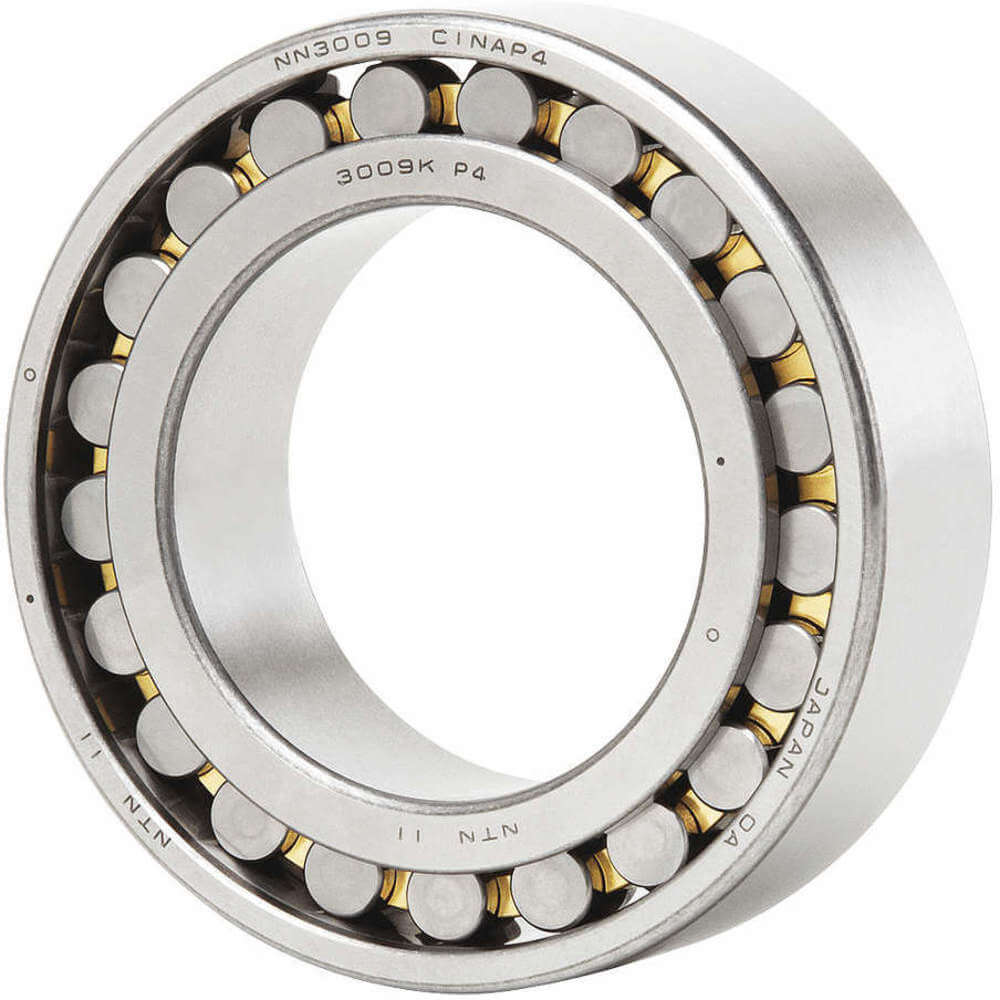

| NN3019KC1NAP4 | 95 mm | Tapered 1:12 | 2 | 145 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €1,842.54 | |
| NN3020KC1NAP4 | 100 mm | Tapered 1:12 | 2 | 150 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €1,819.49 | |
| NN3021KC1NAP4 | 105 mm | Tapered 1:12 | 2 | 160 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €1,994.61 | |
| NN3022KC1NAP4 | 110 mm | Tapered 1:12 | 2 | 170 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €2,379.04 | |
| NN3024KC1NAP4 | 120 mm | Tapered 1:12 | 2 | 180 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €2,612.60 | |
| NN3008KC1NAP4 | 40 mm | Tapered 1:12 | 2 | 68 mm | -20° to +250° | Alloy Steel | Class 4 | 7 | €984.53 | |
| NN3009KC1NAP4 | 45 mm | Tapered 1:12 | 2 | - | -20° to +250° | Alloy Steel | Class 4 | 7 | €1,042.62 |
