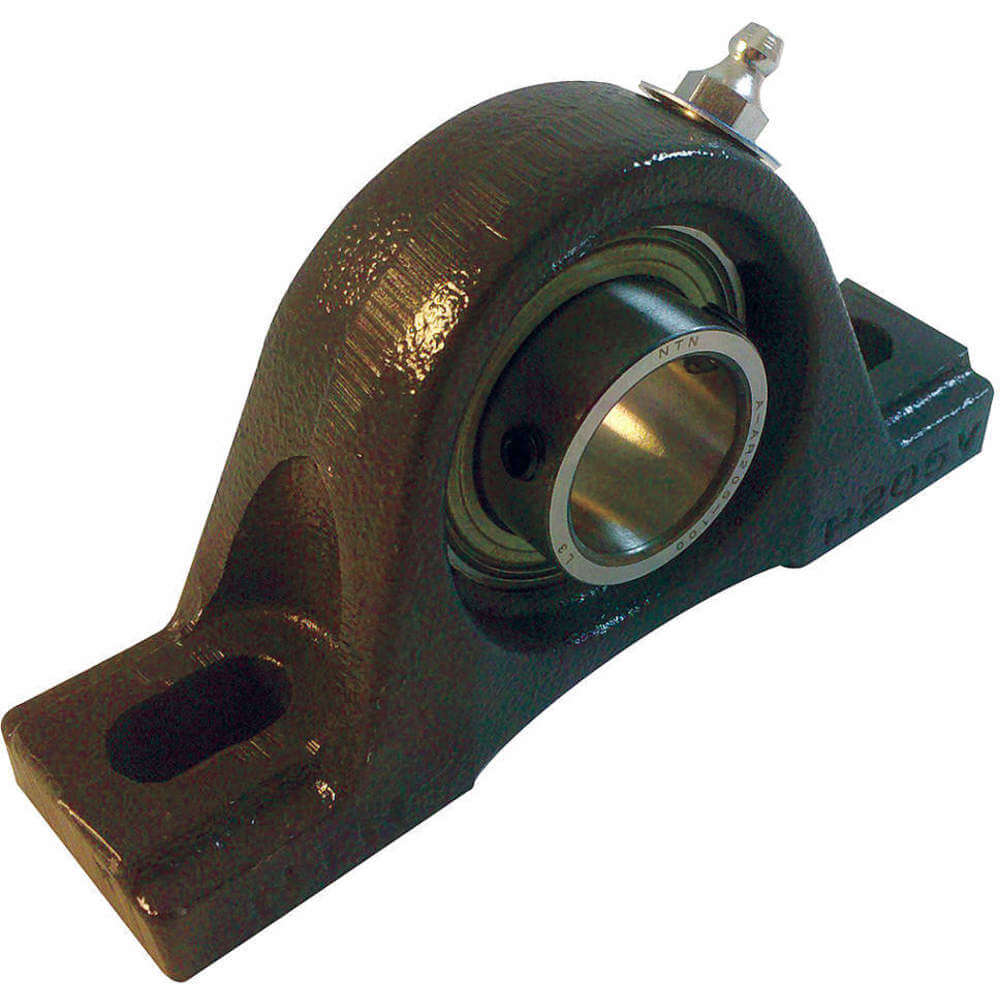

NTN ARP-1 Mounted Ball Bearing 1 Inch Bore
Item: AE7NCFModel: ARP-1Cross Ref: 5ZMW9
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base Height | 0.594" |
| Base Width | 1.5" |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Hole Size | 3/8" |
| Bolt Size | 3/8" |
| Bore Diameter | 1" |
| Closure | Open |
| Color | Black, Silver |
| Dynamic Load Capacity | 3150 lbs. |
| Dynamic Radial Load Capacity | 3147 lbf. |
| Features | Light Duty |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Inner Ring Width | 1.063" |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #3 Equivalent |
| Material | Steel |
| Maximum Speed | 5900 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 4 1/8" |
| Mount Hole Size | 0.437" x 0.811" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | M10 |
| Mounting Hole Center | 4 1/8" |
| Mounting Surface To Shaft Center Height | 1 27/64" |
| Number Of Bolts | 2 |
| Number Of Mount Holes | 2 |
| Overall Height | 2.779" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/2" |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 1765 lbf. |
| Temp. Range | -20°F to +250°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 7.06 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 3.81 |
| HS code | 8483204040 |
| Country of Origin | JP |
Product Variants
| Model | Housing Material | Overall Width | Overall Height | Overall Length | Shaft Locking Type | Mount Hole Center-to-center Length | Mounting Bolt Size | Closure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCFL206-20 | Stainless Steel | 1 37/64" | 3 9/64" | 5 17/32" | Set Screws | 4 39/64" | 1/2" | Double Sealed | €589.60 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €690.07 | |
| SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €681.43 | |
| SUCFL207-23 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | €676.38 | |
| SUCF205-16N | Stainless Steel | 1 13/32" | 3 3/4" | 3 3/4" | Set Screws | 2 3/4" | 3/8" | Double Sealed | €413.38 | |
| SUCF206-20 | Stainless Steel | 1 37/64" | 4 1/4" | 4 1/4" | Set Screws | 3 17/64" | 3/8" | Double Sealed | €596.80 | |
| SUCF207-22 | Stainless Steel | 1 3/4" | 4 19/32" | 4 19/32" | Set Screws | 3 5/8" | 1/2" | Double Sealed | €719.85 |
