NTN 6311C3 Radial Ball Bearing Pressed Steel 29mm W
Item: AE2YCKModel: 6311C3Cross Ref: 4ZXK4
7 In Stock
Ships within 2 days via
10.00% off
€283.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Radial Ball Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Ball Material | Alloy Steel |
| Bearing Industry Number | 6311 |
| Bearing Material | Steel |
| Bearing Type | Open |
| Bore Dia. | 55 mm |
| Bore Diameter Tolerance | -0.015 mm to 0 mm |
| Cage Material | Steel |
| Cage Type | Pressed |
| Closure | Open |
| Closure & Seal Type | Open |
| Dynamic Load Capacity | 16100 lbs. |
| Dynamic Radial Load Capacity | 79500N |
| Fillet Radius | 2 mm |
| Finish | Chrome Plated |
| Includes Retaining Ring | No |
| Iso Rating | Class 0 |
| Max. Speed | 5800 RPM |
| Maximum Speed | 6800 RPM |
| Maximum Temperature | 120°C |
| Minimum Temperature | -40°C |
| Number Of Rows | 1 |
| Outer Ring Width | 29 mm |
| Outside Dia. | 120 mm |
| Outside Diameter Tolerance | -0.015 mm to 0 mm |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Seal/shield Type | Open |
| Static Load Capacity | 10100 lbs. |
| Static Radial Load Capacity | 45000N |
| System Of Measurement | Metric |
| Width | 29 mm |
Shipping Info:
| Ship weight (kg) | 1.36 |
| Ship height (cm) | 12 |
| Ship length (cm) | 12 |
| Ship width (cm) | 2.9 |
| HS code | 8482105056 |
| Country of Origin | JP |
Product Variants
| Model | Bore Dia. | Outer Ring Width | Outside Dia. | Max. Speed | Static Radial Load Capacity | Dynamic Radial Load Capacity | Fillet Radius | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

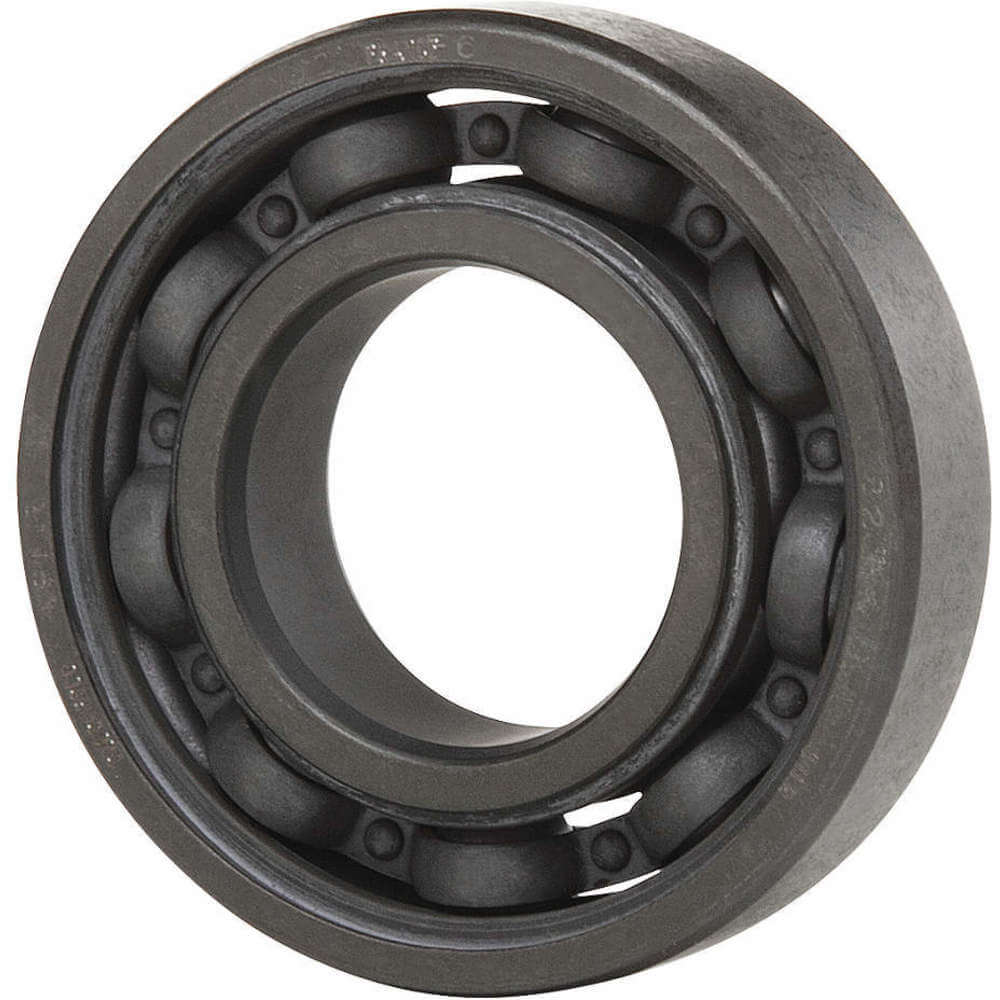

| 6205F600 | 25 mm | 15 mm | 52 mm | 50 RPM | 7850N | 15200N | 1 mm | - | €171.82 | |
| 6206F600 | 30 mm | 16 mm | 62 mm | 50 RPM | 11300N | 21600N | 1 mm | - | €143.91 | |
| 6305F600 | 25 mm | 17 mm | 62 mm | 50 RPM | 10900N | 23500N | 1.1 mm | - | €141.41 | |

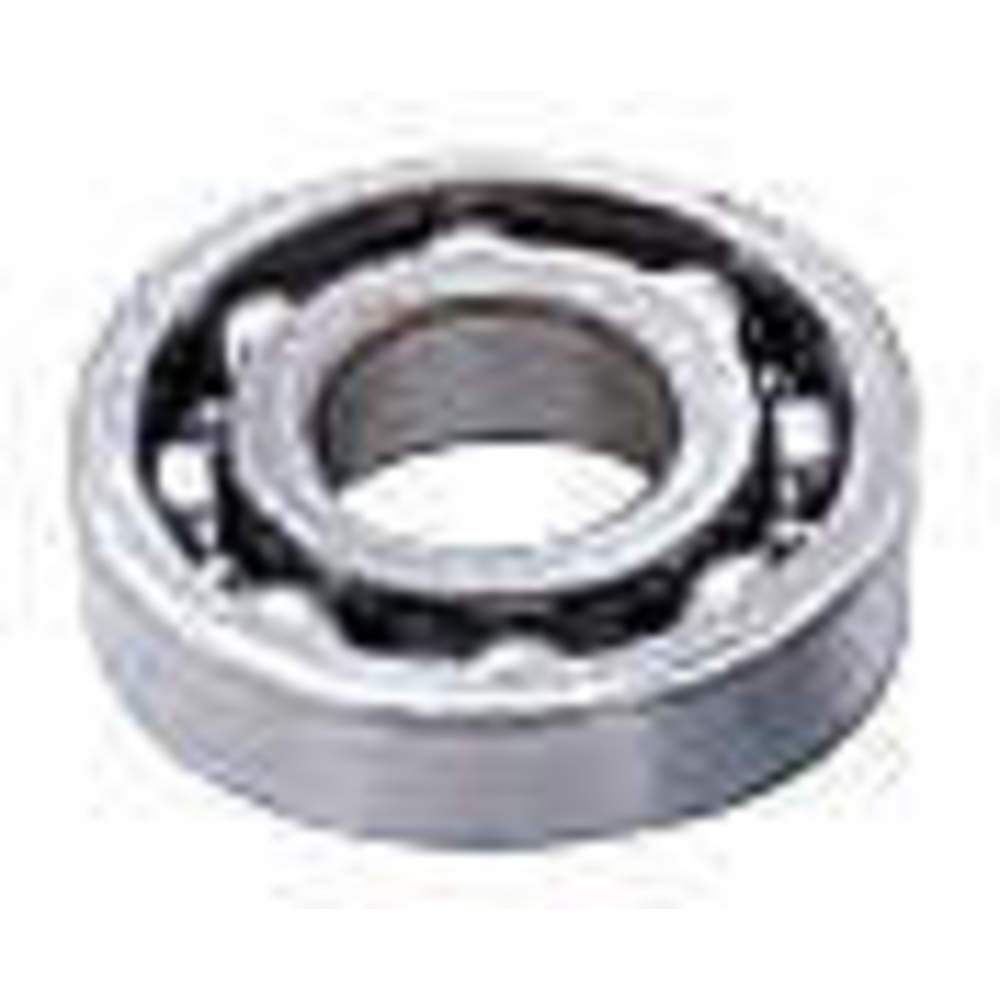

| 6000C3 | 10 mm | 8 mm | 26 mm | 29000 RPM | 1960N | 5050N | 0.3 mm | 1030 lbs. | €28.27 | |
| 6001JRXUC3 | 12 mm | 8 mm | 28 mm | 26000 RPM | 2390N | 5650N | 0.3 mm | 1150 lbs. | €31.97 | |
| 6002C3 | 15 mm | 9 mm | 32 mm | 22000 RPM | 2840N | 6200N | 0.3 mm | 1260 lbs. | €33.70 | |
| 6003C3 | 17 mm | 10 mm | 35 mm | 20000 RPM | 3350N | 7550N | 0.3 mm | 1530 lbs. | €44.79 |
