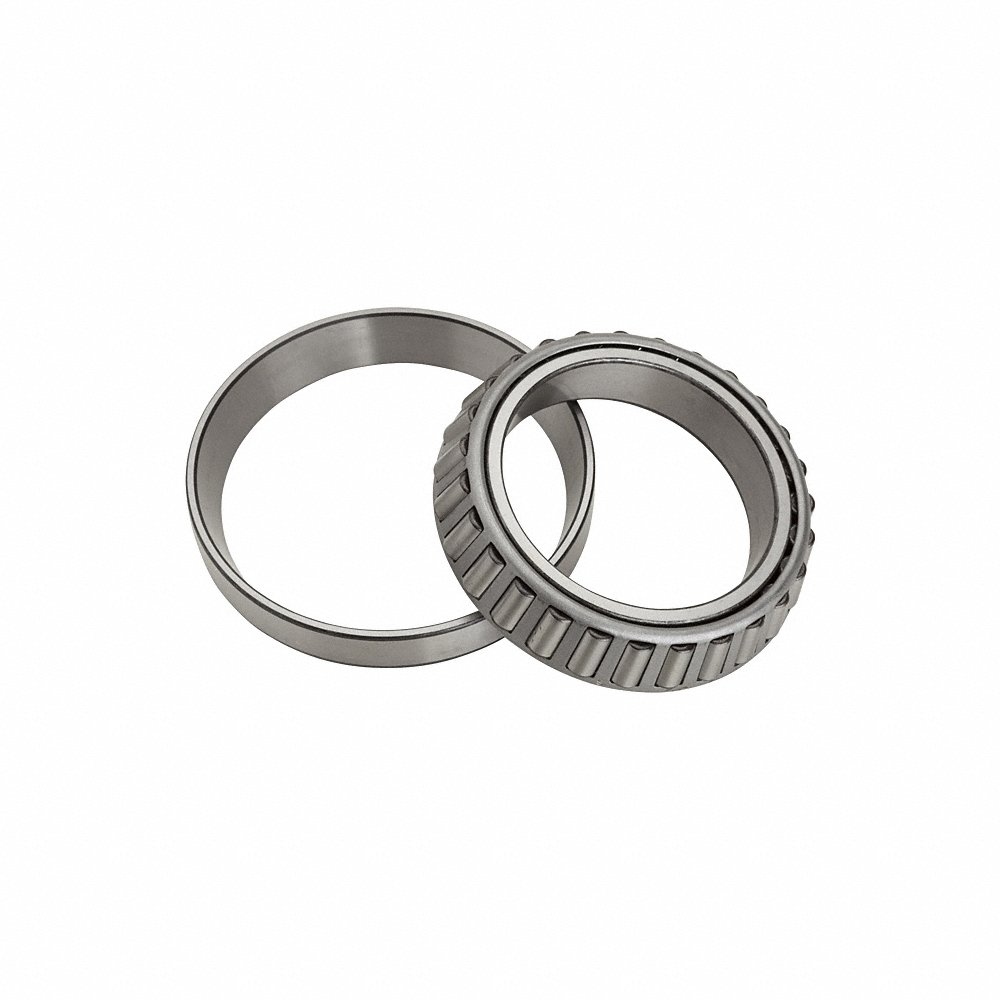

NTN 4T-749A/742 Tapered Roller Bearing Assy., 1.75
Item: DM7MKNModel: 4T-749A/742Cross Ref: 806AP4
7 In Stock
Ships within 2 days via
13.00% off
€455.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Abma Rating | Class 4 |
| Application | Forestry, Machinery, Mining, Various |
| Bearing Industry No. | 749A/742 |
| Bore Dia. | 3 1/4" |
| Bore Dia. Tolerance | 0" to 0.001" |
| Bore Type | Cylindrical |
| Cage Material | Pressed Steel |
| Cone Width | 1.837" |
| Cup Width | 1.437" |
| Flange Type | Non Flanged |
| Housing Fillet Radius | 0.13" |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Outside Dia. | 5 29/32" |
| Outside Dia. Tolerance | 0.001" to 0" |
| Overall Width | 1 3/4" |
| Ring Material | Carbon Steel |
| Ring Material Grade | Case Carburized Grade Steel |
| Shaft Fillet Radius | 0.14" |
| Static Radial Load Capacity | 93500 lbf. |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 17.78 |
| Country of Origin | JP |
