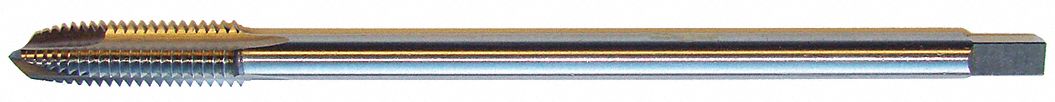

NORTH AMERICAN 17666 Hand Tap 3/8 inch UNC
Item: AG6PBGModel: 17666Cross Ref: 36UW08
7 In Stock
Ships within 2 days via
10.00% off
€235.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Tap |
| 55% Thread Drill Size | 8.4 mm |
| 65% Thread Drill Size | P |
| 75% Thread Drill Size | 5/16" |
| Class Of Fit | Class 2B |
| Drill Bit Size | 0.3144" |
| Extended Neck | Yes |
| Finish | Bright, Uncoated |
| List Number | 17666 |
| Material | High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 3 |
| Overall Length | 6" |
| Pitch Diameter Limits | 2B |
| Pitch Type | 16 |
| Shank Dia. | 3/16" |
| Shank Length | 4 3/4" |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.286" |
| Standards | Uscti |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Size | 3/8"-16 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 1 1/4" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5, 2B |
| Thread Size | 3/8"-16 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 16 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 0.97 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 0.97 |
| HS code | 8207403000 |
Product Variants
| Product | Model | Number Of Flutes | Thread Size | Thread Length | Overall Length | Thread Limit | 75% Thread Drill Size | Shank Dia. | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15869 | 4 | 3/8"-27 | 1 1/4" | 2 15/16" | H3 | - | 3/8" | NS | €86.98 | |
 |
16360 | 6 | 5/8"-24 | 1 3/4" | 3 25/32" | H5 | I | 15/32" | NEF | €128.30 | |
 |
20912 | 2 | M5 x 0.5 | 7/8" | 2 3/8" | D3 | #16 | 3/32" | Metric Fine | €84.49 | |
|
15132 | 2 | #6-32 | 11/16" | 2" | H11 | - | 9/64" | Coarse | €32.57 | |
|
15192 | 2 | #8-32 | 3/4" | 2 1/8" | H11 | - | 5/64" | Coarse | €33.10 | |
|
15216 | 2 | #8-40 | 3/4" | 2 1/8" | H2 | - | 5/64" | NS | €98.56 | |
|
15384 | 2 | #12-32 | 15/16" | 2 3/8" | H3 | - | 7/64" | NEF | €51.82 |
