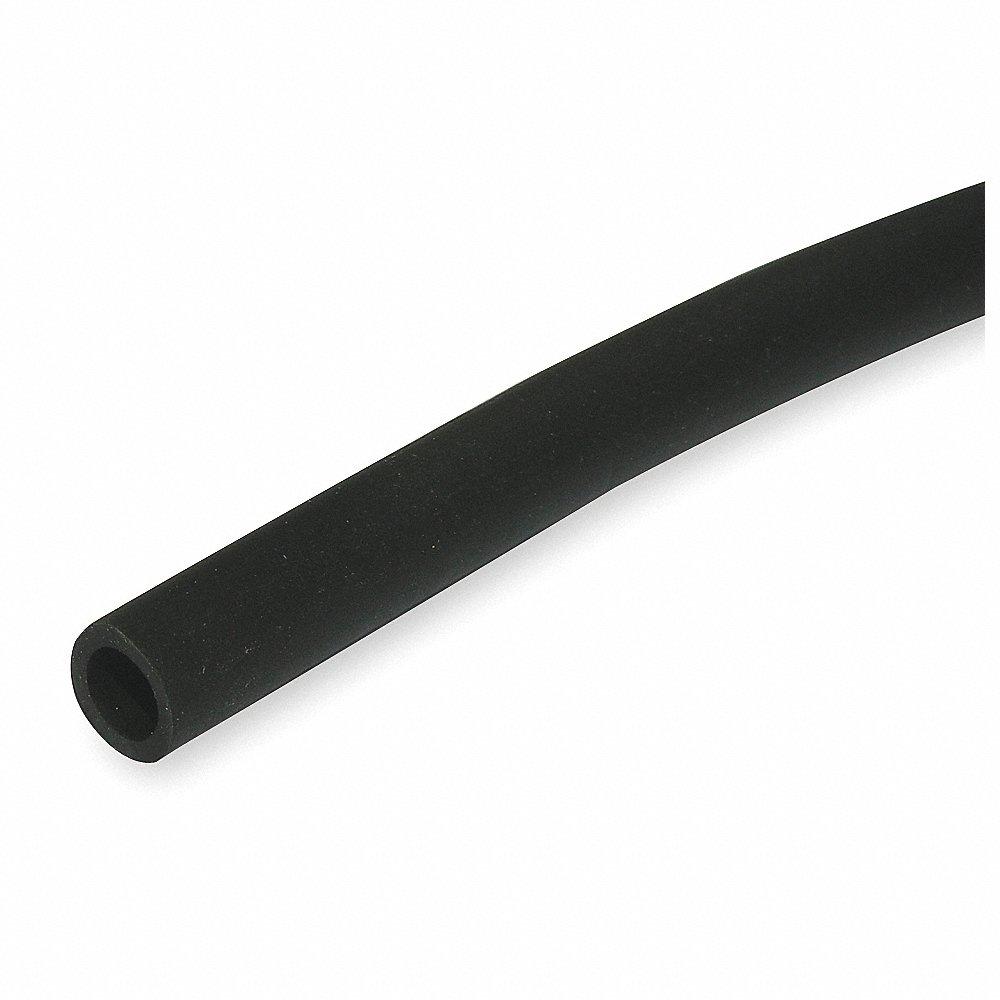

NORPRENE AFL00029 Tubing, Tygon A-60-G, Tpe, Black, 3/8 Inch Inside Dia
Item: CT4DQNModel: AFL00029Cross Ref: 2DCE3
7 In Stock
Ships within 2 days via
10.00% off
€328.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air, Chemicals, Steam, Water |
| Autoclavable | Yes |
| Bend Radius | 1 1/8" |
| Burst Pressure | 65 psi |
| Clarity | Opaque |
| Color | Black |
| Elongation | 375% |
| Features | Heat Sealable, Low Gas Permeability Versus Rubber Tubing |
| Fitting Compatibility | Barbed |
| Flexibility | Flexible |
| Flow Application | Caustic Chemical Dispensing, Cleaning Chemical Transfer, Glass And Window Wash Systems, Plating And Etching Chemicals, Soap And Disinfectant Dispensing, Vacuum Pumps |
| Food And Beverage Compatibility | Citric Acid, Distilled Water, Glycerin, Non-Potable Water, Salt Water, Vinegar |
| For Environment | Chemical |
| For Fluid Type | Inorganic Fluids |
| Hardness | Shore A 61 |
| Inside Dia. | 3/8" |
| Length | 50 ft. |
| Material | TPE |
| Material Trade Name | Tygon |
| Max. Operating Pressure | 13 psi @ 73°F |
| Max. Operating Temp. | 275°F |
| Maximum Operating Pressure | 13 psi @ 73掳F |
| Maximum Vacuum Pressure | 29.9 in. hg |
| Min. Operating Temp. | -75°F |
| Outside Dia. | 5/8" |
| Overall Length | 50 ft. |
| Peristaltic Pump Compatible | Yes |
| Reinforcement | Non Reinforced |
| Resistance Properties | Abrasion Resistant, Acid Resistant, Aging Resistant, Alkali Resistant, Crack Resistant, Flex Fatigue Resistant, Oil Resistant, Ozone Resistant, Tear Resistant,UVResistant |
| Stripe Color | No Stripe |
| Vacuum Rated | Yes |
| Wall Thickness | 0.13" |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Inside Dia. | Outside Dia. | Bend Radius | Maximum Vacuum Pressure | Max. Operating Pressure | Wall Thickness | Burst Pressure | Clarity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AFL00003 | 0.062" | 0.188" | 1/4" | 29.9 in. hg | 34 psi @ 73°F | 0.06" | 170 psi | Opaque | €90.28 | |
| AFL00037 | 1/2" | 0.688" | 2 1/4" | 20 in. hg | 8 psi @ 73°F | - | 40 psi | Opaque | €299.63 | |
| AFL00018 | 1/4" | 0.438" | 3/4" | 9 in. hg | 15 psi @ 73°F | - | 75 psi | Opaque | €189.55 | |
| AFL00019 | 1/4" | 1/2" | 3/4" | 29.9 in. hg | 19 psi @ 73°F | 0.13" | 95 psi | Opaque | €256.21 | |
| AFL00017 | 1/4" | 3/8" | 7/8" | 26 in. hg | 10 psi @ 73°F | 0.06" | 50 psi | Opaque | €106.98 | |
| AFL00007 | 1/8" | 1/4" | 1/2" | 29.9 in. hg | 19 psi @ 73°F | 0.06" | 95 psi | Opaque | €87.71 | |
| AFL00008 | 1/8" | 3/8" | 1/2" | 29.9 in. hg | 34 psi @ 73°F | 0.13" | 170 psi | Opaque | €169.53 |
