NORGREN M02670403 Swivel Tee Adapter Push Inch
Item: AB2FCEModel: M02670403Cross Ref: 1LRF8
7 In Stock
Ships within 2 days via
10.00% off
€104.59 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swivel Tee |
| Application | Air |
| Basic Material | Plastic |
| Body Material | Polybutylene |
| Color | Gray |
| Compatible Tube Material | Nylon, Polyurethane |
| Connection Type | Tube x MNPT |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass, PBT |
| Fitting Side A Connection Type | Tube |
| Fitting Side A Tube Outer Diameter | 4 mm |
| Fitting Side B Connection Type | Tube |
| Fitting Side B Tube Outer Diameter | 4 mm |
| Fitting Side C Connection Type | MNPT |
| Fitting Side C Pipe Size | 5/32" |
| Hex Size | 8 mm |
| Includes Pre-applied Thread Sealant | Yes |
| Max. Pressure | 150 psi |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 32°F |
| Overall Length | 28.5 mm |
| Pipe Size | 3 mm |
| Release Ring Color | Gray |
| Release Ring Material | Stainless Steel |
| Release Type | Button |
| Resistance Properties | Contamination Resistant, Corrosion Resistant, Impact Resistant |
| Specific Fitting Shape | Tee |
| System Of Measurement | Imperial/Metric |
| Temp. Range | +32°F to +140°F |
| Thread Sealant Type | Chemitech G |
| Tube Size | 4 mm |
| Vacuum Rating | 750 mm hg |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 10.92 |
| HS code | 3917400090 |
| Country of Origin | KR |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Hex Size | Fitting Side B Tube Outer Diameter | Vacuum Rating | Fitting Side C Connection Type | Thread Sealant Type | Fitting Side C Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

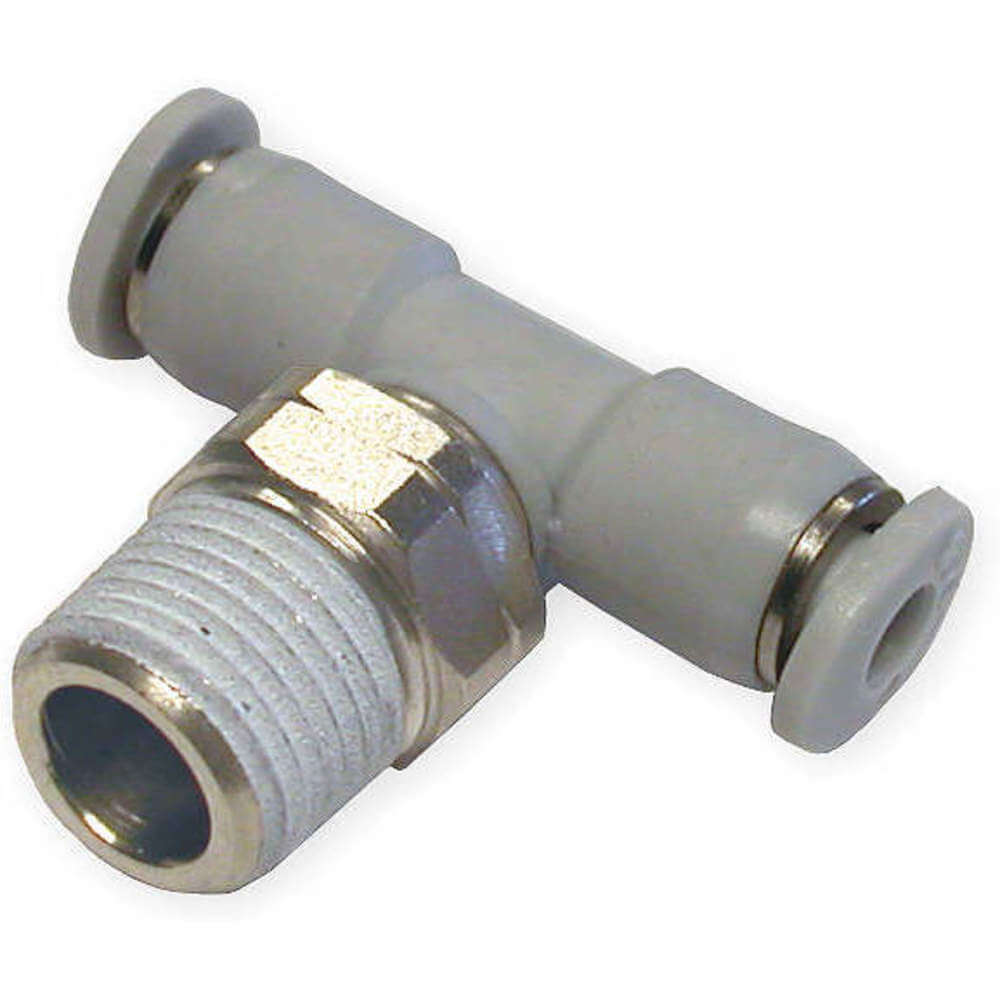

| M01670618 | Tube | Tube | 14 mm | 6 mm | 750 mm hg | Tube | Chemitech G | - | 10 | €117.42 | |
| M02670405 | Tube | Tube | 8 mm | 4 mm | 750 mm hg | MNPT | Chemitech G | 7/32" | 10 | €116.22 | |
| M02670605 | Tube | Tube | 8 mm | 6 mm | 750 mm hg | MNPT | Chemitech G | 3/16" | 10 | €138.93 | |

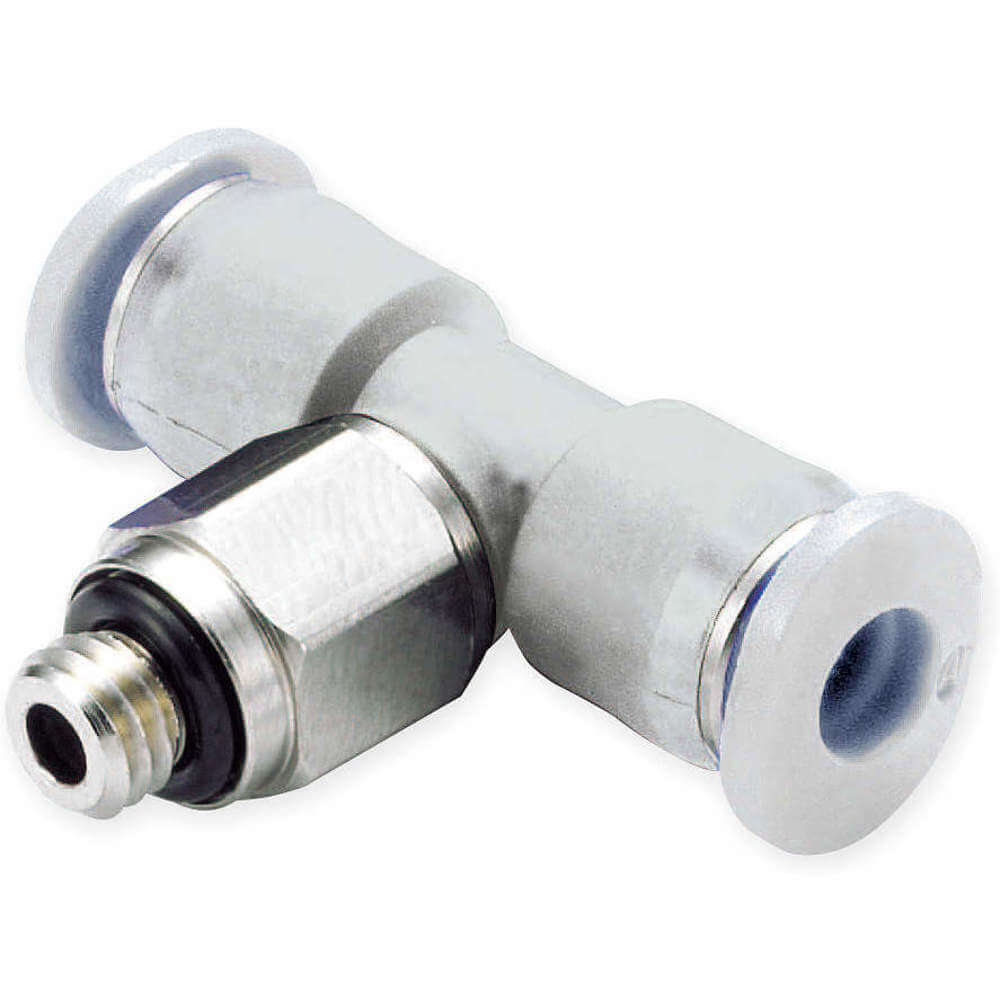

| M24670110 | UNF | Tube | 0.312" | 1/8" | 29.5 in. hg | MNPT | Chemiseal G 175 | 1/8" | 10 | €83.50 | |
| M24670118 | Push-To-Connect | Push-To-Connect | 0.438" | 1/8" | 29.5 in. hg | MNPT | Chemiseal G 175 | 1/8" | 10 | €70.70 | |
| M24670218 | Push-To-Connect | Push-To-Connect | 0.438" | 5/32" | 29.5 in. hg | MNPT | Chemiseal G 175 | 5/32" | 10 | €84.77 | |
| M24670410 | UNF | Tube | 0.312" | 1/4" | 29.5 in. hg | MNPT | Chemiseal G 175 | 1/4" | 10 | €88.96 |
