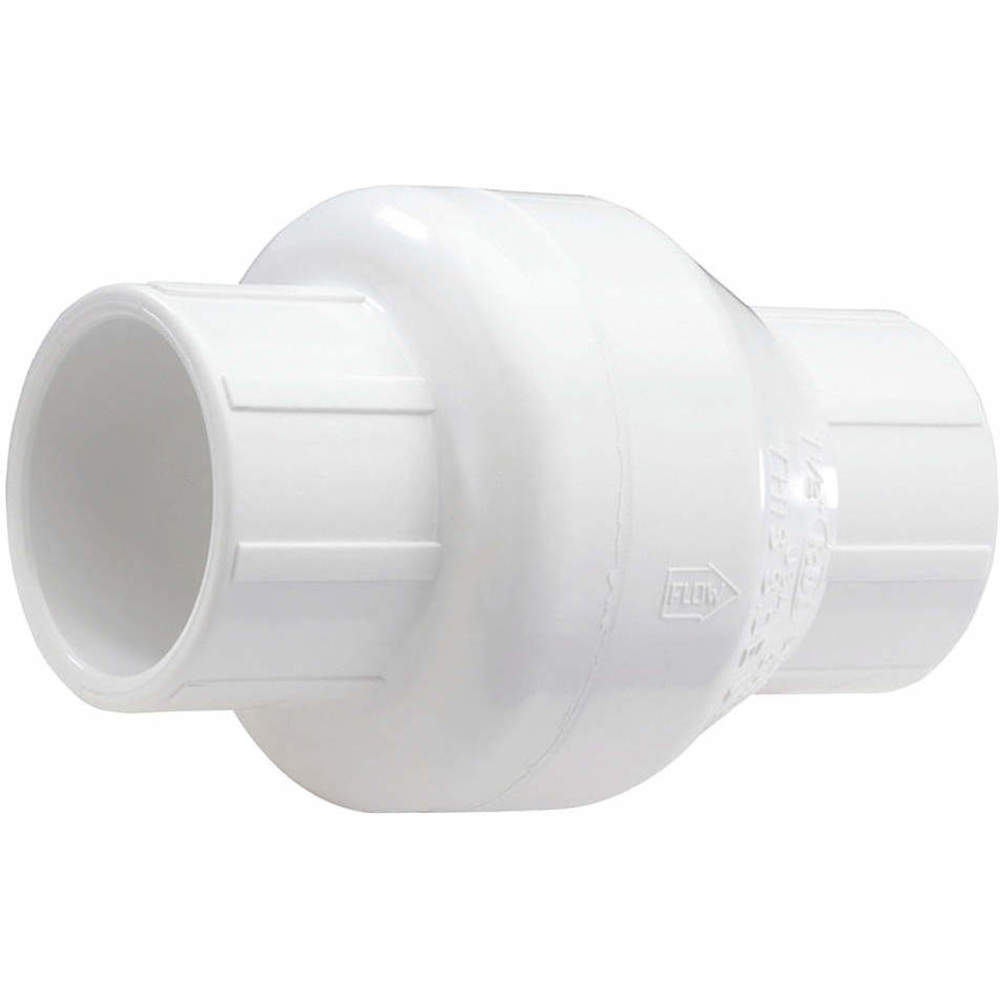

NDS DRAINAGE 1520-07F Swing Check Valve PVC 3/4 Inch FNPT
Item: AJ2HBUModel: 1520-07FCross Ref: 4GTV8
7 In Stock
Ships within 2 days via
€14.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swing Check Valve |
| 3-a Certified | Not Rated |
| Application-valves | General Purpose |
| Body Material | PVC |
| Check Mechanism | Swing |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type | FIP x FIP |
| Connection Type-side 1 | IPS |
| Connection Type-side 2 | IPS |
| Cracking Pressure | 0.25 psi |
| Flow Design | Single |
| Flow Rate | 12.47 GPM |
| For Media | Water |
| Full Flow-valves | Yes |
| Material | PVC |
| Max. Operating Temp. | 140°F |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure-steam | Not Rated |
| Max. Steam Pressure-valves | Not Rated |
| Max. Temp. | 140°F |
| Max. Water Pressure | 150 psi |
| Media Temp. | 14°F to 140°F |
| Min. Operating Temp. | 14°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation-check Valves | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Height | 2.906" |
| Overall Length | 3.5" |
| Pipe Size | 3/4" |
| Seal Material | EPDM |
| Seat Material | PVC |
| Silent Check | Standard |
| Standards | Nsf/Ansi 372 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 7.37 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Connection Type | Overall Height | Flow Rate | Body Material | Max. Temp. | Seat Material | Cracking Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1520-15 | 1 1/2" | IPS x IPS | 3 1/2" | 47.59 GPM | PVC | 140°F | PVC | 0.25 psi | €20.56 | |
| 1520-20 | 2" | IPS x IPS | 4.297" | 78.44 GPM | PVC | 140°F | PVC | 0.25 psi | €16.64 | |
| 1520-05F | 1/2" | FIP x FIP | 2.906" | 4.46 GPM | PVC | 140°F | PVC | 0.25 psi | €13.92 | |
| 1520-10F | 1" | FIP x FIP | 2.906" | 20.2 GPM | PVC | 140°F | PVC | 0.25 psi | €18.29 | |
| 1520-15F | 1 1/2" | FIP x FIP | 3 1/2" | 47.59 GPM | PVC | 140°F | PVC | 0.25 psi | €25.62 |
