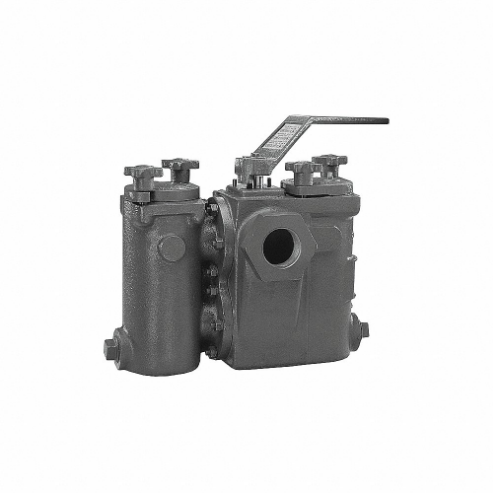

MUELLER STEAM 792S-HH 304SS Perf 1/16 1 1/4 M6700683 Basket Strainer, 1.25 Inch Size, NPT, 1/16 Inch Mesh, Stainless Steel
Item: AD2FFPModel: 792S-HH 304SS Perf 1/16 1 1/4Cross Ref: 3NXJ3 / M6700683
In Stock
Get it by Wednesday, Dec 17
10.00% off
€13,565.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Basket Strainer |
| Application | Chemical Processing, Fire Lines, Fluid Handling, Fuel Lines, Lubrication |
| Blow Off Port | 1 1/4" |
| Blow-off Port (npt) | 1-1/4" |
| Body Material | Stainless Steel |
| Body Material Grade | Grade ASTM A351 CF8M |
| Class | Class 150 |
| Connection | Threaded |
| Connection Size | 1 1/4" |
| Connection Type | NPT |
| Cover Type | Knob |
| Drain Plug Size | 1 1/4" |
| Flange Type | Class 150 |
| For Use With | Water |
| Gasket Material | Viton |
| Grade | 304 |
| Height | 11" |
| Includes Screen | Yes |
| Material | Stainless Steel |
| Max. Pressure | 275 psi @ -20°F To 100°F |
| Maximum Pressure | 195 psi @ 400°F, 275 psi @ -20 to +100°F |
| Maximum Pressure At 100°f | 275 psi |
| Maximum Temperature | 100°F |
| Mesh | 0.062" |
| Mesh Number | 0.06" |
| Mesh Size | 1/16" |
| Minimum Temperature | -20°F |
| Overall Height | 11 1/8" |
| Pipe Size | 1 1/4" |
| Screen Area | 0.06 sq. in. |
| Screen Material | Stainless Steel |
| Screen Material Grade | Grade 304 |
| Screen Perforation Size | 0.062" |
| Series | 792SH Series |
| Size | 1 1/4" |
| Strainer Style | Dual |
| Strainer Type | Perforated |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 27.35 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| HS code | 8421290065 |
| Country of Origin | CN |
Product Variants
| Product | Model | Connection Size | Overall Height | Body Material | Size | Blow Off Port | Drain Plug Size | Connection Type | Strainer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
792S-HH 304SS Perf 1/16 3/4 | 3/4" | 9 9/16" | Stainless Steel | 3/4" | 3/4" | 3/4" | NPT | Perforated | €9,677.36 | |
|
792S-HH 304SS Perf 1/16 1 | 1" | 9 9/16" | Stainless Steel | 1" | 3/4" | 3/4" | NPT | Perforated | €9,040.27 | |
|
792S-HH 304SS Perf 1/16 1 1/2 | 1 1/2" | 11 1/8" | Stainless Steel | - | 1 1/4" | 1 1/4" | NPT | Perforated | €15,826.16 | |
|
792S-HH 304SS Perf 1/16 2 | 2" | 15 5/16" | Stainless Steel | 2" | 1 1/4" | 1 1/4" | NPT | Perforated | €21,313.43 | |
 |
792S-DH 304SS Perf 1/16 3/4 | - | - | Carbon Steel | 3/4" | - | - | NPT | - | - | RFQ
|
|
792S-DH 304SS Perf 1/16 1 | - | - | Carbon Steel | 1" | - | - | NPT | - | - | RFQ
|
|
792S-DH 304SS Perf 1/16 1 1/4 | - | - | Carbon Steel | 1 1/4" | - | - | NPT | - | - | RFQ
|
