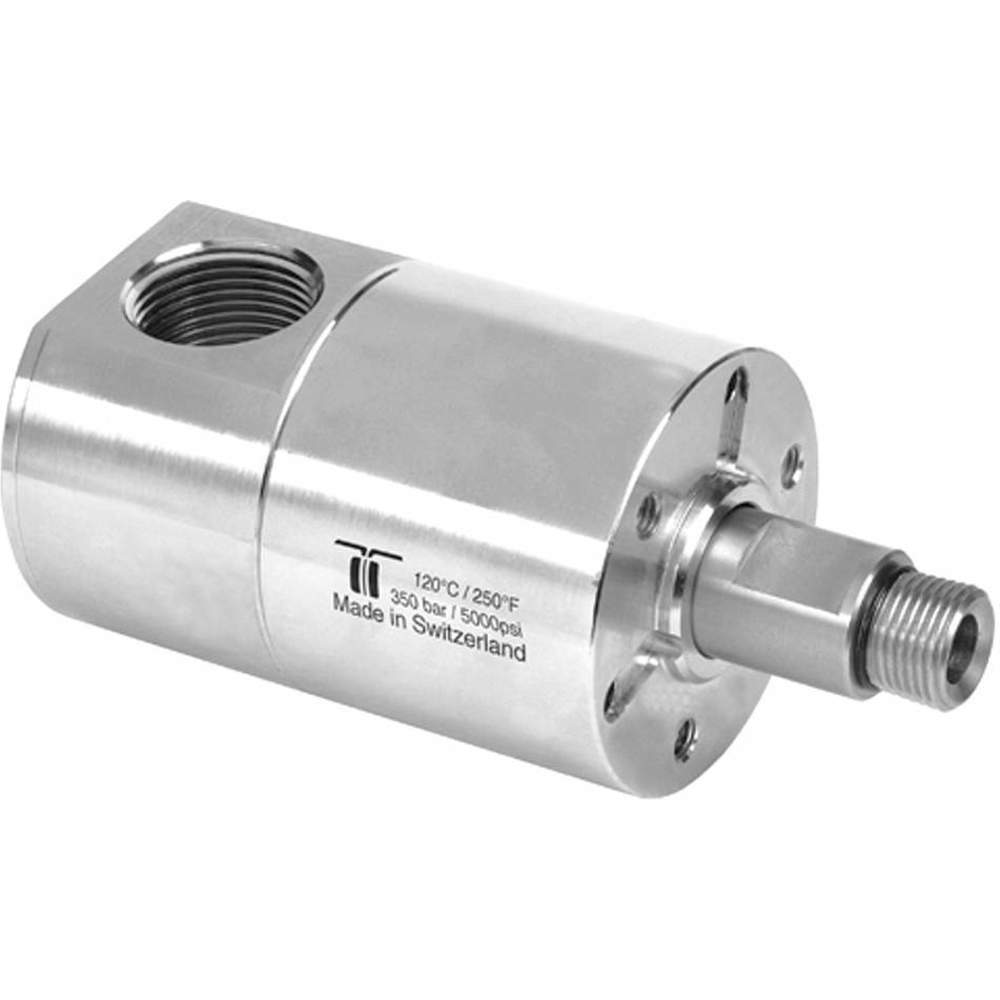

MOSMATIC 59.902 Rotary Union Dyt 90 Nptf x Male 3/4 x 3/8in
Item: AD3MENModel: 59.902Cross Ref: 40E982
7 In Stock
Ships within 2 days via
10.00% off
€913.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40E982 |
| Bearing Type | Radial Ball Bearings, Thrust Ball Bearings |
| Body Dia. | 2 9/25" |
| Body Diameter | 2.36" |
| Connection Type | NPTF |
| Fitting Material | Stainless Steel |
| Fitting Material Grade | Grade 304 |
| Fitting Type | Straight |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Pressure | 5000 psi |
| Max. Temp. | 250°F |
| Maximum Speed | 2000 RPM |
| Number Of Passages | 1 |
| Overall Length | 5.08" |
| Rotating Shaft Connection Type | G M |
| Rotating Shaft Thread Size | 3/8" |
| Rotation | Self Rotating |
| Seal Material | Carbide |
| Shaft Thread Length | 15/32" |
| Standards | Iso 9001 |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/4" |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 1.45 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 6.35 |
| HS code | 7412200035 |
| Country of Origin | CH |
