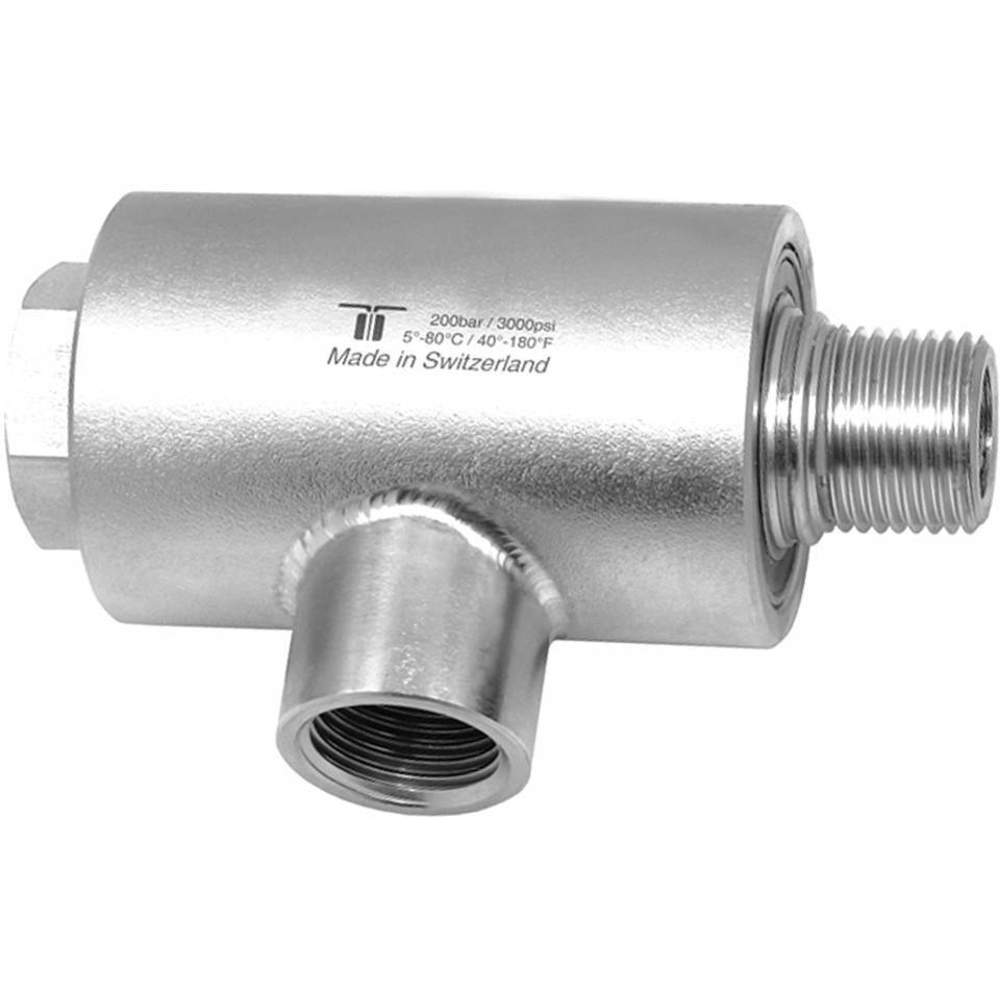

MOSMATIC 41.361 Rotary Union Wdrs Swivel Nptf x Nptm 3/4in
Item: AD3MFTModel: 41.361Cross Ref: 40F010
7 In Stock
Ships within 2 days via
13.00% off
€667.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Union |
| Bearing Type | Radial Ball Bearing |
| Body Dia. | 1.97" |
| Connection Type | NPTF x NPTM |
| Fitting Material | Stainless Steel |
| Fitting Material Grade | Grade 304 |
| Fitting Type | Elbow |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 150 psi to 3000 psi |
| Max. Speed | 130 RPM |
| Max. Temp. | +40°F to +180°F |
| Min. Operating Temp. | 40°F |
| No. Of Passages | 1 |
| Overall Length | 4.8" |
| Rotating Shaft Connection Type | NPTM |
| Rotating Shaft Thread Size | 3/4" |
| Rotation | Manual Rotation |
| Seal Material | Nitrile Rubber |
| Shaft Thread Length | 5/8" |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/4" |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 1.18 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 5.59 |
| HS code | 7412200035 |
| Country of Origin | CH |
