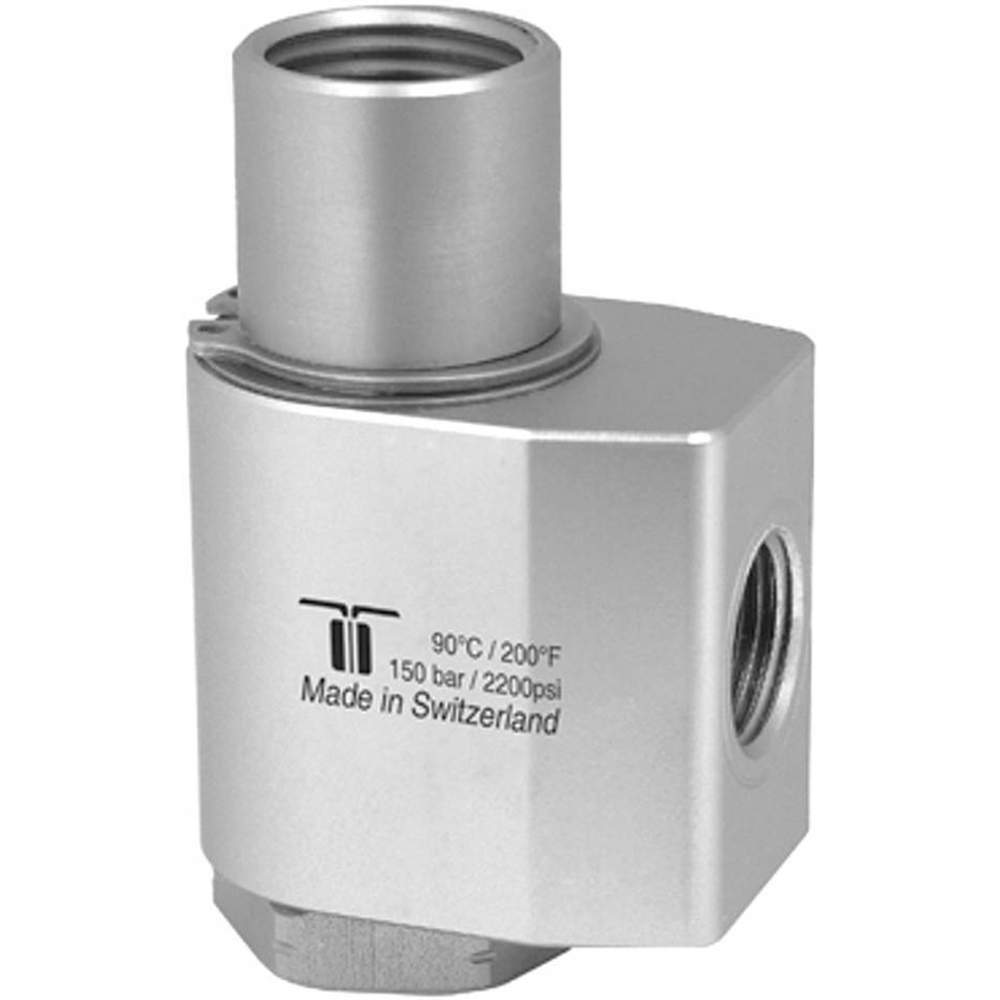

MOSMATIC 40.223 Rotary Union Wdg Swivel Nptf 3/8 x 1/2in
Item: AD3MFKModel: 40.223Cross Ref: 40F003
7 In Stock
Ships within 2 days via
10.00% off
€196.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40F003 |
| Bearing Type | Slide Bearing |
| Body Dia. | 1.26" |
| Body Diameter | 1.77" |
| Connection Type | NPTF x NPTM |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Elbow |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Temp. | +200°F to +250°F |
| Maximum Operating Temperature | 200°F |
| Maximum Speed | 30 RPM |
| Number Of Passages | 1 |
| Overall Length | 1.77" |
| Overall Width | 1.26" |
| Rotating Shaft Connection Type | NPTF |
| Rotating Shaft Thread Size | 1/2" |
| Rotation | Manual Rotation |
| Seal Material | Nitrile Rubber |
| Standards | Iso 9001 |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/8" |
| Temp. Range | +200°F to +250°F |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 3.81 |
| HS code | 7412200035 |
| Country of Origin | CH |
