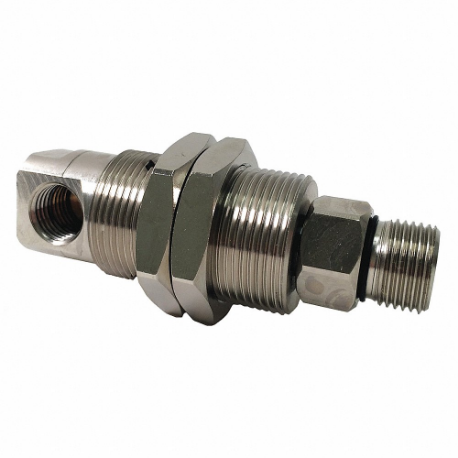

MOSMATIC 37.363 Rotary Union, Straight, Nickel-Plated Brass, 1 Passages, 3/8 Inch G M Rotating Shaft
Item: CT3VGYModel: 37.363Cross Ref: 45NF37
7 In Stock
Ships within 2 days via
13.00% off
€305.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Union |
| Body Dia. | 1.34" |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow Direction | Single Flow |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Max. Operating Temp. | 250°F |
| Max. Speed | 2000 RPM |
| Min. Operating Temp. | 40°F |
| No. Of Passages | 1 |
| Resistance Properties | Corrosion Resistant |
| Rotating Shaft Connection Type | G M |
| Rotating Shaft Thread Size | 3/8" |
| Seal Material | Ceramic |
| Shaft Thread Length | 7/16" |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 1/4" |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Dia. | Fitting Material | Stationary Port Thread Size | Fitting Type | Rotating Shaft Thread Size | Shaft Thread Length | Stationary Port Connection Type | Rotating Shaft Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30.051 | 0.86" | Brass | 1/4" | Straight | 1/4" | 43/64" | NPTF | NPTM | €137.39 | |
 |
30.053 | 0.86" | Brass | 1/4" | Straight | 3/8" | 3/4" | NPTF | NPTM | €141.01 | |
 |
30.153 | 0.98" | Brass | 3/8" | Straight | 3/8" | 3/4" | NPTF | NPTM | €137.39 | |
 |
30.154 | 0.98" | Brass | 3/8" | Straight | 3/8" | 7/8" | NPTF | NPTF | €137.39 | |
 |
30.052 | 0.86" | Brass | 1/4" | Straight | 1/4" | 3/4" | NPTF | NPTF | €141.01 | |
 |
41.261 | 1.77" | Stainless Steel | 1/2" | Elbow | 1/2" | 19/32" | NPTF | NPTM | €621.07 | |
 |
41.920 | 1.77" | Stainless Steel | 1/2" | Elbow | 1/2" | 19/32" | NPTF | NPTM | €706.30 |
