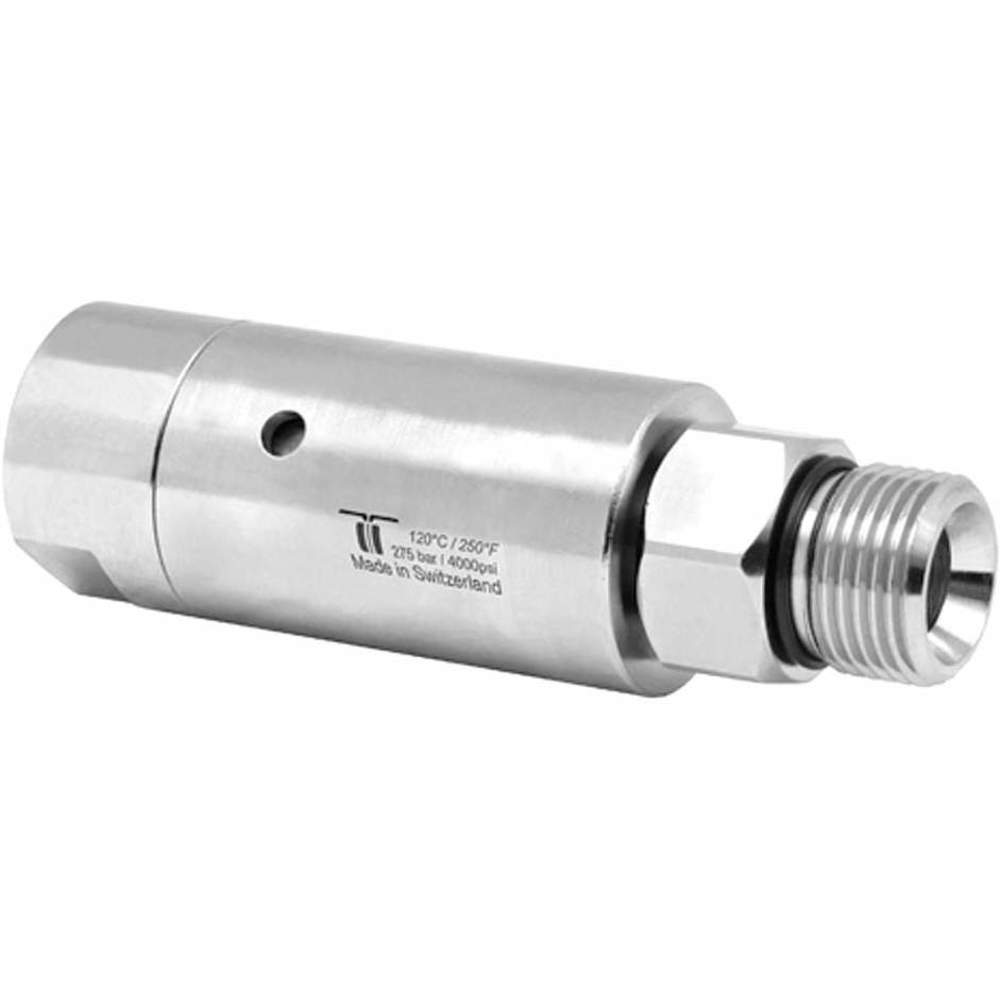

MOSMATIC 36.163 Rotary Union Dxl Swivel Nptf x Male 3/8in
Item: AD3MEFModel: 36.163Cross Ref: 40E975
7 In Stock
Ships within 2 days via
10.00% off
€353.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40E975 |
| Bearing Type | Radial Ball Bearings, Thrust Ball Bearings |
| Body Dia. | 1.1" |
| Body Diameter | 0.98" |
| Connection Type | NPTF x NPTM |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Maximum Operating Temperature | 250°F |
| Maximum Speed | 2000 RPM |
| Minimum Operating Temperature | 40°F |
| Number Of Passages | 1 |
| Overall Length | 3.14" |
| Rotating Shaft Connection Type | G M |
| Rotating Shaft Thread Size | 3/8" |
| Rotation | Self Rotating |
| Seal Material | Ceramic |
| Shaft Thread Length | 25/64" |
| Standards | Iso 9001 |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/8" |
| Temp. Range | +40°F to +250°F |
| Thread Rotation | Right Hand |
| Type | DXL High RPM Triple Bearing System Swivel, Ceramic Seal |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.79 |
| HS code | 7412200035 |
| Country of Origin | CH |
