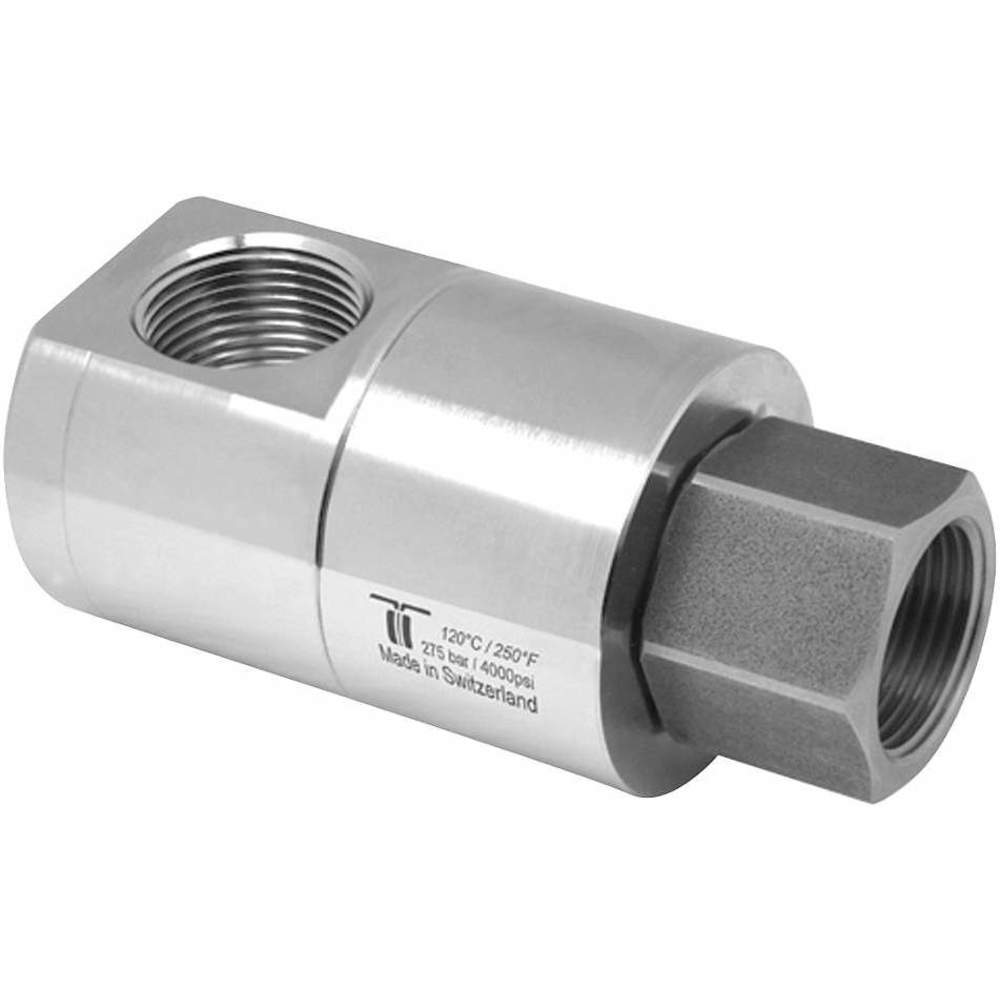

MOSMATIC 34.883 Rotary Union Dge 90 D Swivel Nptf 1/2in
Item: AD3MFQModel: 34.883Cross Ref: 40F008
7 In Stock
Ships within 2 days via
10.00% off
€298.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40F008 |
| Bearing Type | Thrust Ball Bearings |
| Body Dia. | 1.65" |
| Connection Type | NPTF x NPTM |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Pressure | 4000 psi |
| Max. Temp. | 250°F |
| Maximum Speed | 30 RPM |
| Number Of Passages | 1 |
| Overall Length | 3.58" |
| Rotating Shaft Connection Type | NPTF |
| Rotating Shaft Thread Size | 1/2" |
| Rotation | Manual Rotation |
| Seal Material | Nitrile Rubber |
| Shaft Thread Length | 1 1/16" |
| Standards | Iso 9001 |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 1/2" |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 10.41 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 6.1 |
| HS code | 7412200035 |
| Country of Origin | CH |
Product Variants
| Product | Model | Body Dia. | Fitting Type | Rotating Shaft Connection Type | Rotating Shaft Thread Size | Stationary Port Connection Type | Stationary Port Thread Size | Overall Length | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
70.152 | 1.34" | Straight | NPTF | 1/4" | FNPT | M22 x 1.5 | 1.96" | Thrust Ball Bearings | €83.94 | |
 |
70.154 | 1.34" | Straight | NPTF | 3/8" | FNPT | M22 x 1.5 | 2.08" | Thrust Ball Bearings | €83.94 | |
 |
32.552 | 0.94" | Straight | NPTF | 1/4" | NPTM | 1/4" | 2.6" | Thrust Ball Bearings | €89.68 | |
 |
32.562 | 0.94" | Straight | NPTF | 1/4" | NPTM | 3/8" | 2.63" | Thrust Ball Bearings | €93.52 | |
|
32.564 | 0.94" | Straight | NPTF | 3/8" | NPTM | 3/8" | 2.75" | Thrust Ball Bearings | €89.68 | |
 |
32.569 | 0.94" | Straight | NPTF | 3/8" | NPTF | 3/8" | 2.87" | Thrust Ball Bearings | €90.16 | |
 |
40.019 | 1.26" | Elbow | G M | 1/4" | NPTF | 3/8" | 1.77" | Slide Bearing | €161.07 |
