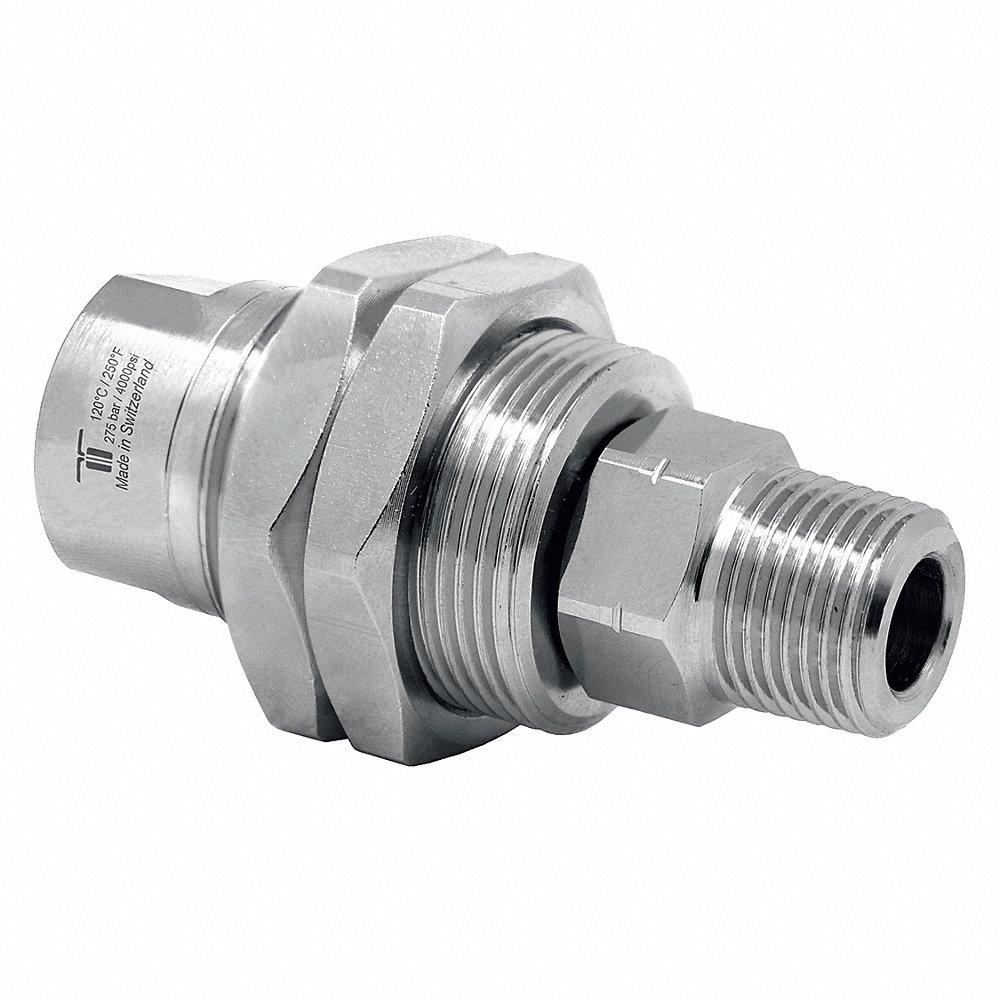

MOSMATIC 33.153 Rotary Union, Straight, Nickel-Plated Brass, 1 Passages, 3/8 Inch Nptm Rotating Shaft
Item: CT3VHMModel: 33.153Cross Ref: 45NF30
7 In Stock
Ships within 2 days via
10.00% off
€231.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Union |
| Bearing Type | Radial Ball Bearings, Thrust Ball Bearings |
| Body Dia. | 1.34" |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow Direction | Single Flow |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Max. Speed | 1000 RPM |
| Maximum Operating Temperature | 250°F |
| Number Of Passages | 1 |
| Overall Length | 2.59" |
| Resistance Properties | Corrosion Resistant |
| Rotating Shaft Connection Type | NPTM |
| Rotating Shaft Thread Size | 3/8" |
| Seal Material | Nitrile Rubber |
| Shaft Thread Length | 15/32" |
| Standards | Iso 9001 |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/8" |
| Thread Rotation | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Fitting Material | Body Dia. | Stationary Port Thread Size | Overall Length | Fitting Type | Rotating Shaft Thread Size | Seal Material | Stationary Port Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30.051 | Brass | 0.86" | 1/4" | 2.32" | Straight | 1/4" | Nitrile Rubber | NPTF | €170.59 | |
 |
30.053 | Brass | 0.86" | 1/4" | 2.32" | Straight | 3/8" | Nitrile Rubber | NPTF | €171.47 | |
 |
30.153 | Brass | 0.98" | 3/8" | 2.36" | Straight | 3/8" | Nitrile Rubber | NPTF | €165.92 | |
 |
30.154 | Brass | 0.98" | 3/8" | 2.63" | Straight | 3/8" | Nitrile Rubber | NPTF | €171.47 | |
 |
30.052 | Brass | 0.86" | 1/4" | 2.52" | Straight | 1/4" | Nitrile Rubber | NPTF | €171.47 | |
 |
41.261 | Stainless Steel | 1.77" | 1/2" | 4.33" | Elbow | 1/2" | Nitrile Rubber | NPTF | €757.15 | |
 |
41.920 | Stainless Steel | 1.77" | 1/2" | 0.63" | Elbow | 1/2" | Nitrile Rubber | NPTF | €833.89 |
