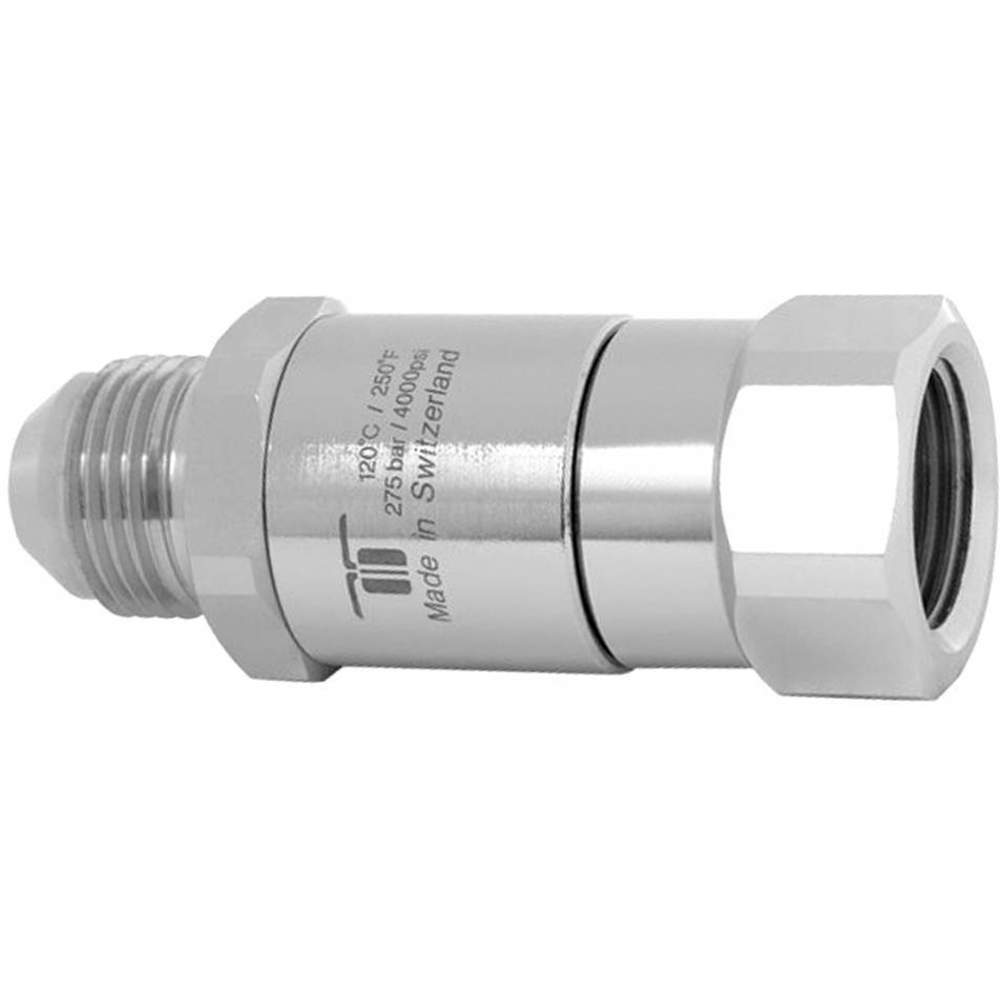

MOSMATIC 32.926 Rotary Union Dgv Jic M x Jic F 3/4 x 3/4in
Item: AD3MFGModel: 32.926Cross Ref: 40E999
7 In Stock
Ships within 2 days via
10.00% off
€118.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40E999 |
| Bearing Type | Thrust Ball Bearings |
| Body Dia. | 0.94" |
| Body Diameter | 25.4 mm |
| Connection Type | NPTM |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Temp. | 250°F |
| Maximum Speed | 30 RPM |
| Number Of Passages | 1 |
| Overall Length | 2.71" |
| Resistance Properties | Corrosion Resistant |
| Rotating Shaft Connection Type | JIC F |
| Rotating Shaft Thread Size | 3/4" |
| Rotation | Manual Rotation |
| Seal Material | Nitrile Rubber |
| Shaft Thread Length | 1" |
| Standards | Iso 9001 |
| Stationary Port Connection Type | JIC M |
| Stationary Port Thread Size | 3/8" |
| Thread Rotation | Right Hand |
| Type | DGV Inline Single Bearing System, Live, Swivel, O-Ring Seal |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.54 |
| HS code | 7412200035 |
| Country of Origin | US |
