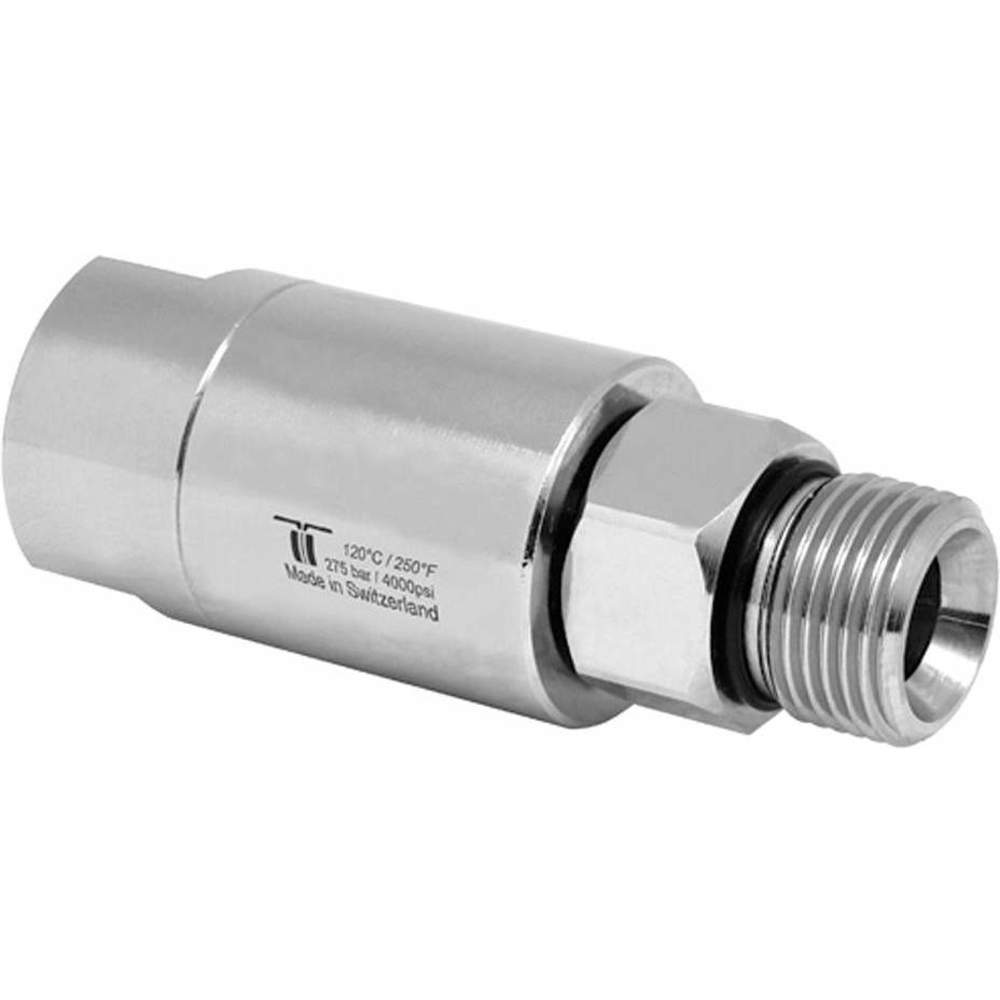

MOSMATIC 31.163 Rotary Union Dgl Swivel Nptf x Nptm 3/8in
Item: AD3MECModel: 31.163Cross Ref: 40E972
7 In Stock
Ships within 2 days via
13.00% off
€148.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 40E972 |
| Bearing Type | Radial Ball Bearings, Thrust Ball Bearings |
| Body Dia. | 0.98" , 1.1" |
| Connection Type | NPTF x NPTM |
| Fitting Material | Brass |
| Fitting Material Finish | Nickel Plated |
| Fitting Type | Straight |
| Flow | Single |
| Flow Direction | Single Flow |
| Flow Type | Single |
| Internal Fitting Material | Stainless Steel |
| Internal Fitting Material Grade | Grade 304 |
| Internal Material | Stainless Steel |
| Internal Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Operating Temp. | 250°F |
| Max. Speed | 1000 RPM |
| No. Of Passages | 1 |
| Overall Length | 2.59" |
| Resistance Properties | Corrosion Resistant |
| Rotating Shaft Connection Type | G M |
| Rotating Shaft Thread Size | 3/8" |
| Seal Material | Nitrile Rubber |
| Shaft Thread Length | 15/32" |
| Stationary Port Connection Type | NPTF |
| Stationary Port Thread Size | 3/8" |
| Thread Rotation | Right Hand |
| Type | DGL High RPM, Triple Bearing System Swivel, O-Ring Seal |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.79 |
| HS code | 7412200035 |
| Country of Origin | CH |
